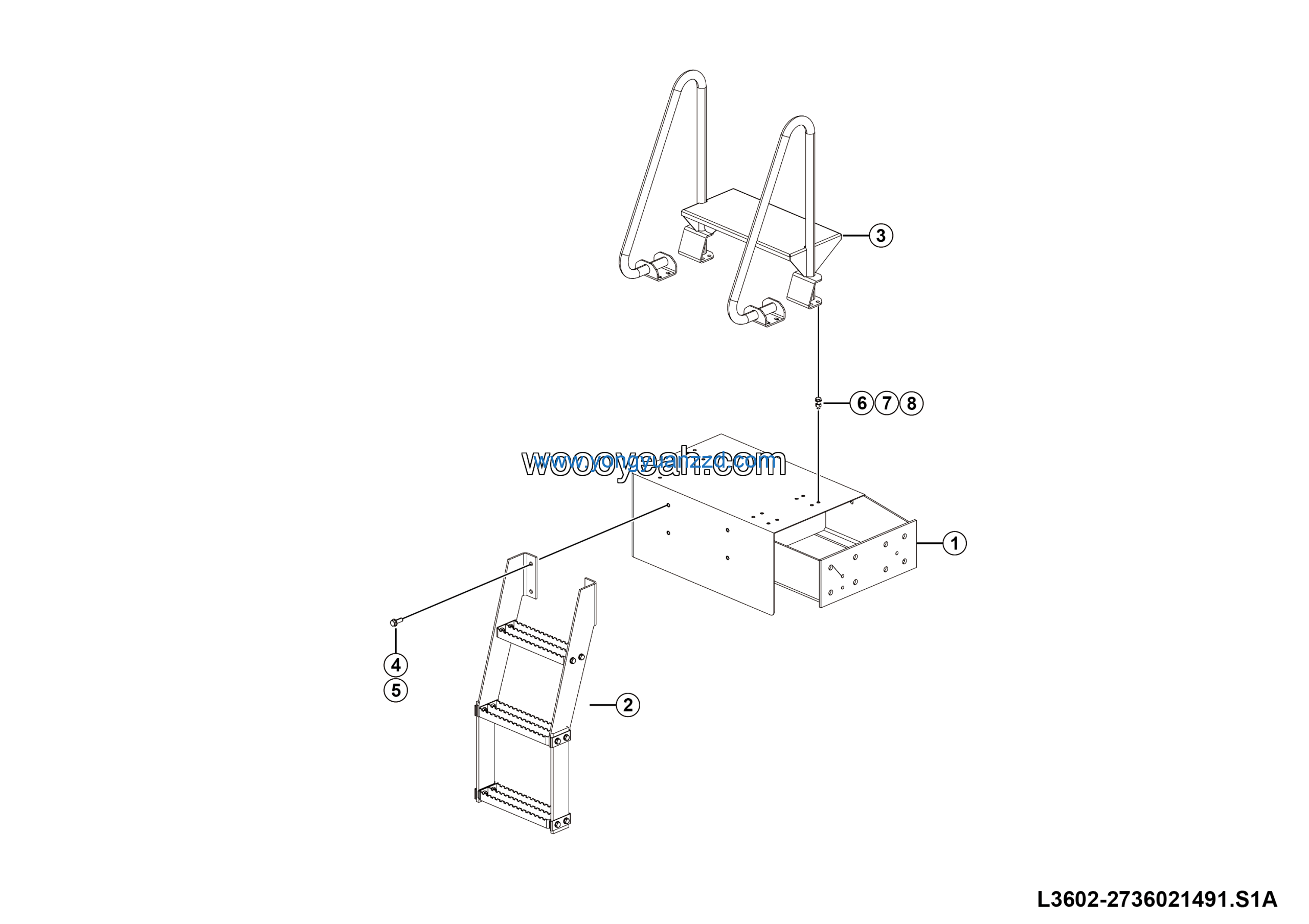

LGMG CMT96A 2025 – Rh ladder assy – L3602-2736021491.S1A
Category: 2025 > CMT96A > C096AY3E0A006
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Right ladder platform weldment | 27360171581 | 1 |
| 2 | Boarding ladder assembly | 27360134841 | 1 |
| 3 | Ladder wldmt | 27360188231 | 1 |
| 4 | Bolt GB5783-M12*35EpZn-8.8 | 4011000090 | 4 |
| 5 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 6 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 16 |
| 7 | Washer GB97.1-10EpZn-300HV | 4015000162 | 16 |
| 8 | Nut GB6170-M10EpZn-8 | 4013000007 | 16 |
