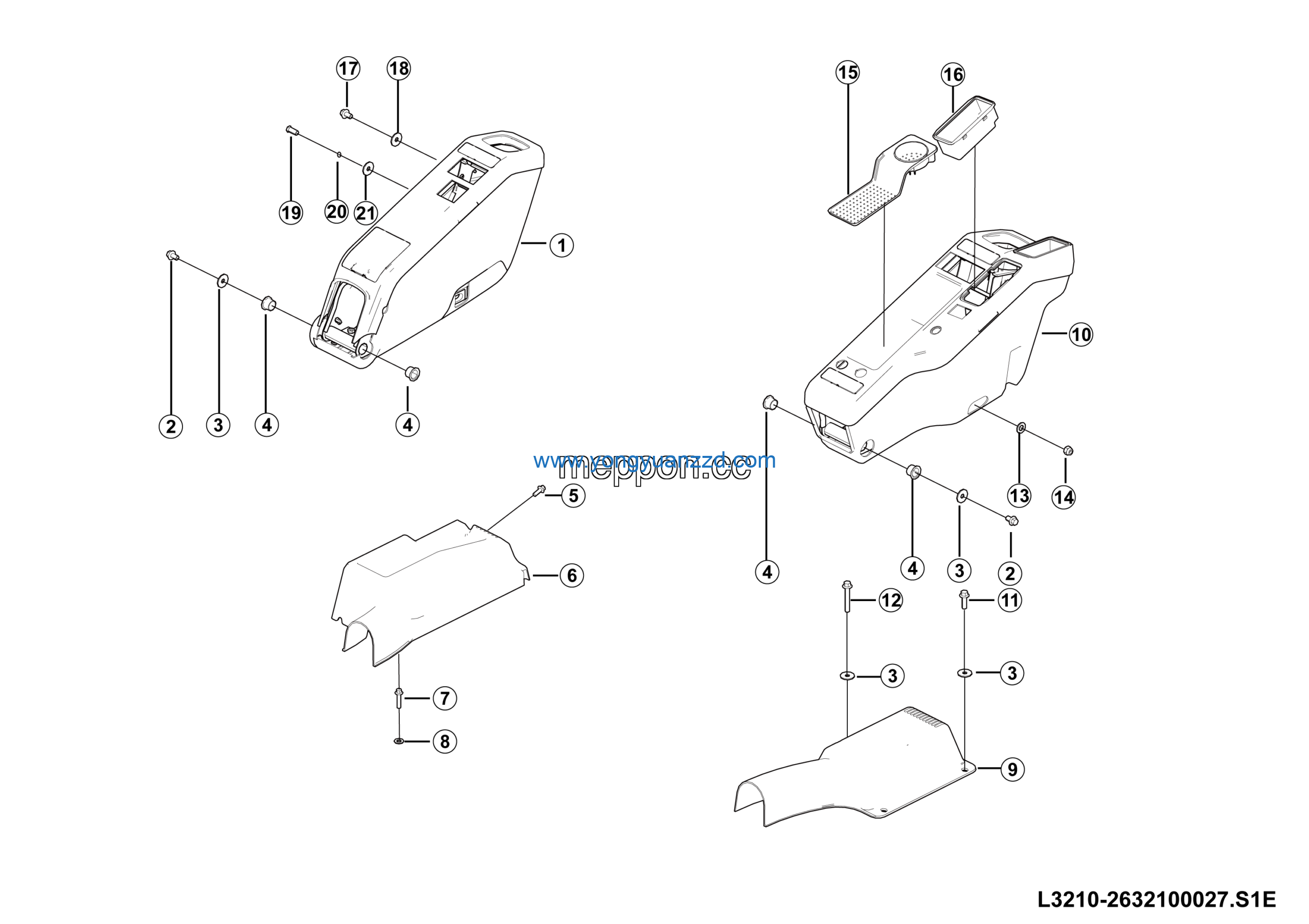

LGMG Hydraulic excavator 2025 – Control box installation – L3210-2632100027.S1E
Category: 2025 > Hydraulic excavator > ME106-1 > E10600C3A000
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | RH control box assy | 4190707777 | 1 |
| 2 | Bolt GB16674.1-M10*30flZnyc-8.8-480 | 4011010712 | 2 |
| 3 | Bolt GB16674.1-M10*60flZnyc-8.8-480 | 4011011093 | 1 |
| 4 | Washer GB96.1-8flZnyc-300HV-480 | 4015010289 | 2 |
| 5 | Nut GB889.1-M8flznyc-8-480 | 4013010297 | 2 |
| 6 | Cushion | 4190707763 | 1 |
| 7 | Mounting box | 4190707776 | 1 |
| 8 | Bolt GB16674.1-M6*12flZnyc-8.8-480 | 4011010754 | 1 |
| 9 | Washer GB97.1-6flZnyc-300HV-480 | 4015010284 | 1 |
| 10 | Screw gb70.1-m5*16flznyc-10.9-480 | 4014010691 | 2 |
| 11 | LH control box assy | 4190707765 | 1 |
| 12 | Washer GB93-5-65Mn | 4015000034 | 2 |
| 13 | Washer GB97.1-5flZnyc-300HV-480 | 4015010283 | 2 |
| 14 | Bolt GB16674.1-M10*16flZnyc-8.8-480 | 4011011088 | 2 |
| 15 | Washer GB96.1-10flZnyc-300HV-480 | 4015010278 | 5 |
| 16 | Bushing | 4190707762 | 4 |
| 17 | Bolt GB16674.1-M8*20flZnyc-8.8-480 | 4011010966 | 2 |
| 18 | LH out trend | 4190707764 | 1 |
| 19 | Bolt GB16674.1-M8*35flZnyc-8.8-480 | 4011011020 | 1 |
| 20 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 1 |
| 21 | RH outlet cover | 4190707775 | 1 |
