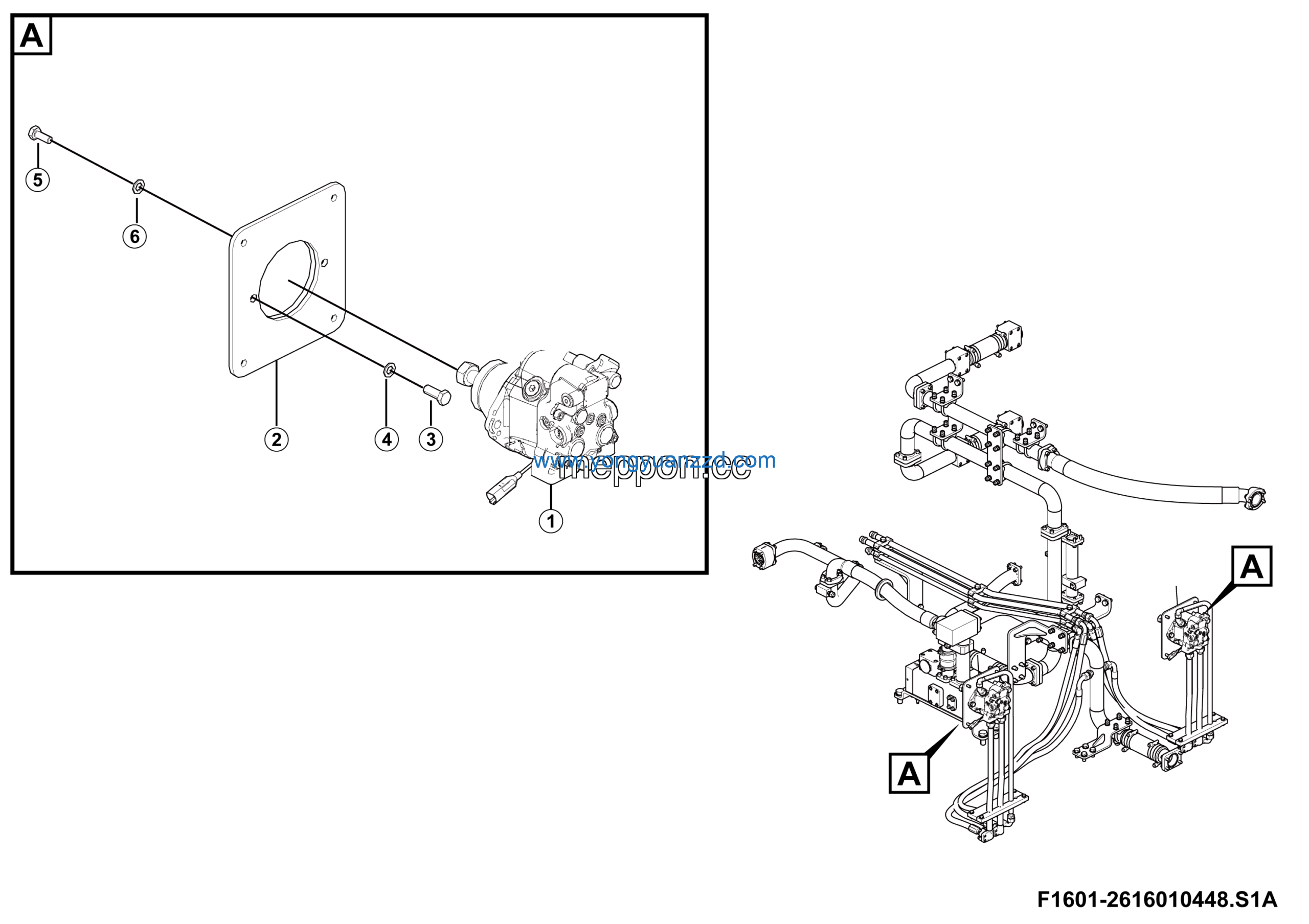

LGMG Hydraulic excavator 2025 – Cooling motor assy – F1601-2616010448.S1A
Category: 2025 > Hydraulic excavator > ME106-1 > E10600C3A000
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Radiating motor HM3V45SDRNNF4500-T403 | 4120710922 | 2 |
| 2 | Bracket | 26160103951 | 2 |
| 3 | Bolt GB5783-M14*35flZnyc-10.9-480 | 4011011462 | 4 |
| 4 | Washer GB848-14flZnyc-300HV-480 | 4015010343 | 4 |
| 5 | Bolt GB5783-M12*30flZnyc-10.9-480 | 4011010866 | 8 |
| 6 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 8 |
