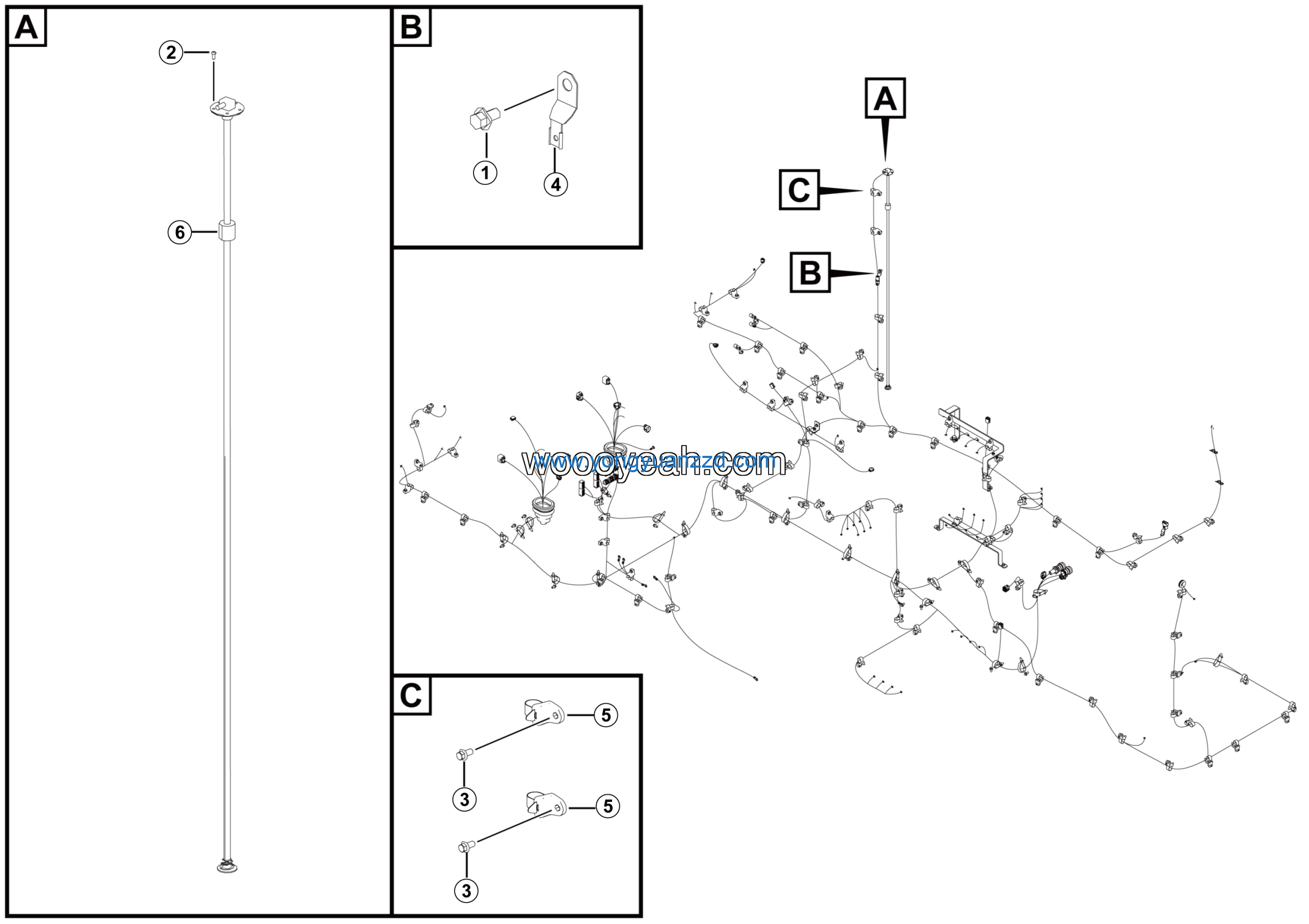

LGMG Hydraulic excavator 2025 – Fuel level sensor assy – P4102-2641020065.S1C
Category: 2025 > Hydraulic excavator > ME130-1 > E13000P3A005
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB16674.1-M10*16EpZn-8.8 | 4011000488 | 1 |
| 2 | Screw GB70.1-M5*12flznyc-8.8-480 | 4014010357 | 5 |
| 3 | Bolt GB16674.1-M10*20flZnyc-10.9-480 | 4011011580 | 2 |
| 4 | Clip spring 14400370 | 4130703099 | 1 |
| 5 | Cable tie 14400342 | 4130703098 | 2 |
| 6 | Oil level sensor | 4130712935 | 1 |
