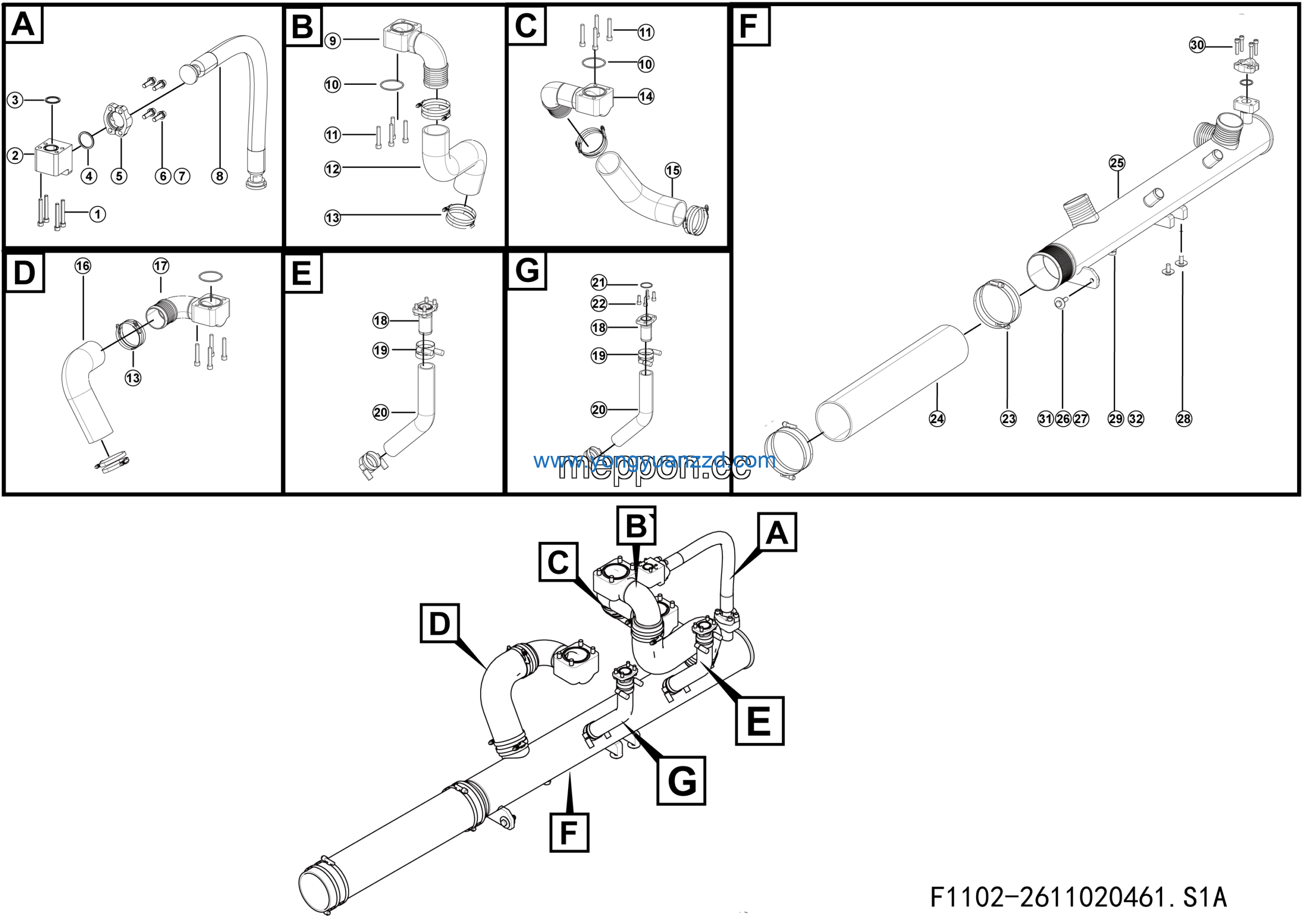

LGMG Hydraulic excavator 2025 – Oil suction lines assy – F1102-2611020461.S1A
Category: 2025 > Hydraulic excavator > ME106-1 > E10600C3A000
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | O-ring GB3452.1-97.5*5.30G | 4030000682 | 3 |
| 2 | Screw GB70.1-M16*90flZnyc-10.9-480 | 4014010677 | 12 |
| 3 | Hose 123*8 | 26110204681 | 1 |
| 4 | Clamp CT-500 L TS SS | 4110703439 | 12 |
| 5 | Oil suction pipe weldment | 26110204691 | 1 |
| 6 | Hose 123*8 | 26110204711 | 1 |
| 7 | Oil suction hose 123*8 | 26110203601 | 1 |
| 8 | Oil suction pipe weldment | 26110203571 | 1 |
| 9 | Pipe | 26110000041 | 2 |
| 10 | Clamp CT-250 L TS SS | 4190706065 | 8 |
| 11 | Screw GB70.1-M10*75flZnyc-12.9-480 | 4014010332 | 4 |
| 12 | Oil suction hose 62*7 | 26110203611 | 2 |
| 13 | O-ring GB3452.1-47.5*3.55G | 4030000130 | 2 |
| 14 | Screw GB70.1-M12*30flZnyc-10.9-480 | 4014010475 | 8 |
| 15 | Hose clamp CT-750 L TS SS | 4110004383 | 4 |
| 16 | Oil suction hose 180*8*890 | 26110204301 | 1 |
| 17 | Oil suction pipe weldment | 26110204661 | 1 |
| 18 | Bolt GB5783-M16*55flZnyc-10.9-480 | 4011010865 | 2 |
| 19 | Washer GB96.1-16flZnyc-300HV-480 | 4015010334 | 8 |
| 20 | Bolt GB5783-M16*35flZnyc-10.9-480 | 4011010864 | 4 |
| 21 | Plug | 26140101381 | 1 |
| 22 | Transition block | 26110203481 | 1 |
| 23 | Screw GB70.1-M12*55flZnyc-10.9-480 | 4014010628 | 4 |
| 24 | Nut GB6170-M16flZnyc-10-480 | 4013010235 | 2 |
| 25 | Copper shim | 4190705964 | 1 |
| 26 | RECT O-ring | 4190707659 | 1 |
| 27 | RECT O-ring | 4190707658 | 2 |
| 28 | FLANGE LGB117-314651 | 4041000010 | 2 |
| 29 | Screw GB70.1-M12*40flZnyc-10.9-480 | 4014010281 | 4 |
| 30 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 4 |
| 31 | Hose F4811515242424-1000 | 4120713640-001 | 1 |
| 32 | Oil suction pipe weldment | 26110203561 | 1 |
