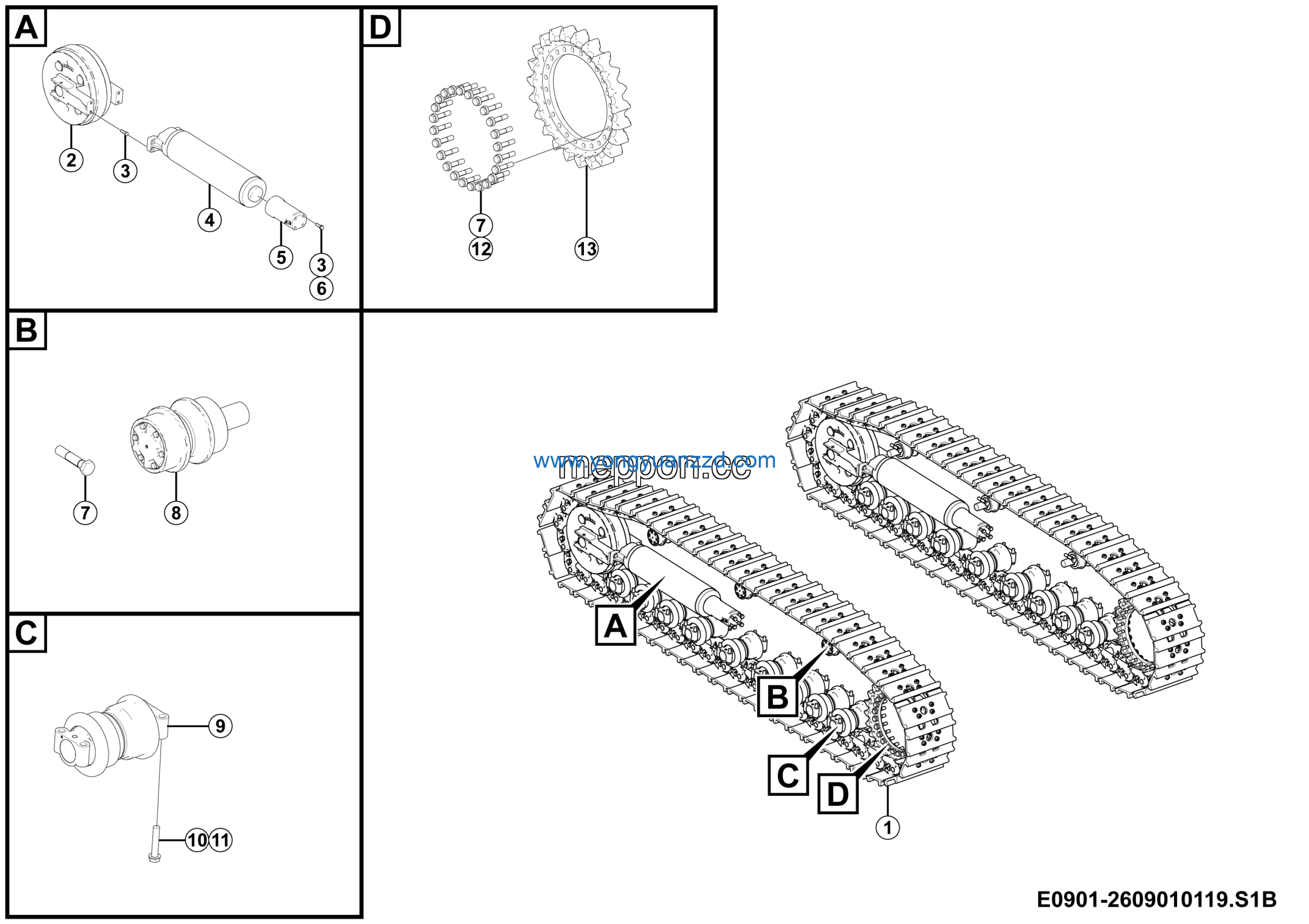

LGMG Hydraulic excavator 2025 – Travel sys – E0901-2609010119.S1B
Category: 2025 > Hydraulic excavator > ME106-1 > E10600C3A000
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5782-M30*160flZnyc-10.9-480 | 4011011595 | 72 |
| 2 | Washer GB97.1-30flZnyc-300HV-480 | 4015010337 | 72 |
| 3 | Washer | 26250000321 | 48 |
| 4 | Drive sprocket xqd260aj | 4110708149 | 2 |
| 5 | Track TL0158（650 * 51） | 4110702591 | 2 |
| 6 | Guide wheel R0031 | 4110702587 | 2 |
| 7 | Bolt GB5783-M24*80flZnyc-10.9-480 | 4011011607 | 16 |
| 8 | Tension spring R0032 | 4110702588 | 2 |
| 9 | Tension cylinder ZJ54E01 | 4110706349 | 2 |
| 10 | Washer GB97.1-24flZnyc-300HV-480 | 4015010364 | 8 |
| 11 | Bolt GB5782-M30*140flZnyc-10.9-480 | 4011011625 | 54 |
| 12 | Carrier roller R0026 | 4110702590 | 6 |
| 13 | Thrust wheel R0027 | 4110702589 | 18 |
