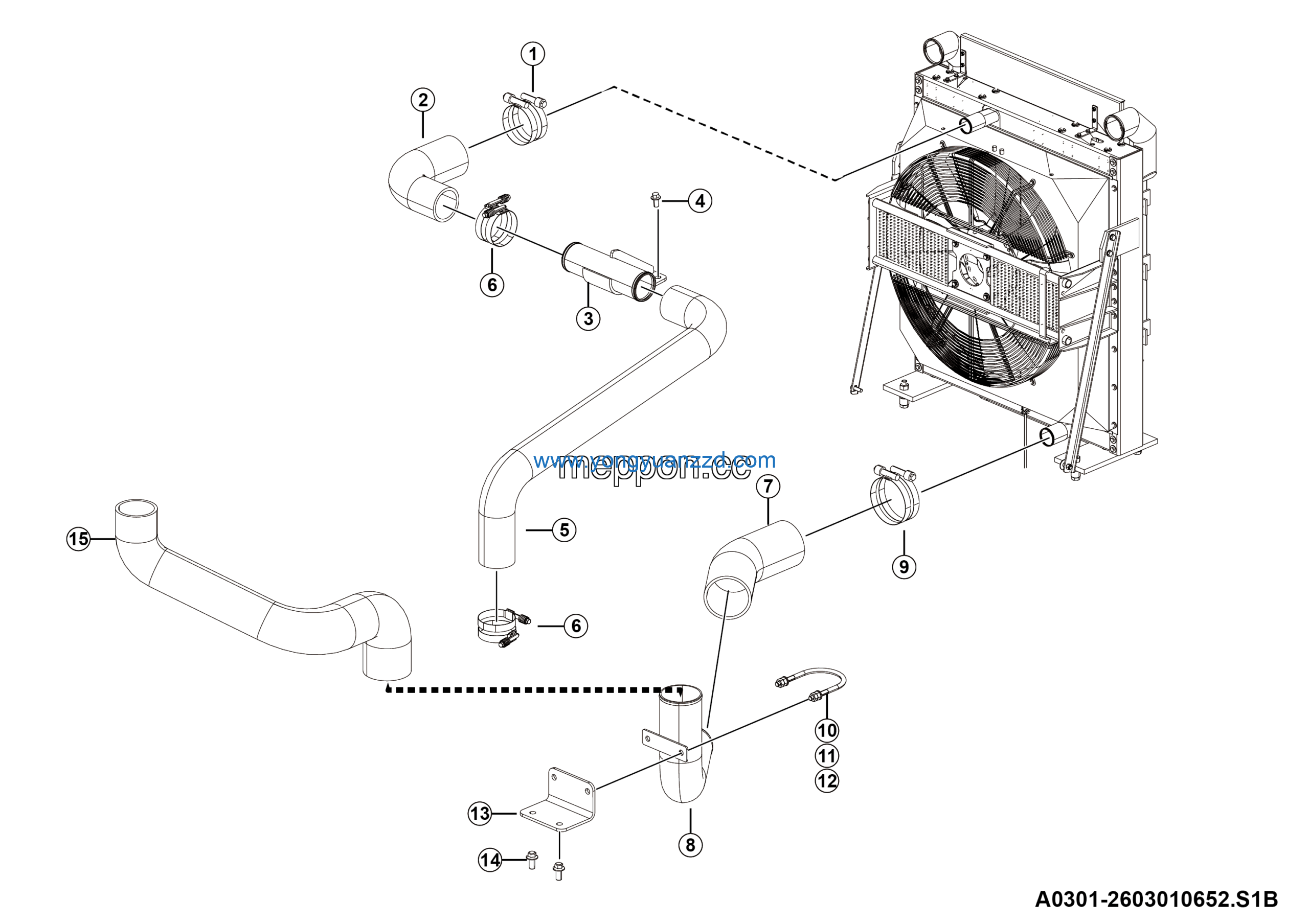

LGMG Hydraulic excavator 2025 – Water radiator connection lines – A0301-2603010652.S1B
Category: 2025 > Hydraulic excavator > ME130-1 > E13000P3A005
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | U bolt | 26030101701 | 1 |
| 2 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 2 |
| 3 | Nut GB6170-M10flZnyc-10-480 | 4013010346 | 4 |
| 4 | Bracket | 26030101711 | 1 |
| 5 | Bolt GB16674.1-M12*25flZnyc-10.9-480 | 4011011610 | 2 |
| 6 | Water intlet hose 89*76*6.5 | 26030106791 | 1 |
| 7 | Clamp CT-350 L TS SS | 4110703590 | 4 |
| 8 | Water outlet hose 76*63.5*6.5 | 26030106761 | 1 |
| 9 | Pipe wldmt | 26030106721 | 1 |
| 10 | Bolt GB16674.1-M10*20flZnyc-10.9-480 | 4011011580 | 2 |
| 11 | Water outlet hose 63.5*6.5 | 26030106771 | 1 |
| 12 | Clamp | 4110703589 | 6 |
| 13 | Water hose | 26030101631 | 1 |
| 14 | Pipe | 26030101642 | 1 |
| 15 | Clamp CT-400 L TS SS | 4110703592 | 6 |
