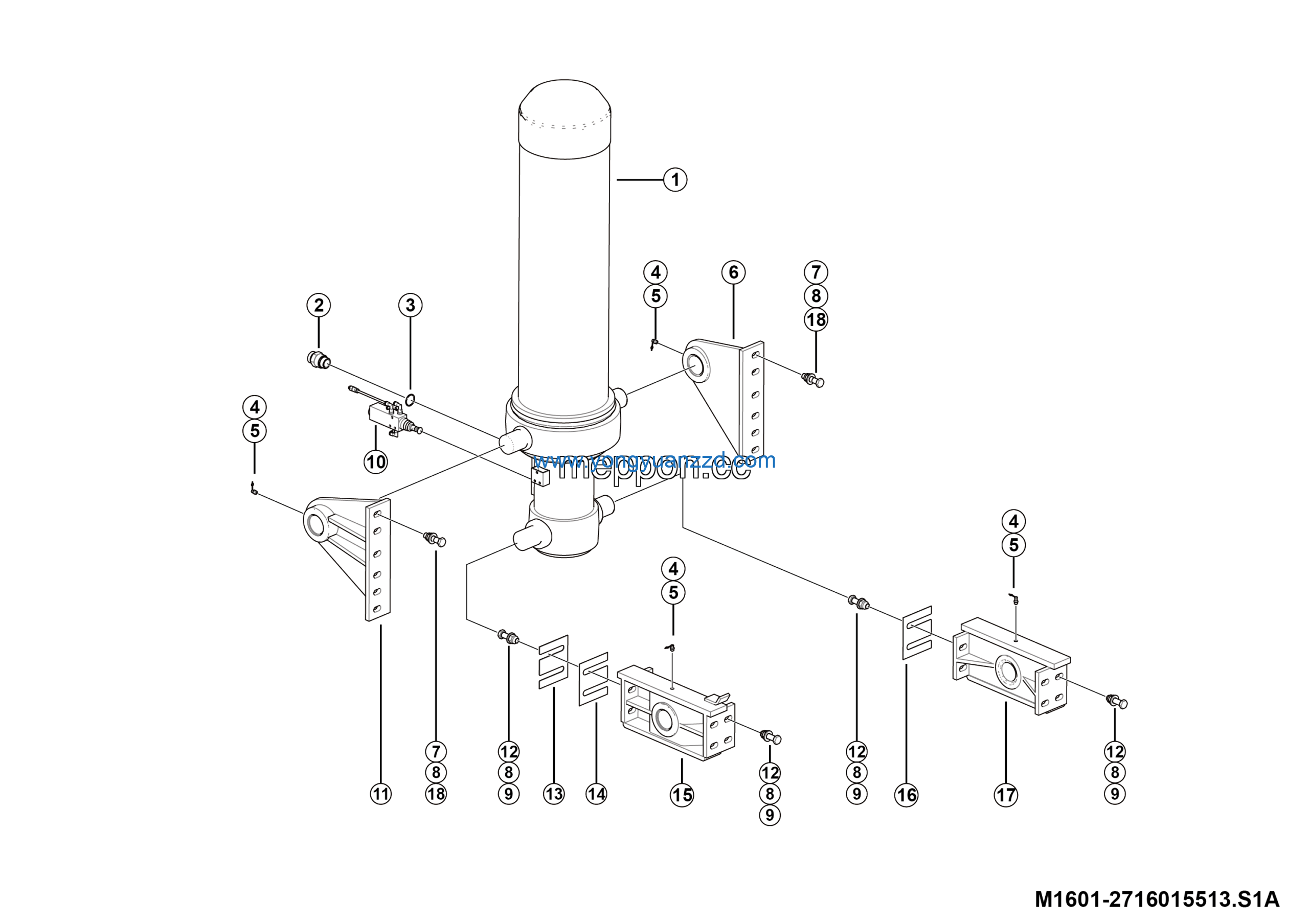

LGMG LGMG50T 2025 – Hoist cylinder assy – M1601-2716015513.S1A
Category: 2025 > LGMG50T > M0500W2E0M202
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Limit valve | 4120001018 | 1 |
| 2 | 油缸上支架TG-SZZa-04H-L | 4120713167 | 1 |
| 3 | Bolt GB5783-M16*60flZnyc-12.9-480 | 4011010570 | 16 |
| 4 | Trimmed gasket | 27160106431 | 1 |
| 5 | Trimmed gasket | 27160106411 | 1 |
| 6 | 油缸下支架TGZZ-DHJXZ-JHA-L | 4120713165 | 1 |
| 7 | Trimmed gasket | 27160106421 | 1 |
| 8 | 油缸下支架TGZZ-DHJXZ-JHA-R | 4120713166 | 1 |
| 9 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 12 |
| 10 | 举升油缸4TG-157*4310 | 4120713169 | 1 |
| 11 | Nipple | 27160112451 | 1 |
| 12 | O-ring GB3452.1-32.5*2.65G | 4030000276 | 1 |
| 13 | Butter nozzle cap JXHF-00006 | 4120000015 | 4 |
| 14 | Grease nipple JB7940.1-M10*1 | 4030000065 | 4 |
| 15 | 油缸下支架TG-SZZa-04H-R | 4120713168 | 1 |
| 16 | Bolt gb5789-m16*1.5*65flznyc-12.9-480 | 4011011946 | 12 |
| 17 | Washer GB1230-16EpZn-45 | 4015000001 | 44 |
| 18 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 16 |
