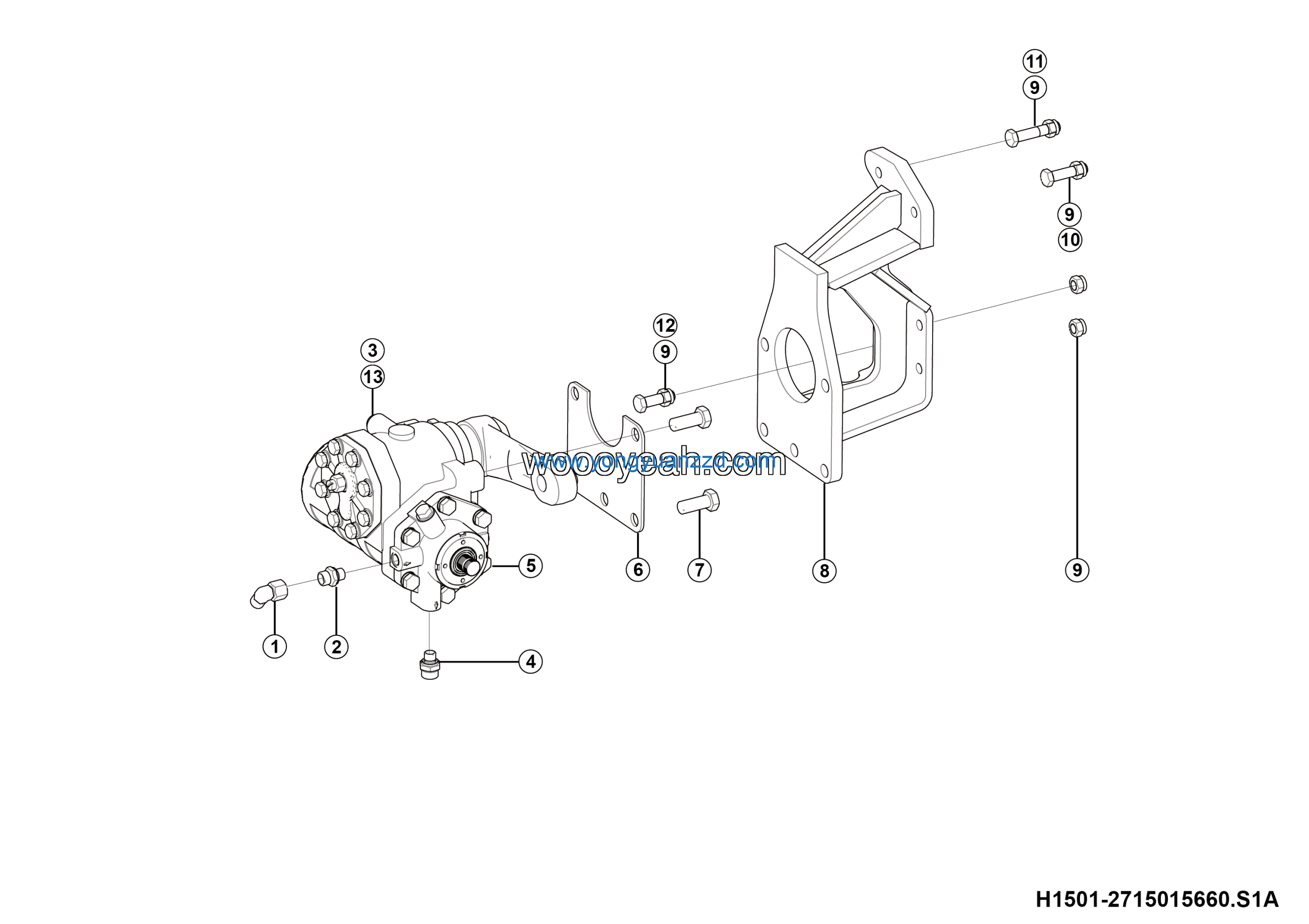

LGMG LGMG50T 2025 – Steering unit installation – H1501-2715015660.S1A
Category: 2025 > LGMG50T > M0500W2E0M203
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M16*65EpZn-10.9 | 4011000665 | 1 |
| 2 | Bolt GB5782-M16*80EpZn-10.9 | 4011000438 | 1 |
| 3 | Bolt GB5783-M16*55EpZn-10.9 | 4011000562 | 3 |
| 4 | Plug 4MN-18WD | 4120703163 | 2 |
| 5 | Combination joint LGB143-02213 | 4041001156 | 1 |
| 6 | Straight joint LGB155-01822 | 4041000822 | 1 |
| 7 | O-ring GB3452.1-19.0*2.65G | 4030000280 | 4 |
| 8 | Straight joint | 27150102981 | 1 |
| 9 | Steering unit FN120LQ01EAG | 4120714817 | 1 |
| 10 | Plate | 27150119941 | 1 |
| 11 | Bolt 5783-M20*1.5*40flZnyc-12.9-480 | 4011011452 | 5 |
| 12 | Steering gear bracket wldmt | 27150156232 | 1 |
| 13 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 5 |
