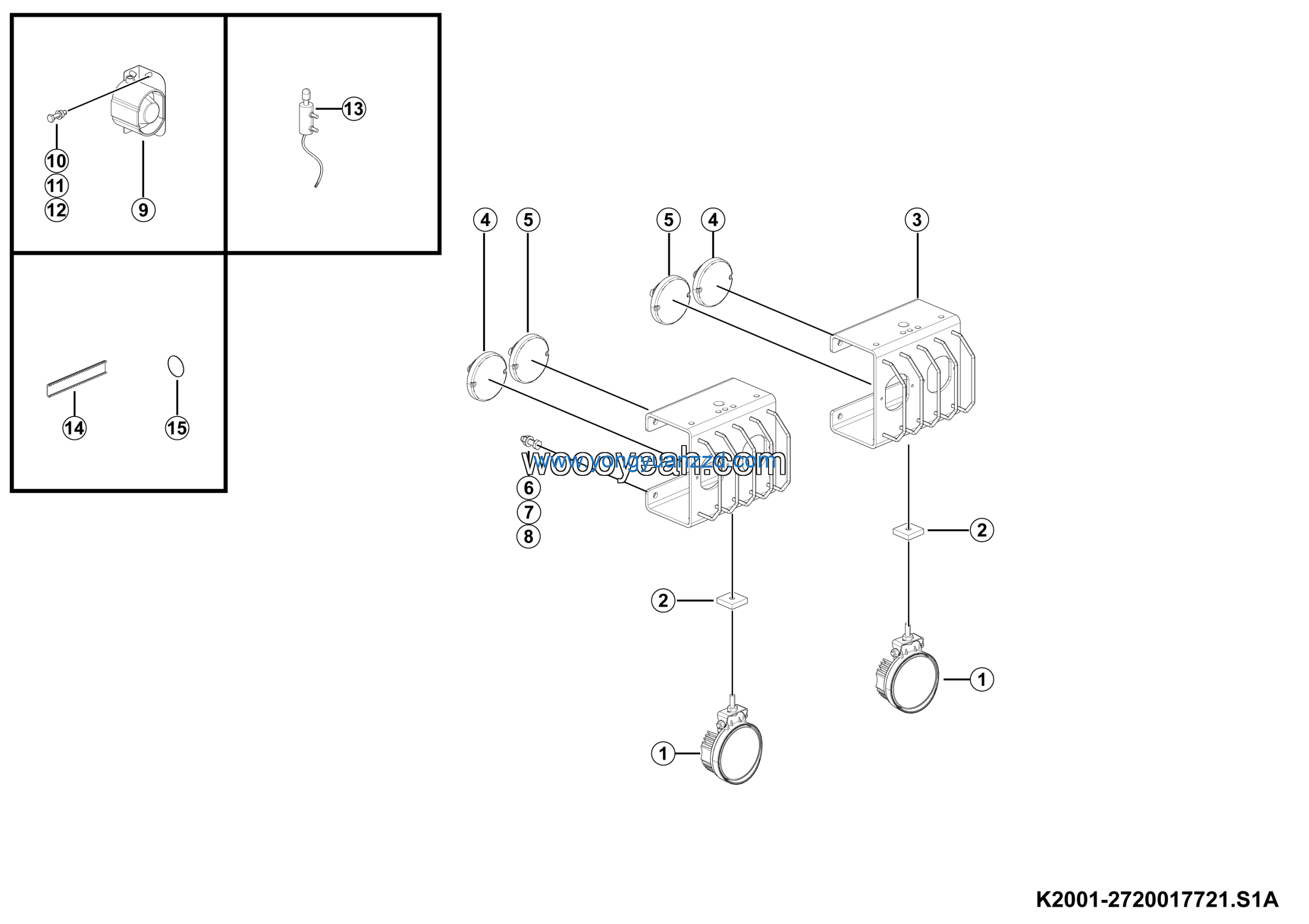

LGMG LGMG50T 2025 – Tail signal module – K2001-2720017721.S1A
Category: 2025 > LGMG50T > M0500W2E0M202
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M8*35EpZn-8.8 | 4011000195 | 2 |
| 2 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 3 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 4 | Cargo lifting switch XJK-010-09 | 4130000641 | 1 |
| 5 | Guard | 27140105031 | 3 |
| 6 | fagging | 27140108691 | 1 |
| 7 | Work lamp HCWK-27W-03 | 4130705603 | 2 |
| 8 | Heel | 27200103871 | 2 |
| 9 | Taillight bracket | 27200177222 | 2 |
| 10 | LED Yellow turn signal SG-XH019A | 4130705601 | 2 |
| 11 | LED Width indicator lamp SG-XH019B | 4130705602 | 2 |
| 12 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 8 |
| 13 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
| 14 | Nut GB6170-M10EpZn-8 | 4013000007 | 8 |
| 15 | Reverse buzzer DDB101-LG | 4130000294 | 1 |
