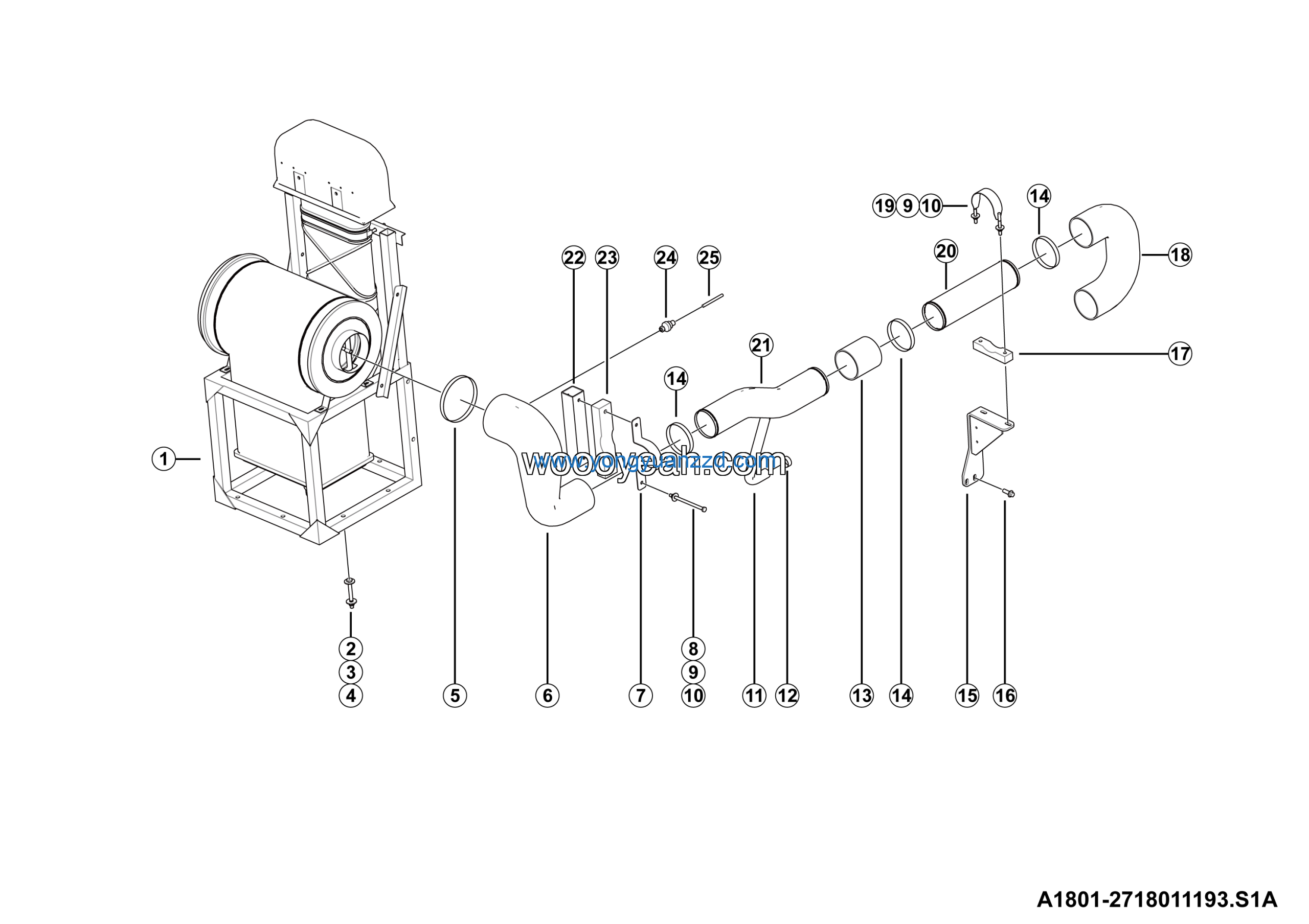

LGMG MGW500 2025 – Air filter assy – A1801-2718011193.S1A
Category: 2025 > MGW500 > M0500Y3E0M107
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 4 |
| 2 | Compressor intake hose 35*5*625 | 27180112011 | 1 |
| 3 | Butterfly spring clamp φ25-φ45 | 4190708159 | 2 |
| 4 | Air filter connecting hose 108 * 5 * 120 | 27180112041 | 1 |
| 5 | Butterfly spring clamp φ108-φ130 | 4190708167 | 5 |
| 6 | Air filter pipe bracket wldmt | 27180111942 | 1 |
| 7 | Bolt GB16674.1-M12*35flZnyc-8.8-480 | 4011011008 | 2 |
| 8 | Rubber spacer 160*40*30 | 27180111961 | 1 |
| 9 | Compressor intake hose 120*5*303*200 | 27180112001 | 1 |
| 10 | Exhaust pipe strap weldment | 27180111971 | 1 |
| 11 | Desert filter assy-1800sm | 4190709850 | 1 |
| 12 | Connecting steel pipe 108 * 1.5 * 390 | 27180112051 | 1 |
| 13 | Transition pipe 110*1.5*975*88 | 27180111991 | 1 |
| 14 | Rectangular tube 60*60-4 | 27180103531 | 1 |
| 15 | Rubber spacer 290*60*40 | 27180112021 | 1 |
| 16 | Vacuum level alarm | 4110001427 | 1 |
| 17 | Wire | 27200107621 | 1 |
| 18 | Bolt GB5782-M12*110EpZn-8.8 | 4011000262 | 6 |
| 19 | Washer GB96.1-12EpZn-300HV | 4015000186 | 12 |
| 20 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 6 |
| 21 | Butterfly spring clamp φ159-φ181 | 4190708171 | 1 |
| 22 | Air filter outlet hose 164*7*250*130 | 27180111981 | 1 |
| 23 | Transition pipe clamp 110*240*40 | 27180112031 | 1 |
| 24 | Bolt GB5782-M10*170EpZn-8.8 | 4011011691 | 2 |
| 25 | Washer GB96.1-10EpZn-300HV | 4015000197 | 4 |
