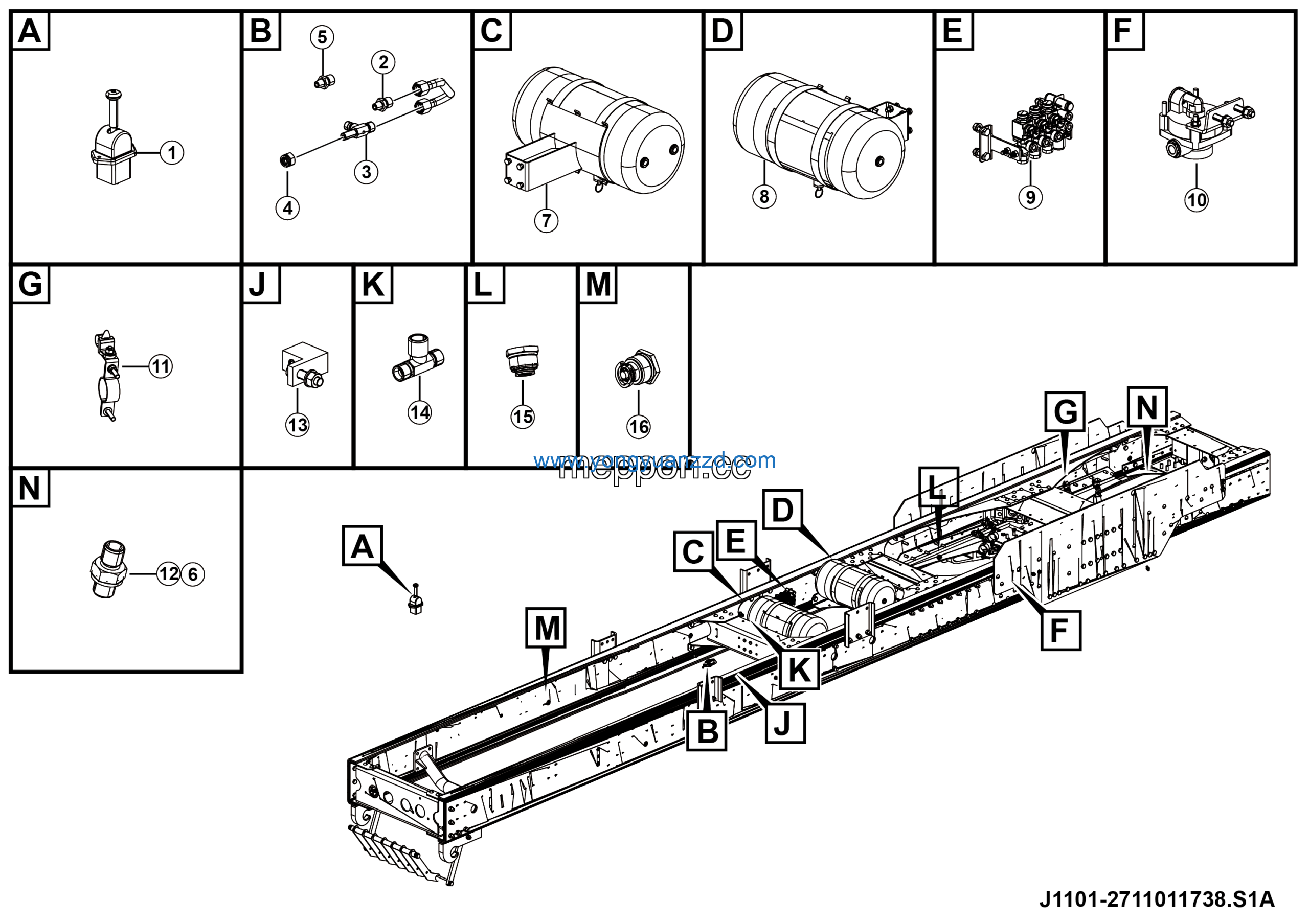

LGMG MGW500 2025 – Parking brake assy – J1101-2711011738.S1A
Category: 2025 > MGW500 > M0500Y3E0M107
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Asm | 27100121021 | 1 |
| 2 | Air hose bracket assy | 27110115231 | 4 |
| 3 | Joint M12-M12 | 27110101331 | 3 |
| 4 | Support | 27100120871 | 1 |
| 5 | T-connector M14-M12-M14 | 27110101341 | 1 |
| 6 | Nut seat | 27110107601 | 4 |
| 7 | Nut seat | 27110107611 | 2 |
| 8 | Hand brake valve | 4120000134 | 1 |
| 9 | M12 joint | 27110102681 | 1 |
| 10 | M10-m12 joint | 27110102671 | 1 |
| 11 | Washer JB982-10 | 4015000140 | 1 |
| 12 | M14 Direct head | 27100101211 | 1 |
| 13 | Washer JB982-12 | 4015000327 | 3 |
| 14 | 20l air reservoir assy | 27110115551 | 1 |
| 15 | Installation assembly | 27100121041 | 1 |
| 16 | Quadruple solenoid valve assy | 27110115961 | 1 |
