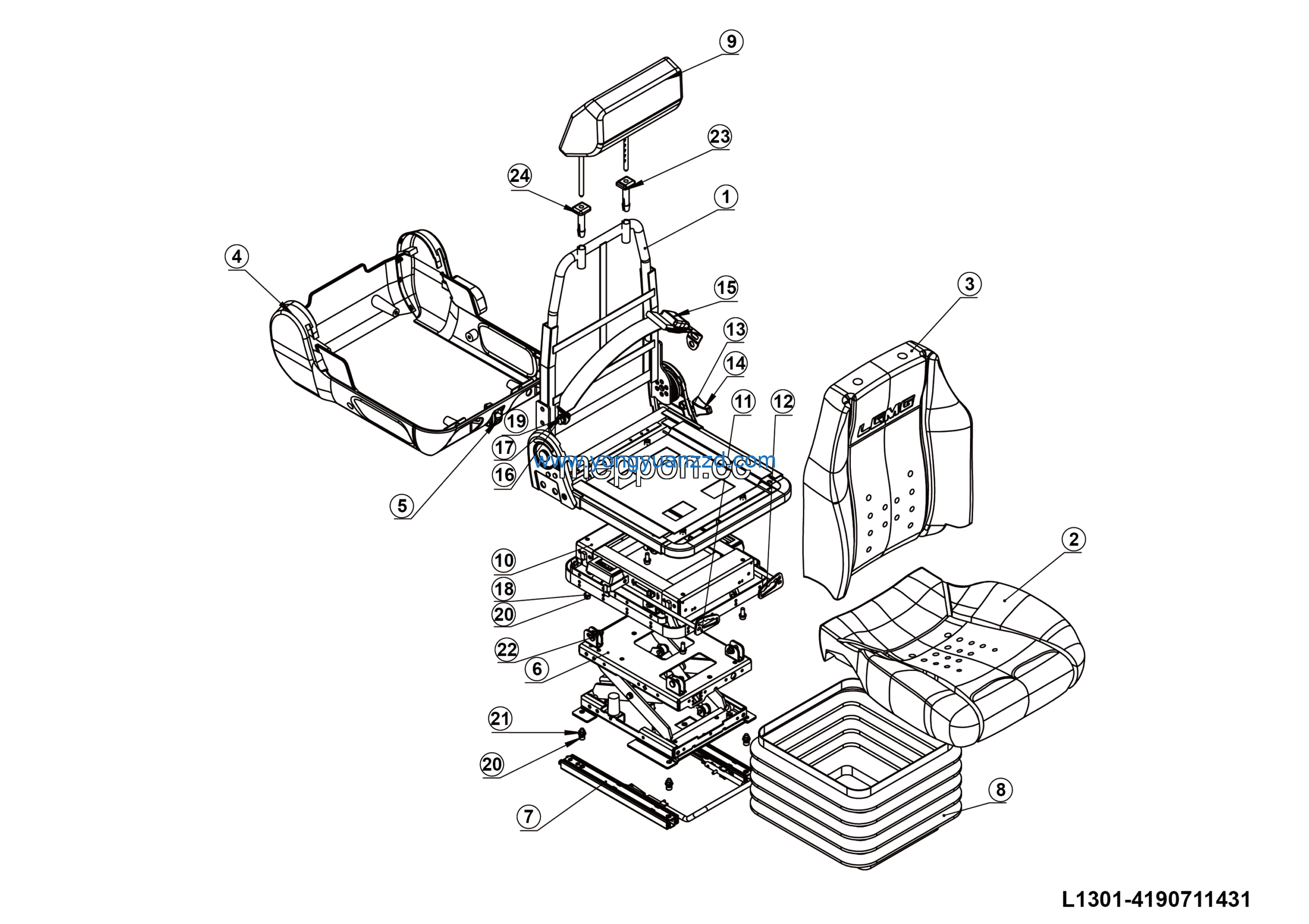

LGMG MGW500 2025 – Seat assy xfzy-30a (10235) – L1301-4190711431
Category: 2025 > MGW500 > M0500Y3E0M107
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Tilting mechanism 26bk | 4190711431010 | 1 |
| 2 | Rh forward/backward handle | 4190711431011 | 1 |
| 3 | Lh forward/backward handle | 4190711431012 | 1 |
| 4 | Angle adjustment handle | 4190711431013 | 1 |
| 5 | Angle adjustment lever | 4190711431014 | 1 |
| 6 | Non-retractable seat belt | 4190711431015 | 1 |
| 7 | Bolt m12*25*1.25 | 4190711431016 | 2 |
| 8 | Washer 12c | 4190711431017 | 2 |
| 9 | Washer 8c | 4190711431018 | 4 |
| 10 | Spring washer 12c | 4190711431019 | 2 |
| 11 | Seat back frame | 4190711431001 | 1 |
| 12 | Screw m8*25 | 4190711431020 | 8 |
| 13 | Nut m8 | 4190711431021 | 8 |
| 14 | Screw m8 | 4190711431022 | 4 |
| 15 | Adjustable bushing | 4190711431023 | 1 |
| 16 | Bushing | 4190711431024 | 1 |
| 17 | Seat sponge | 4190711431002 | 1 |
| 18 | Seat back sponge | 4190711431003 | 1 |
| 19 | Seat shield | 4190711431004 | 1 |
| 20 | Switch 3 | 4190711431005 | 1 |
| 21 | Shock absorber assy | 4190711431006 | 1 |
| 22 | Slide assy | 4190711431007 | 1 |
| 23 | Dust cover | 4190711431008 | 1 |
| 24 | Headrest assy | 4190711431009 | 1 |
