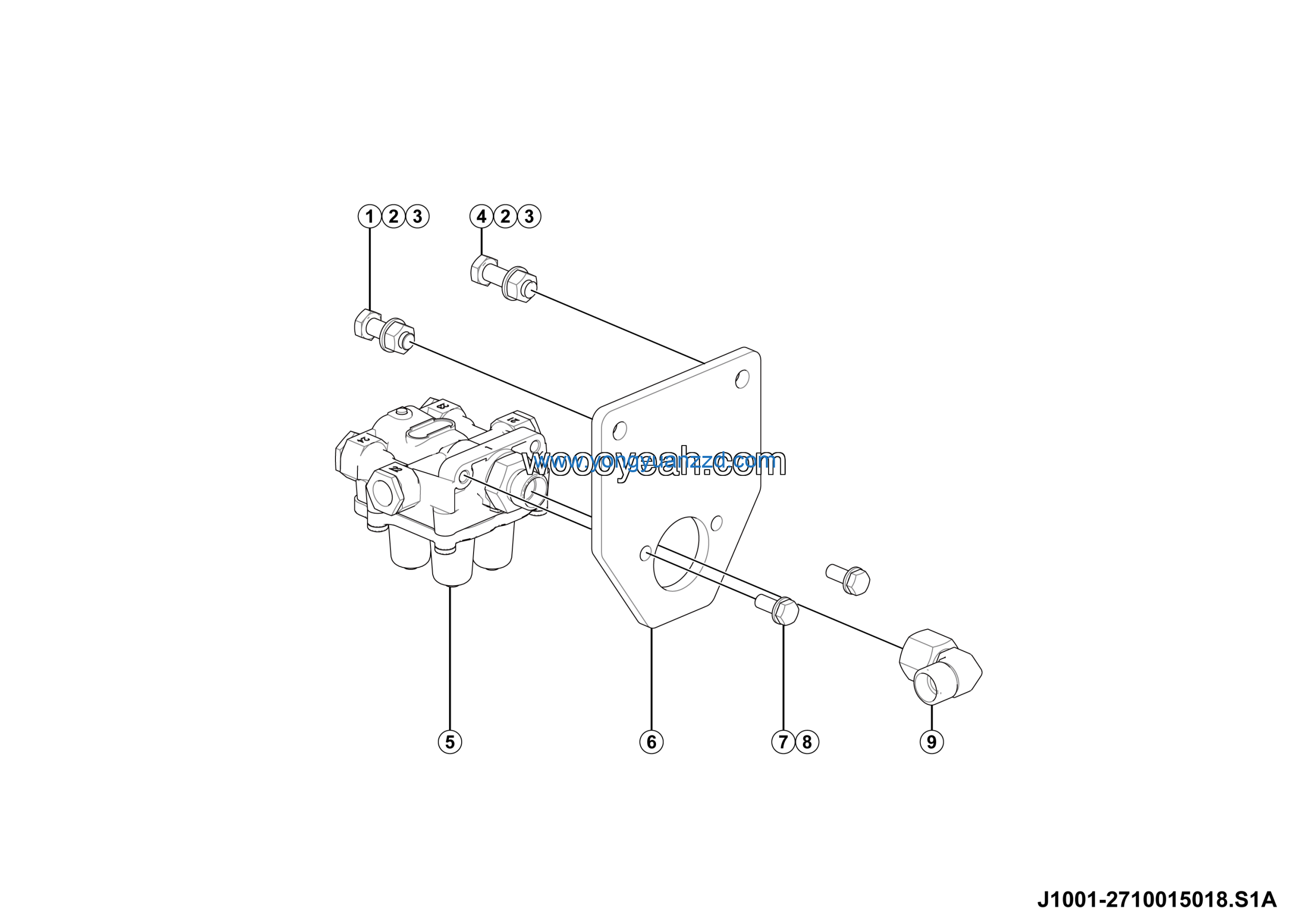

LGMG Mine Truck 2026 – 4-circuit protection valve installation – J1001-2710015018.S1A
Category: 2026 > Mine Truck > RTE136 > R136EY3A0A207
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M10*30flznyc-8.8-480 | 4011010707 | 1 |
| 2 | Nut GB6170-M10flZnyc-8-480 | 4013010289 | 2 |
| 3 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 2 |
| 4 | Bolt GB5783-M10*35flZnyc-8.8-480 | 4011010727 | 1 |
| 5 | Protection valve 35150083730 | 4120707080 | 1 |
| 6 | 4-circuit protection valve mounting plate | 27100150191 | 1 |
| 7 | Bolt GB5783-M8*20flznyc-8.8-480 | 4011010711 | 2 |
| 8 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 2 |
| 9 | Combination joint LGB143-02213 | 4041001156 | 1 |
