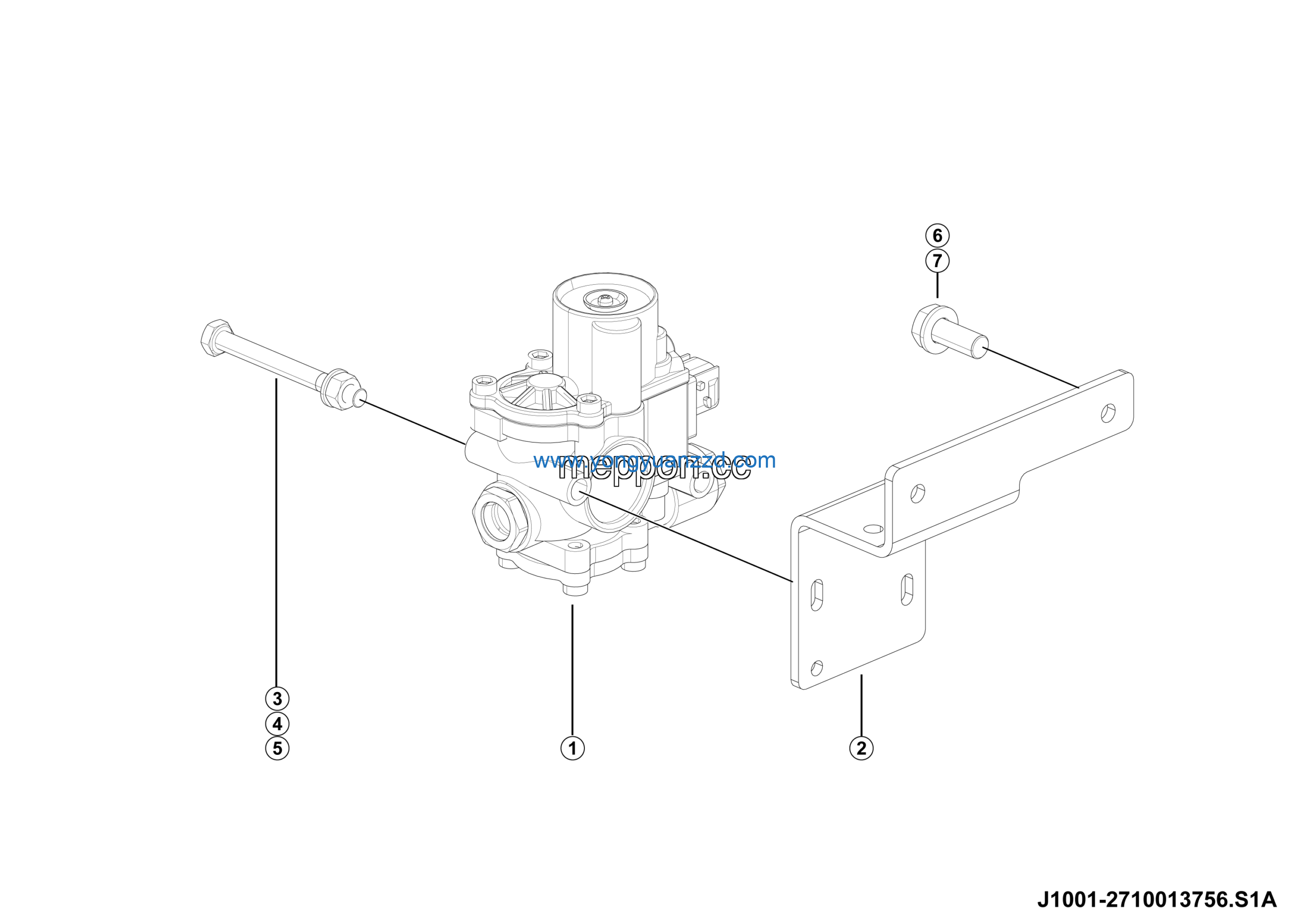

LGMG Mine Truck 2026 – Abs solenoid valve assy 02 – J1001-2710013756.S1A
Category: 2026 > Mine Truck > RTH100 > R1000Y3A0A244
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | ABS Solenoid valve 35503000040 | 4120706434 | 1 |
| 2 | Abs valve bracket | 27100134751 | 1 |
| 3 | Bolt GB5782-M8*80flZnyc-10.9-480 | 4011011765 | 2 |
| 4 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 2 |
| 5 | Nut GB6170-M8flznyc-8-480 | 4013010291 | 2 |
| 6 | Bolt GB5783-M10*25flznyc-8.8-480 | 4011010722 | 2 |
| 7 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 2 |
