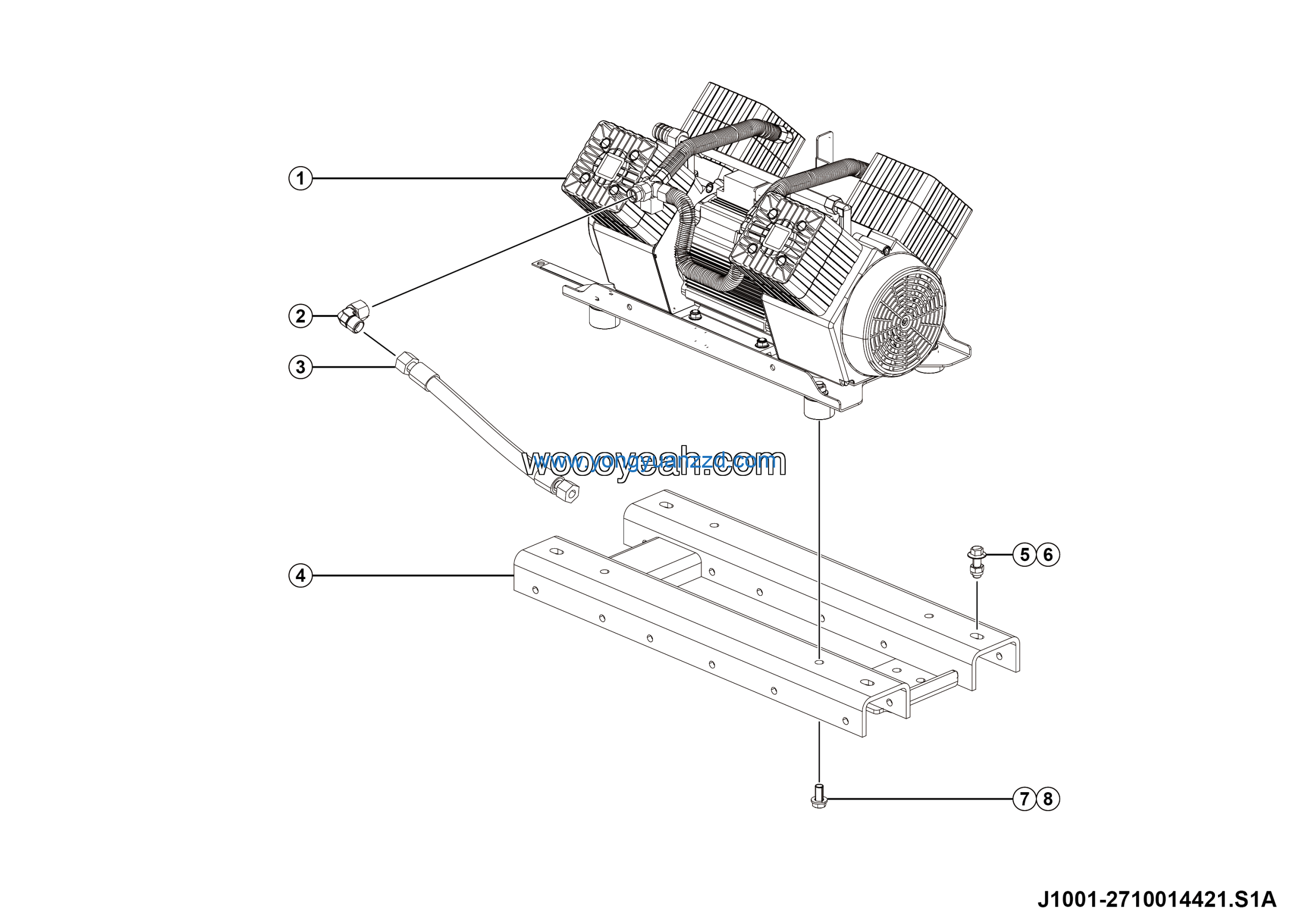

LGMG Mine Truck 2026 – Air compressor assy – J1001-2710014421.S1A
Category: 2026 > Mine Truck > RTH100 > R1000Y3A0A241
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Air compressor QXAC4P/4G686-4kW | 4120711497 | 1 |
| 2 | Combination joint LGB143-02213 | 4041001156 | 1 |
| 3 | Steel braided hose 420 (high resilience) | 27100144221 | 1 |
| 4 | Air compressor bracket wldmt | 27100137401 | 1 |
| 5 | Bolt gb16674.1-m12*35flznyc-10.9-480 | 4011011572 | 4 |
| 6 | Nut GB6185.1-M12flZnyc-8-480 | 4013010358 | 4 |
| 7 | Bolt GB5783-M12*25flZnyc-8.8-480 | 4011011038 | 4 |
| 8 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 4 |
