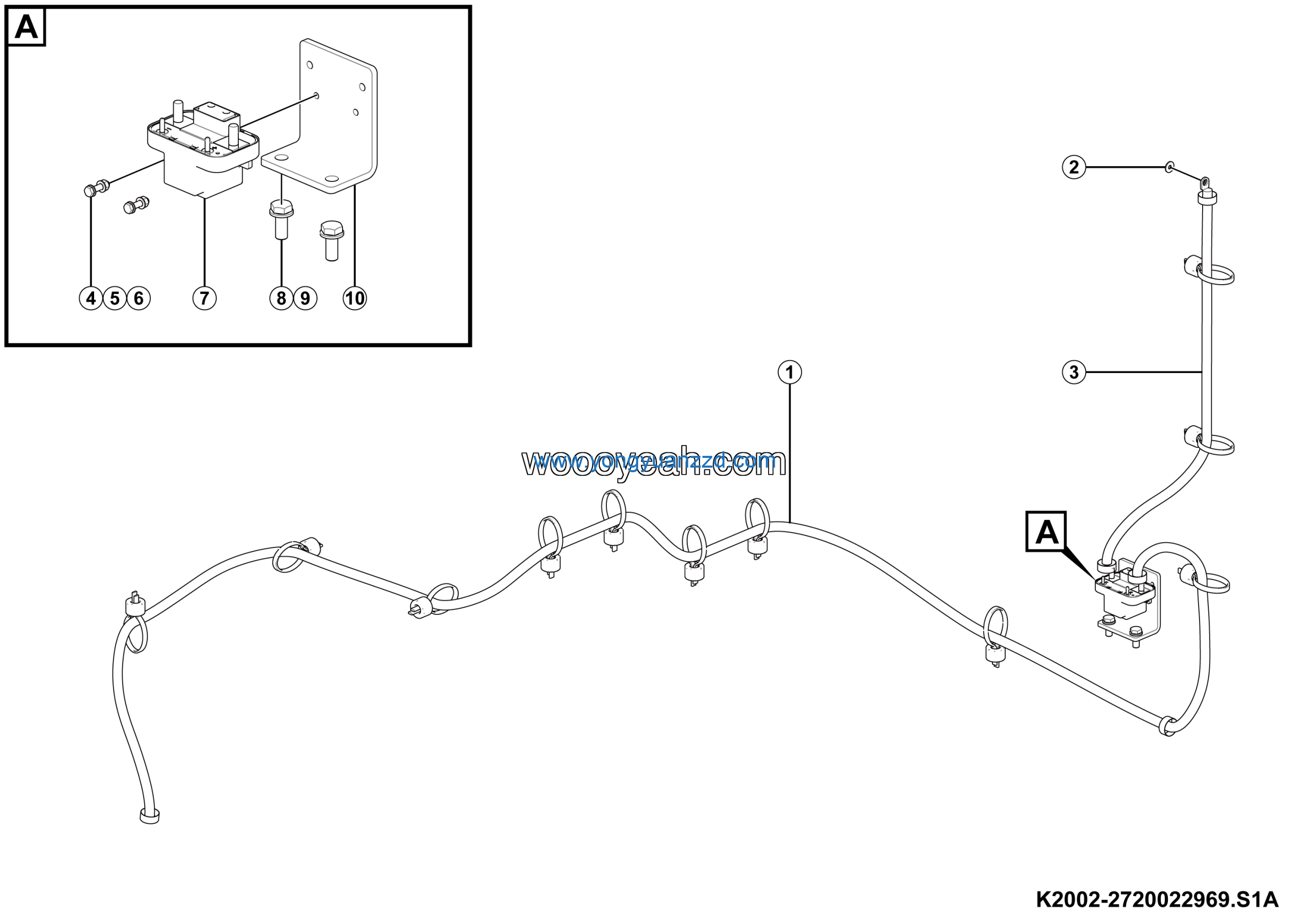

LGMG Mine Truck 2026 – Air intake preheating module – K2002-2720022969.S1A
Category: 2026 > Mine Truck > RTH100 > R1000Y3A0A243
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Preheating relay bracket 100*86*55 | 27200172451 | 1 |
| 2 | Intake preheating power cable p35*3200 | 27200216951 | 1 |
| 3 | Washer GB96.1-6flZnyc-300HV-480 | 4015010296 | 1 |
| 4 | Power cable p50*750 | 27200229681 | 1 |
| 5 | Bolt GB5783-M5*20flZnyc-8.8-480 | 4011011066 | 2 |
| 6 | Nut GB6170-M5flZnyc-8-480 | 4013010298 | 2 |
| 7 | Washer GB97.1-5flZnyc-300HV-480 | 4015010283 | 4 |
| 8 | Preheating relay HHZ H20-2-24R | 4130704101 | 1 |
| 9 | Bolt GB5783-M10*25flznyc-8.8-480 | 4011010722 | 2 |
| 10 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 2 |
