LGMG Mine Truck 2026 – ASM-Air Pipe Support Installation assy 01 – J1001-2710012082.S1A
Category: 2026 > Mine Truck > MT60 > M060DW3E0M106

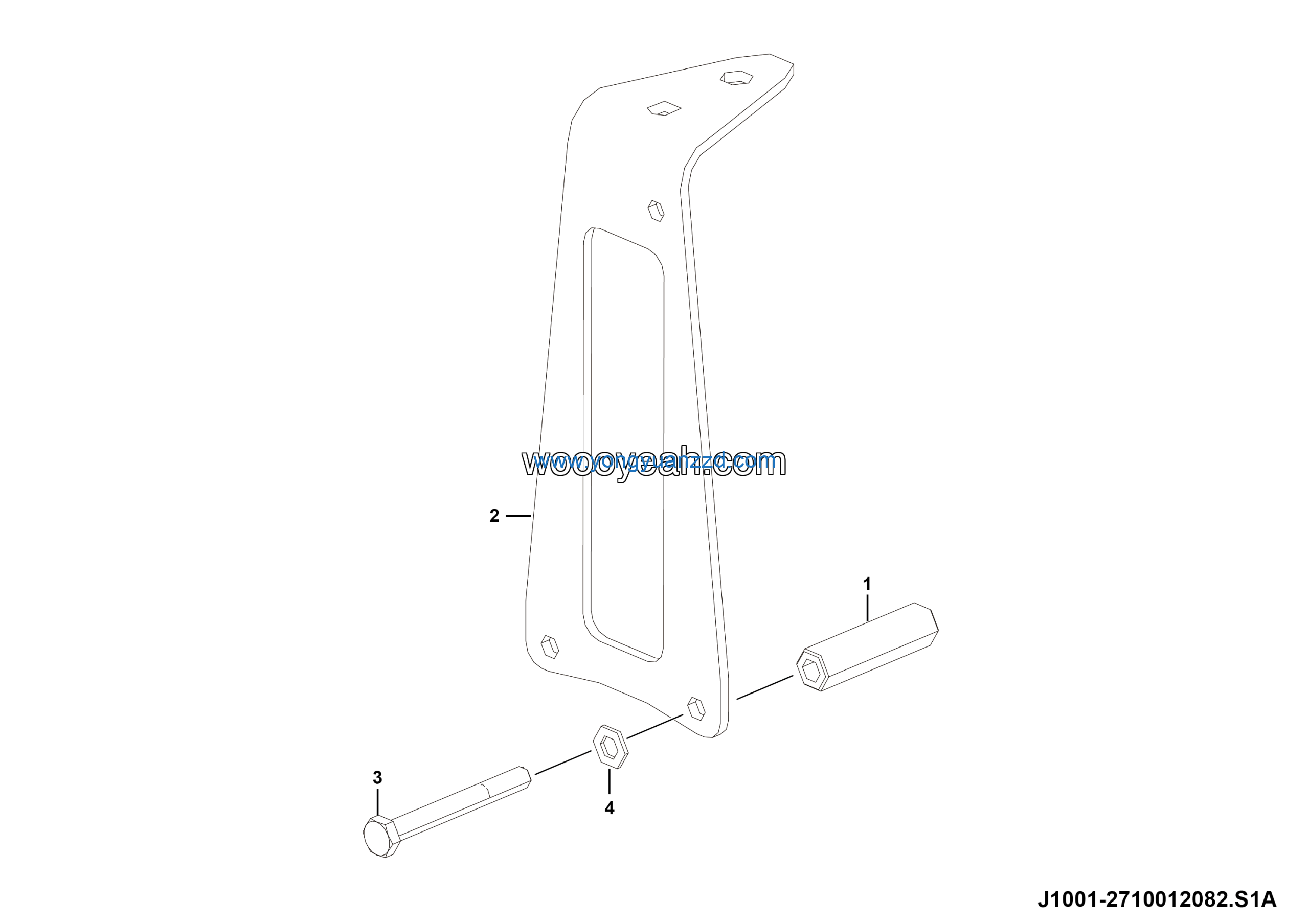

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Sleeve | 27100107421 | 2 |
| 2 | Intermediate axle air tube bracket | 27100107641 | 1 |
| 3 | Bolt GB5782-M10*85EpZn-8.8 | 4011010016 | 2 |
| 4 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
