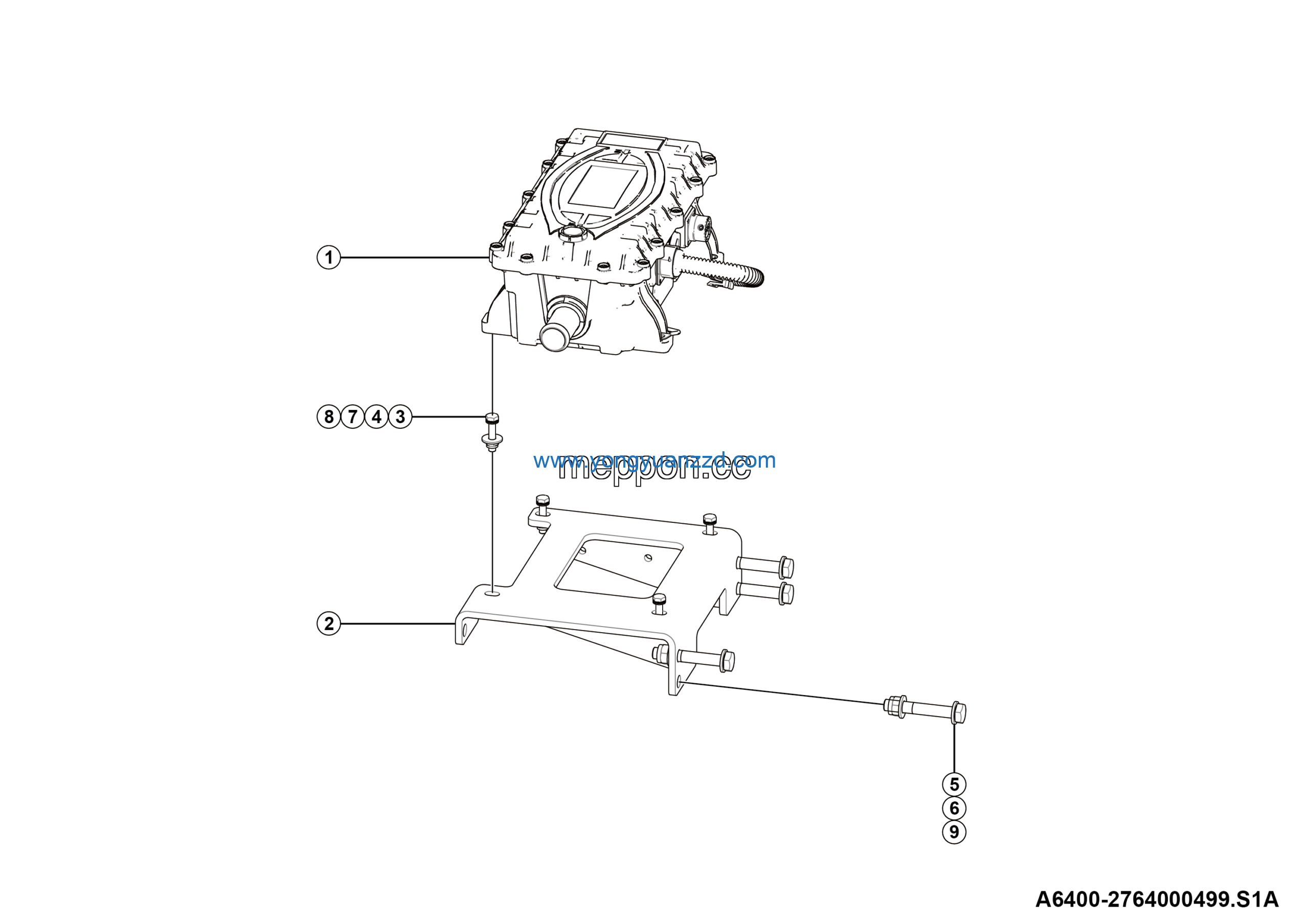

LGMG Mine Truck 2026 – Battery ptc2 assy – A6400-2764000499.S1A
Category: 2026 > Mine Truck > RTE136 > R1361E0A0A403
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | 12kw PTC | 4130706123 | 1 |
| 2 | Bracket wldmt | 27640005241 | 1 |
| 3 | Double sack wedge lock washer HF6 | 4190708407 | 4 |
| 4 | Bolt GB5783-M6*30flznyc-8.8-480 | 4011010717 | 4 |
| 5 | Bolt GB5782-M10*65flZnyc-8.8-480 | 4011010729 | 4 |
| 6 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 4 |
| 7 | Nut GB6185.1-M6flZnyc-8-480 | 4013010414 | 4 |
| 8 | Washer GB96.1-6flZnyc-300HV-480 | 4015010296 | 4 |
| 9 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 8 |
