LGMG Mine Truck 2026 – Bdu mvpdu253e02-1 – K0700-4130715576
Category: 2026 > Mine Truck > RTH100 > R1000Y3A0A239

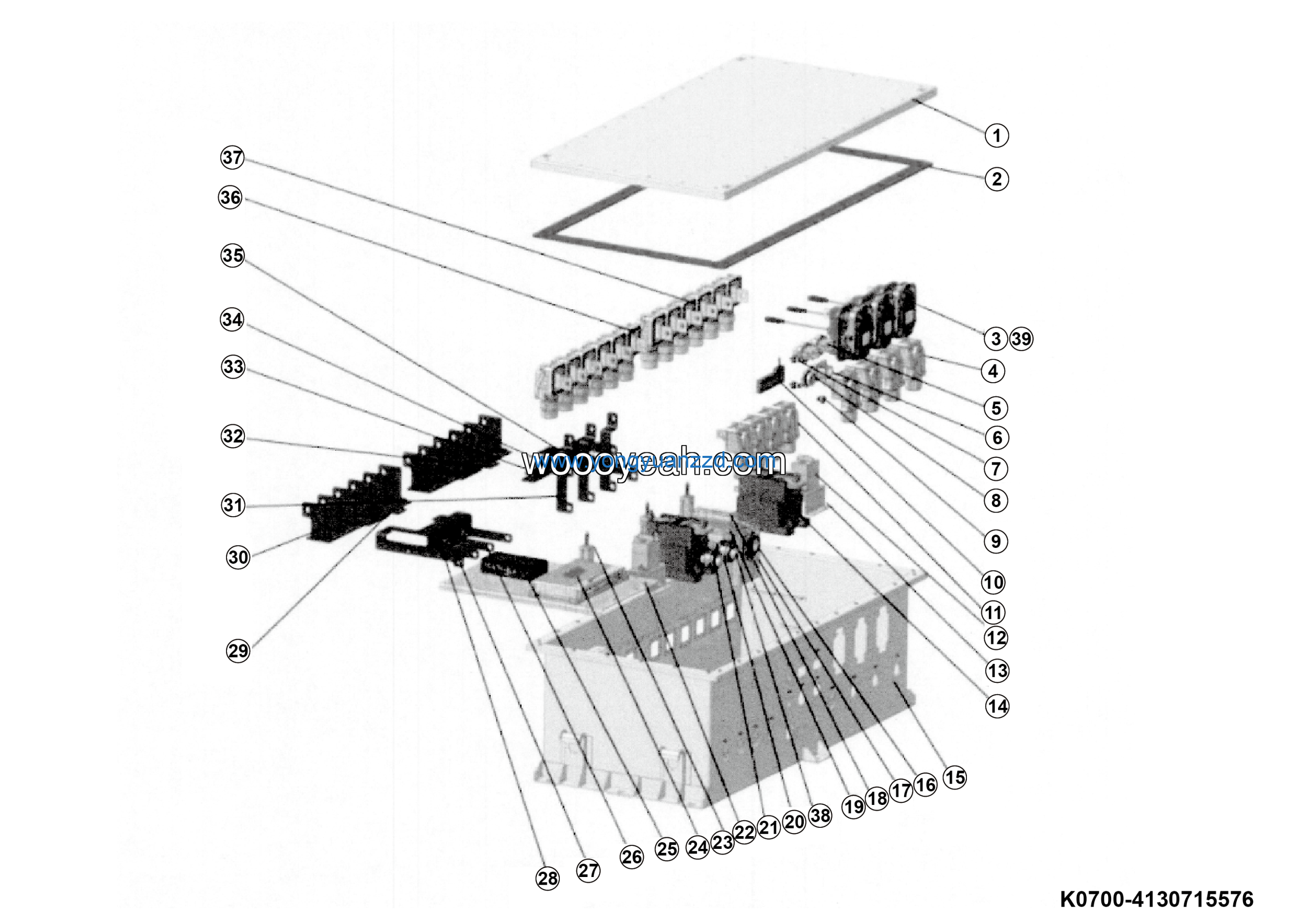

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | T-box external harness hq-wh-004 | 4130714904008 | 1 |
| 2 | Connector 70mm2 (negative) | 4130712620010 | 4 |
| 3 | Charging relay hfe82v-300c/750-24-h-c5-1, | 4130714904009 | 2 |
| 4 | Mounting bracket | 4130714904010 | 2 |
| 5 | Relay hfe82v-1000/1000-24-h-c6-6 | 4130713478002 | 2 |
| 6 | Control box shell | 4130714904011 | 1 |
| 7 | Current sensor cab-sf1500-001 | 4130714904018 | 1 |
| 8 | Mounting bracket | 4130715576002 | 1 |
| 9 | Power resistor | 4130712620002 | 2 |
| 10 | Mounting bracket | 4130715576003 | 1 |
| 11 | Control box cover | 4130714904001 | 1 |
| 12 | Hall-effect sensor retainer | 4130715576004 | 2 |
| 13 | Current sensor dhabs/137 | 4130714904020 | 2 |
| 14 | Mounting bracket | 4130714904034 | 1 |
| 15 | Fuser holder | 4130714904023 | 4 |
| 16 | Bms master control unit | 4130704573006 | 1 |
| 17 | T-box | 4130714904035 | 1 |
| 18 | Busbar | 4130714904031 | 3 |
| 19 | Busbar | 4130714904033 | 1 |
| 20 | Busbar | 4130714904032 | 1 |
| 21 | Busbar | 4130714904036 | 1 |
| 22 | Sealing ring | 4130714904002 | 1 |
| 23 | Busbar | 4130714904038 | 12 |
| 24 | Busbar | 4130714904022 | 3 |
| 25 | Busbar | 4130714904037 | 1 |
| 26 | Busbar | 4130714904026 | 1 |
| 27 | Busbar | 4130714904024 | 3 |
| 28 | Busbar | 4130714904021 | 1 |
| 29 | Discharge junction box (negative) hvcb08er-70/95-bl-ly | 4130714904039 | 6 |
| 30 | Discharge junction box (positive) hvcb08er-70/95-ra-ly | 4130714904040 | 6 |
| 31 | Hall-effect sensor retainer | 4130714904019 | 2 |
| 32 | Msd receptacle | 4130715576001 | 3 |
| 33 | Msd plug rc-msd11-700a/750v-h-mv | 4130713632 | 3 |
| 34 | Connector 70mm2 (negative) | 4130712620012 | 4 |
| 35 | Internal communication female connector at01-12pa-pm05 | 4130714904003 | 2 |
| 36 | External communication female connector sp02fmscrc | 4130714904004 | 1 |
| 37 | T-box internal harness hq-wh-001 | 4130714904005 | 1 |
| 38 | Jt1 diagnosis female connector wy28k12zmq-3 | 4130714904006 | 1 |
| 39 | Breather valve vv-pofvm12022-b1 | 4130712619004 | 1 |
