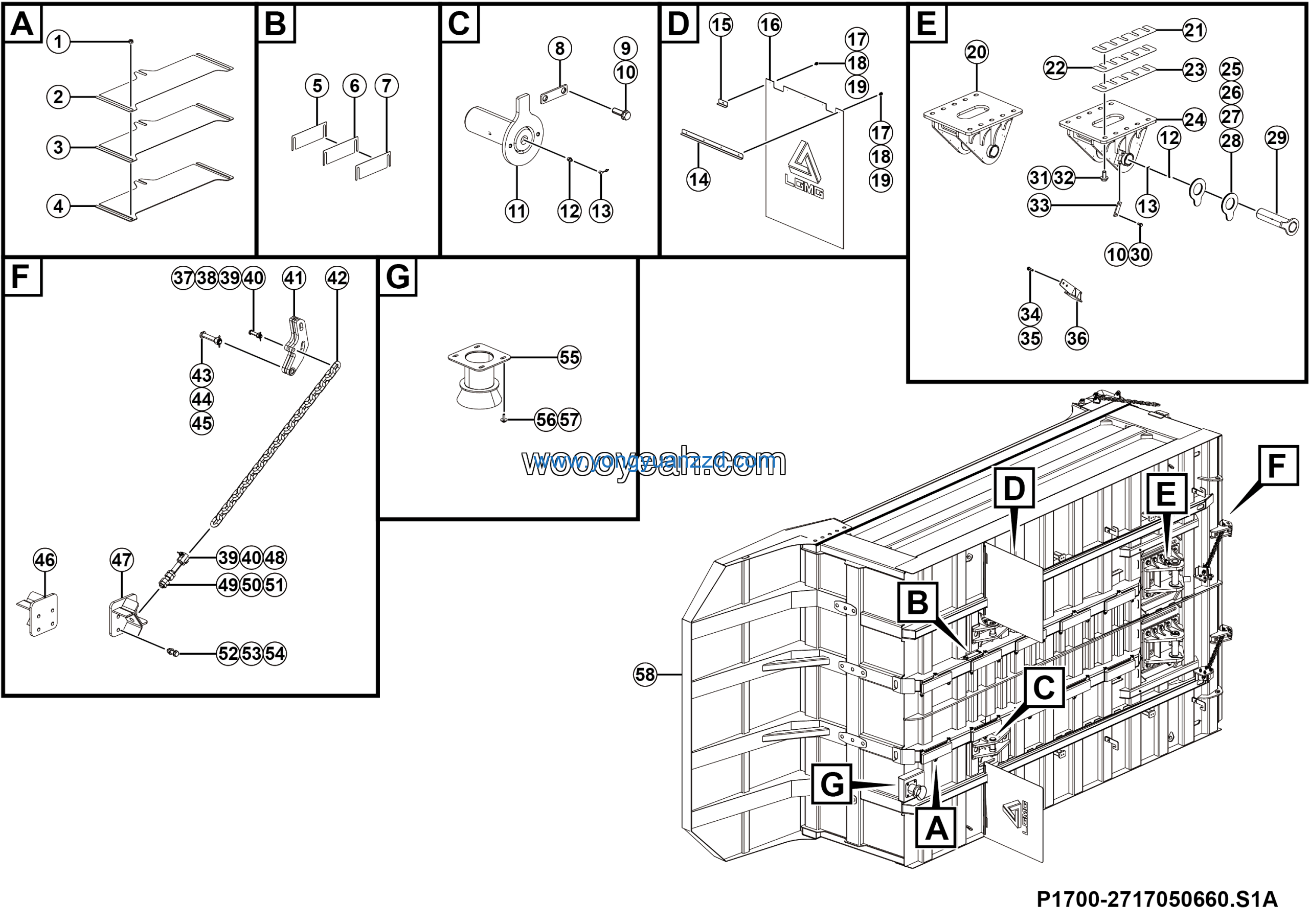

LGMG Mine Truck 2026 – Body assy – P1700-2717050660.S1A
Category: 2026 > Mine Truck > RTH100 > R1000Y3A0A243
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 8 |
| 2 | Plate | 27170305741 | 2 |
| 3 | Grease nipple JB7940.1-M10*1 | 4030000065 | 4 |
| 4 | Butter nozzle cap JXHF-00006 | 4120000015 | 4 |
| 5 | Plate | 27170356911 | 2 |
| 6 | Plate | 27170356901 | 2 |
| 7 | Mudflap 1140*1225*6 | 27170495531 | 2 |
| 8 | Bolt GB5783-M8*30flznyc-8.8-480 | 4011010708 | 10 |
| 9 | Washer GB96.1-8flZnyc-300HV-480 | 4015010289 | 20 |
| 10 | Nut GB6185.1-M8flZnyc-10-480 | 4013010378 | 10 |
| 11 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 30 |
| 12 | Rh body hinge lug wldmt | 27170464841 | 1 |
| 13 | Plate | 27170339382 | 4 |
| 14 | Plate | 27170339372 | 4 |
| 15 | Plate | 27170339362 | 4 |
| 16 | Lh body hinge lug wldmt | 27170464851 | 1 |
| 17 | Plate | 27170279581 | 4 |
| 18 | Plate | 27170357811 | 4 |
| 19 | Plate | 27170357821 | 4 |
| 20 | Plate | 27170279571 | 4 |
| 21 | Part | 27170294882 | 2 |
| 22 | Shim for shock pad 600*260*1 | 27170373101 | 10 |
| 23 | Bolt GB5783-M16*35flZnyc-10.9-480 | 4011010864 | 4 |
| 24 | Bolt gb5786-m30*2*70flznyc-12.9-480 | 4011010544 | 20 |
| 25 | WASHER | 4015010208 | 20 |
| 26 | Cover plate for pin mount 140*40*10 | 27170425901 | 2 |
| 27 | Bolt GB5783-M10*25flznyc-8.8-480 | 4011010722 | 2 |
| 28 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 2 |
| 29 | Limit valve bracket wldmt | 27170450501 | 1 |
| 30 | Pin 18*87 | 27170392941 | 2 |
| 31 | Washer GB97.1-16-300HV | 4015000314 | 2 |
| 32 | Nut gb6178-m16flznyc-8-480 | 4013010602 | 4 |
| 33 | Shim for shock pad 600*260*2 | 27170373111 | 10 |
| 34 | Pin GB91-5*45flZnyc-Q235A-480 | 4016010256 | 4 |
| 35 | Locking hook welding | 27170366801 | 2 |
| 36 | Φ18 chain (27 links) | 27170310441 | 2 |
| 37 | Plate | 27170366972 | 2 |
| 38 | Nut gb6178-m24flznyc-10-480 | 4013010603 | 2 |
| 39 | Pin gb91-6.3*63flzncy-q235a-480 | 4016010245 | 2 |
| 40 | Plate | 27170279321 | 1 |
| 41 | Plate | 27170279311 | 1 |
| 42 | Plate | 27170366964 | 2 |
| 43 | Plate | 27170310571 | 2 |
| 44 | Shim for shock pad 600*260*3 | 27170373121 | 10 |
| 45 | Nut gb6170-m30flznyc-8-480 | 4013010604 | 4 |
| 46 | Nut gb6172.1-m30flznyc-8-480 | 4013010605 | 4 |
| 47 | Bolt GB5783-M20*65flZnyc-10.9-480 | 4011010868 | 8 |
| 48 | Washer GB97.1-20flZnyc-300HV-480 | 4015010338 | 16 |
| 49 | Nut GB6185.1-M20flZnyc-12-480 | 4013010256 | 8 |
| 50 | Assembly | 27170315931 | 1 |
| 51 | Bolt GB5783-M10*30flznyc-8.8-480 | 4011010707 | 4 |
| 52 | Washer GB96.1-10flZnyc-300HV-480 | 4015010278 | 4 |
| 53 | Body shell | 27170498452 | 1 |
| 54 | Shim 300*100*0.5 | 27170431021 | 3 |
| 55 | Shim 300*100*1 | 27170431031 | 3 |
| 56 | Shim 300*100*1.5 | 27170431041 | 3 |
| 57 | Pin hold-down plate 110*30*6 | 27170425911 | 2 |
| 58 | Bolt gb5782-m16*50flznyc-8.8-480 | 4011011589 | 4 |
