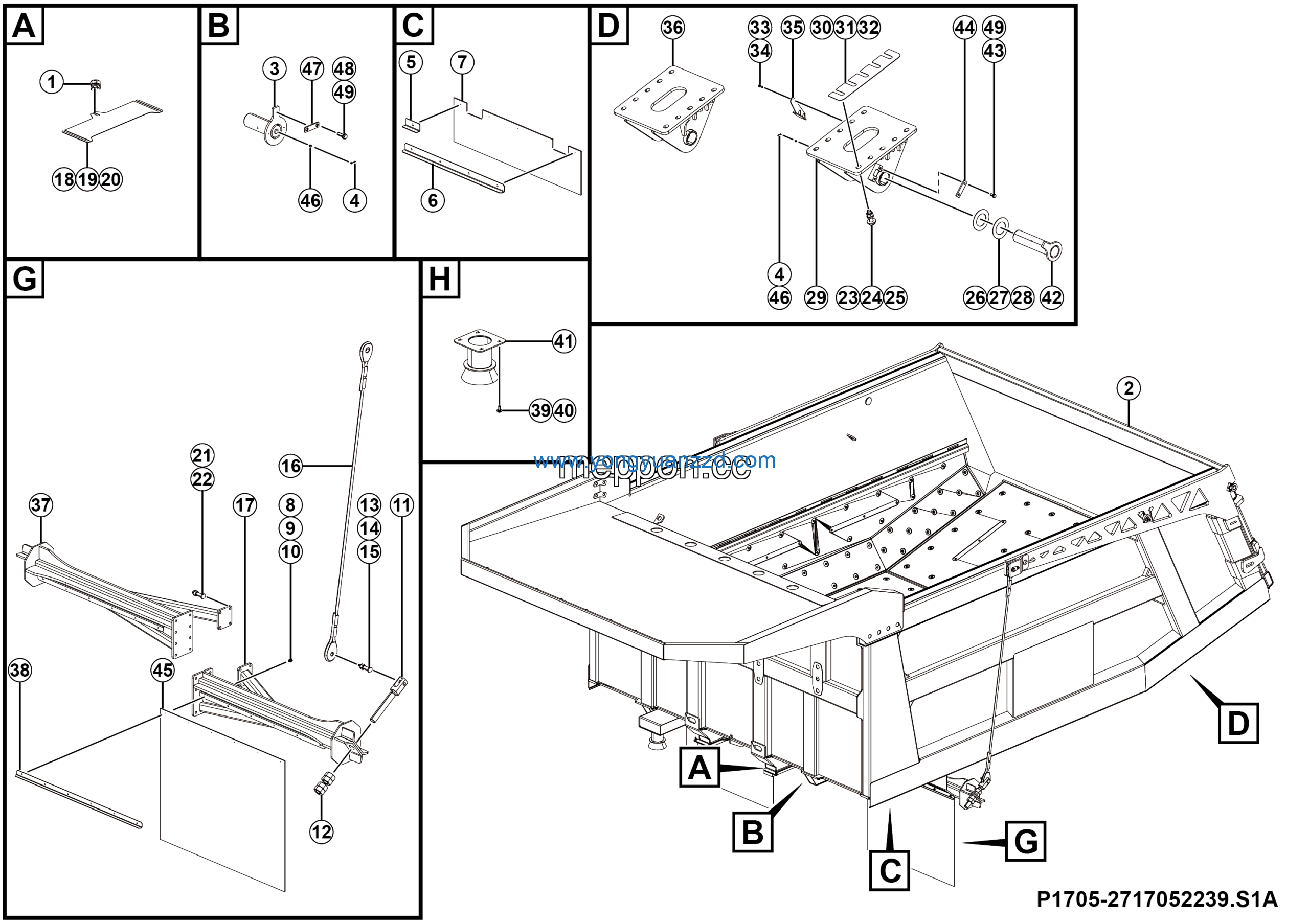

LGMG Mine Truck 2026 – Body assy – P1705-2717052239.S1A
Category: 2026 > Mine Truck > RTH100 > R1000Y3A0A241
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB96.1-8EpZn-300HV | 4015000256 | 44 |
| 2 | Clevis | 27170413961 | 2 |
| 3 | Nut gb6170-m48flznyc-10-480 | 4013010561 | 8 |
| 4 | Pin 26*105 | 27170405611 | 2 |
| 5 | Nut GB6178-M24EpZn-10 | 4013010219 | 2 |
| 6 | Pin GB91-6.3*50EpZn-Q235A | 4016000040 | 2 |
| 7 | Steel rope assy | 27170527751 | 2 |
| 8 | Lh brachet wldmt | 27170460051 | 1 |
| 9 | Shim for shock pad 600*260*3 | 27170373121 | 8 |
| 10 | Shim for shock pad 600*260*1 | 27170373101 | 8 |
| 11 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 24 |
| 12 | Shim for shock pad 600*260*2 | 27170373111 | 8 |
| 13 | Bolt gb5783-m16*35flznyc-12.9-480 | 4011011834 | 24 |
| 14 | Washer GB97.1-16EpZn-300HV | 4015000181 | 24 |
| 15 | WASHER | 4015010208 | 20 |
| 16 | Six angle with the shoulder self-locking nut | 27120103842 | 20 |
| 17 | Bolt GB5782-M30*110-10.9 | 4011000696 | 20 |
| 18 | Plate | 27170279582 | 4 |
| 19 | Plate | 27170357822 | 4 |
| 20 | Plate | 27170357812 | 4 |
| 21 | Lh body hinge lug wldmt | 27170471221 | 1 |
| 22 | Body shell | 27170522401 | 1 |
| 23 | Body hinge base shim 710*150*3 | 27170431751 | 4 |
| 24 | Body hinge base shim 710*150*2 | 27170431741 | 4 |
| 25 | Body hinge base shim 710*150*1 | 27170431731 | 4 |
| 26 | Bolt GB5783-M10*25flznyc-8.8-480 | 4011010722 | 2 |
| 27 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 2 |
| 28 | Limit valve bracket wldmt | 27170519521 | 1 |
| 29 | Rh body hinge lug wldmt | 27170471231 | 1 |
| 30 | Rh bracket wldmt | 27170468661 | 1 |
| 31 | Fender long hold-down plate 1414*45*30 | 27170413951 | 2 |
| 32 | Washer GB96.1-10flZnyc-300HV-480 | 4015010278 | 4 |
| 33 | Plate | 27170305741 | 2 |
| 34 | Bolt GB5783-M10*30flznyc-8.8-480 | 4011010707 | 4 |
| 35 | Assembly | 27170315931 | 1 |
| 36 | Part | 27170294882 | 2 |
| 37 | Bolt GB5783-M16*35flZnyc-10.9-480 | 4011010864 | 4 |
| 38 | Cover plate for pin mount 140*40*10 | 27170425901 | 2 |
| 39 | Mudflap 1404*1155*6 | 27170413931 | 2 |
| 40 | Grease nipple JB7940.1-M10*1 | 4030000065 | 4 |
| 41 | Pin hold-down plate 110*30*6 | 27170425911 | 2 |
| 42 | Bolt gb5782-m16*50flznyc-8.8-480 | 4011011589 | 4 |
| 43 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 8 |
| 44 | Butter nozzle cap JXHF-00006 | 4120000015 | 4 |
| 45 | Plate | 27170356901 | 2 |
| 46 | Plate | 27170356911 | 2 |
| 47 | Body mudflap 1004*270*6 | 27170459961 | 2 |
| 48 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 22 |
| 49 | Bolt GB5783-M8*30flZnyc-10.9-480 | 4011011032 | 22 |
