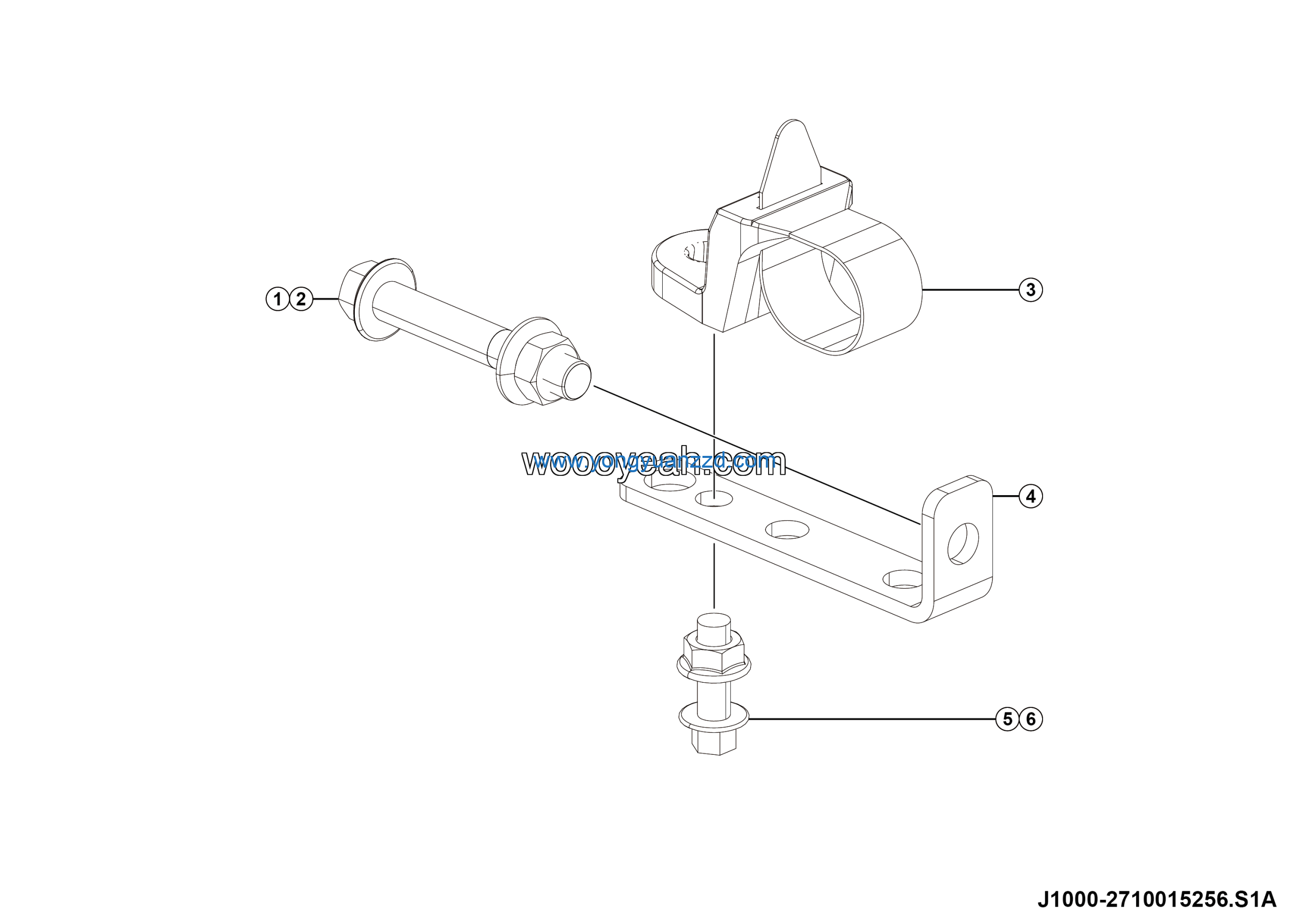

LGMG Mine Truck 2026 – Bracket assy – J1000-2710015256.S1A
Category: 2026 > Mine Truck > MTH126M > C1260Y3A0A205
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt gb16674.1-m10*65flznyc-8.8-480 | 4011011903 | 1 |
| 2 | Nut GB6177.1-M10flZnyc-8-480 | 4013010375 | 1 |
| 3 | Cable tie HS-J117 | 4130704969 | 1 |
| 4 | Plate | 27010113352 | 1 |
| 5 | Bolt GB16674.1-M8*25flZnyc-8.8-480 | 4011010994 | 1 |
| 6 | Nut GB6177.1-M8flZnyc-8-480 | 4013010386 | 1 |
