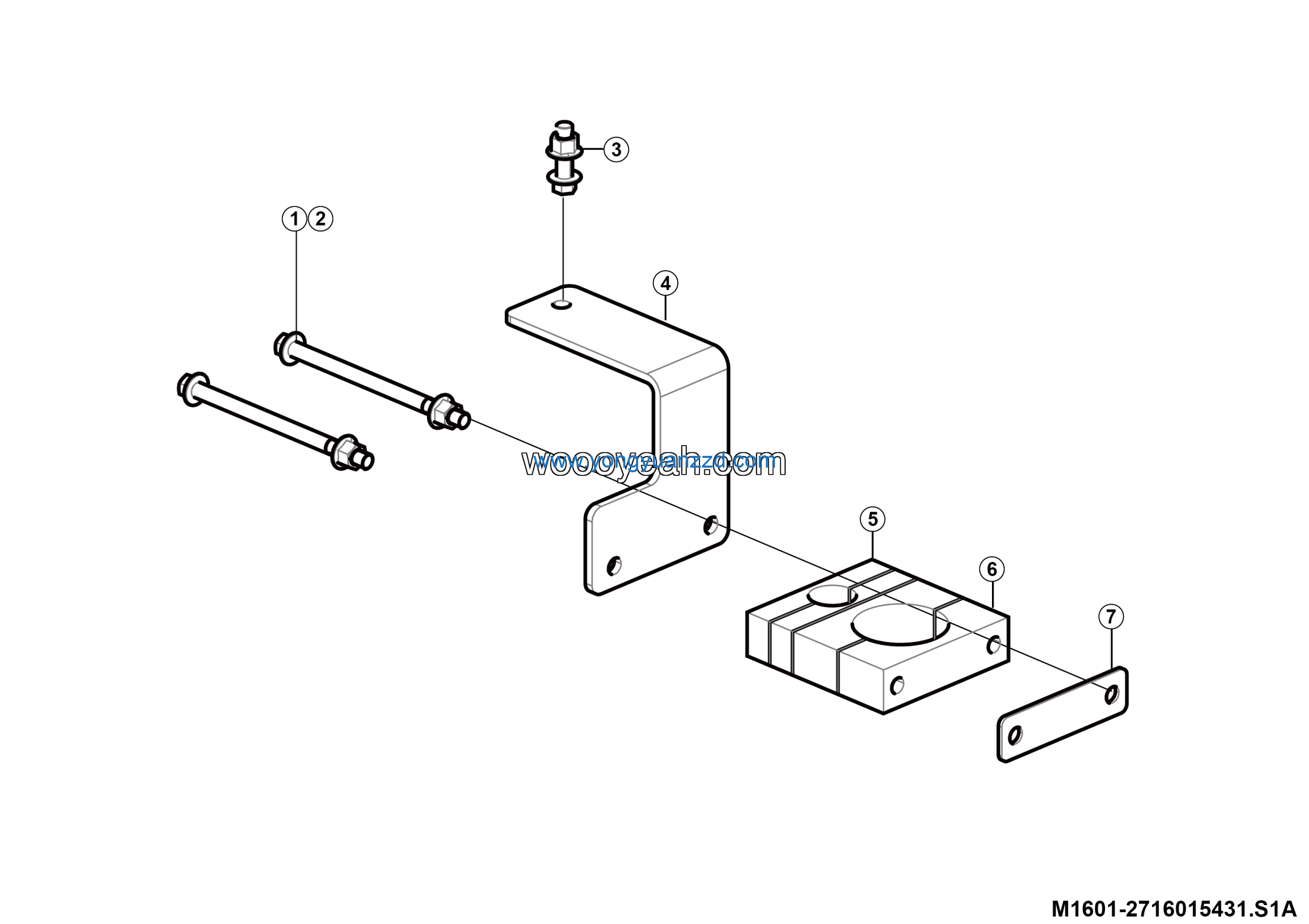

LGMG Mine Truck 2026 – Bracket assy – M1601-2716015431.S1A
Category: 2026 > Mine Truck > MTH116 > C1160Y3A0A006
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt gb16674.1-m10*150flznyc-8.8-480 | 4011012006 | 2 |
| 2 | Nut gb6187.1-m10flznyc-8-480 | 4013010628 | 3 |
| 3 | Bolt GB16674.1-M10*35flZnyc-8.8-480 | 4011011104 | 1 |
| 4 | Bracket 260*50*121 | 27160154321 | 1 |
| 5 | Pipe clamp 42 | 27160154332 | 2 |
| 6 | Pipe clamp 60-110*30*40 | 27160148811 | 2 |
| 7 | Cover plate 110*30*3 | 27160148781 | 1 |
