LGMG Mine Truck 2026 – Chassis elec system – K2002-2720022687.S1C
Category: 2026 > Mine Truck > MTH126M > C1260Y3A0A207

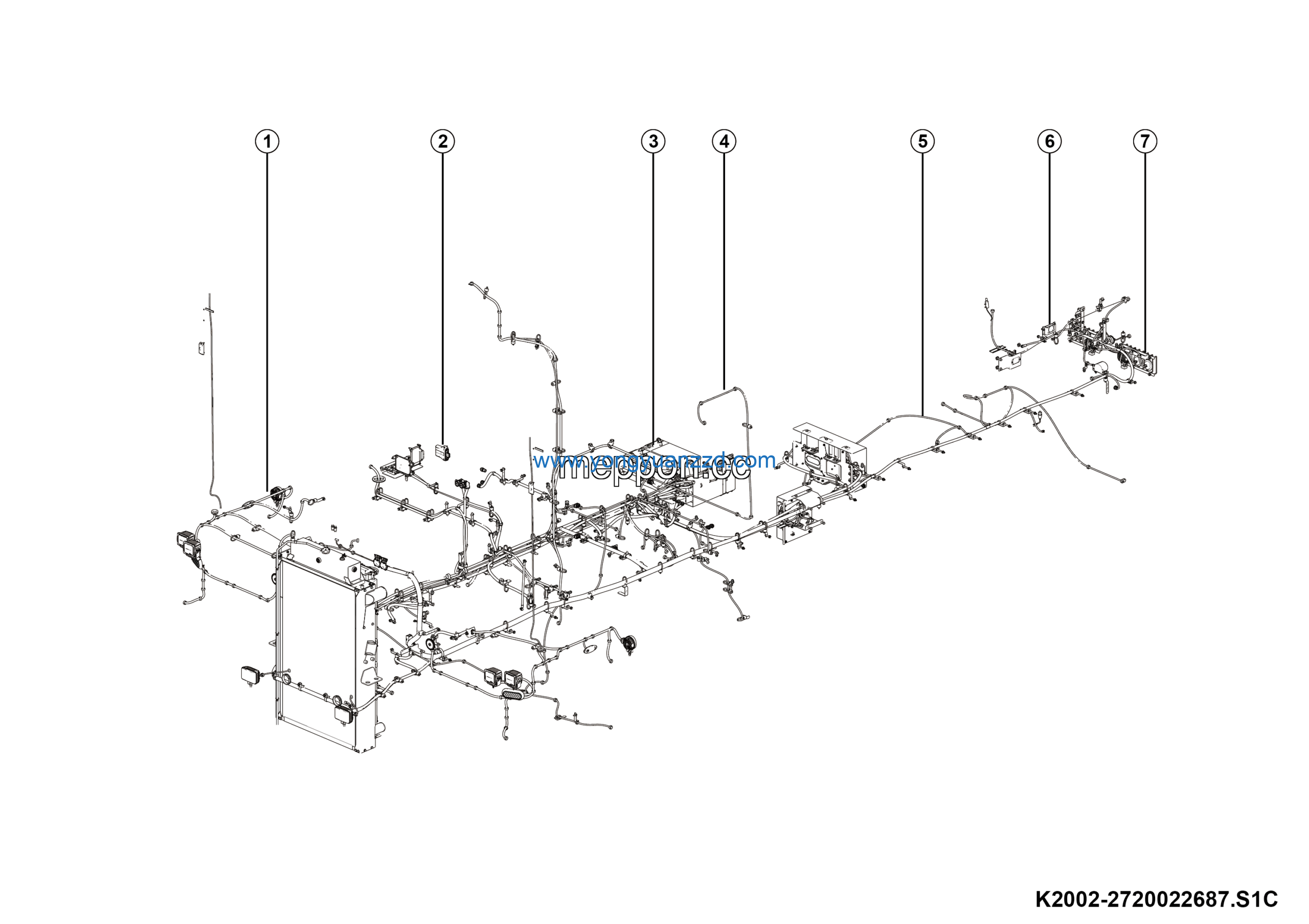

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Covering elec module | 27200229211 | 1 |
| 2 | Control assy | 27200225311 | 1 |
| 3 | Battery box elec module | 27200226891 | 1 |
| 4 | Motor harness assy | 27200226851 | 1 |
| 5 | Frame harness assy | 27200226901 | 1 |
| 6 | Chassis mid elec module | 27200239201 | 1 |
| 7 | Tail signal module | 27200239221 | 1 |
