LGMG Mine Truck 2026 – Connection mount assy – I1401-2740012396.S1A
Category: 2026 > Mine Truck > MTH126M > C1260Y3A0A205

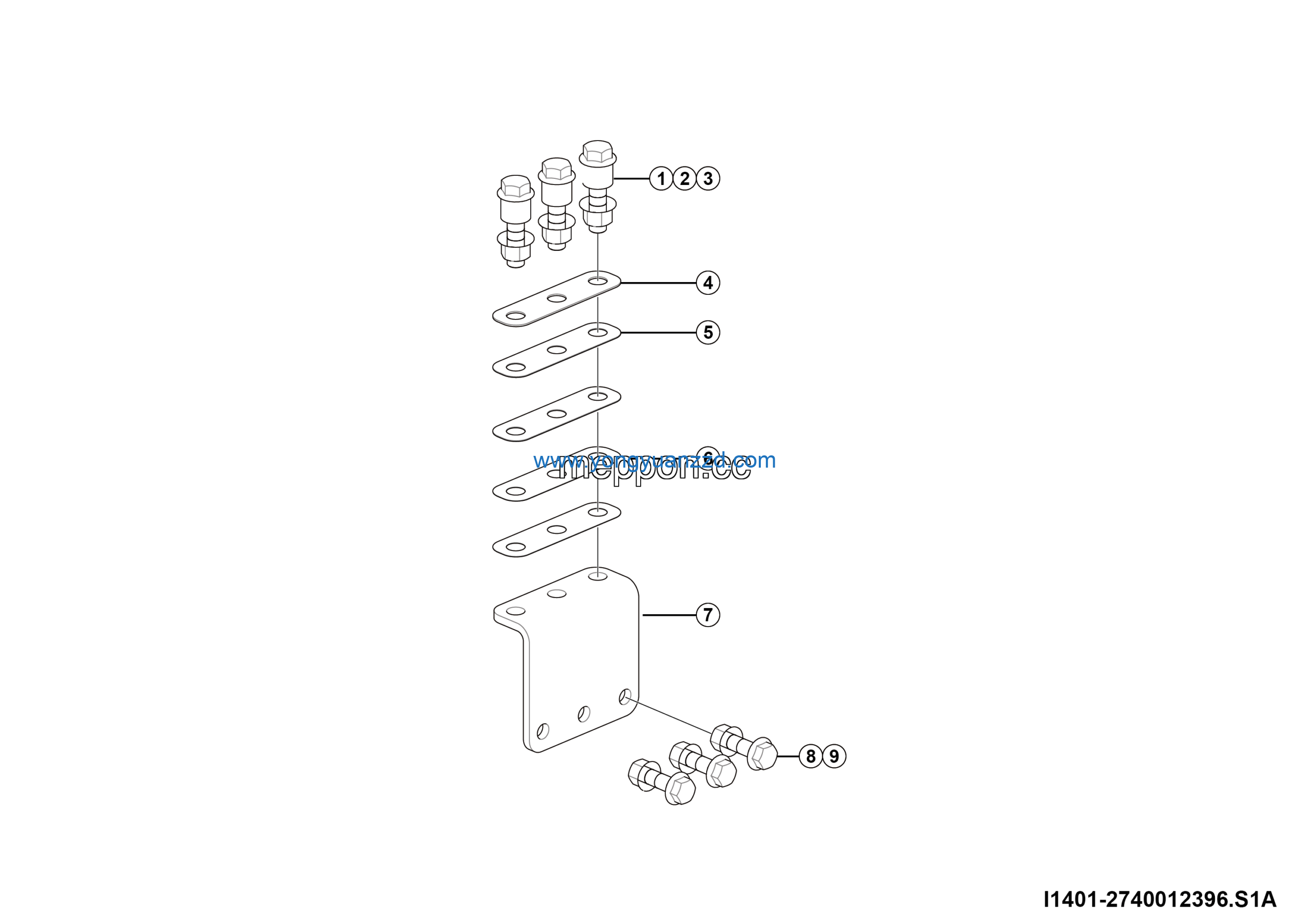

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt gb5789-m20*90flznyc-12.9-480 | 4011011969 | 3 |
| 2 | Auxiliary frame | 27400110953 | 3 |
| 3 | Nut gb6187.1-m20flznyc-12-480 | 4013010634 | 3 |
| 4 | Shim 184*60*2 | 27400121171 | 1 |
| 5 | Shim 184*60*1 | 27400121181 | 2 |
| 6 | Shim 184*60*0.5 | 27400121191 | 2 |
| 7 | Lwr connection mount wldmt | 27400123161 | 1 |
| 8 | Bolt gb5789-m18*1.5*70flznyc-12.9-480 | 4011011960 | 3 |
| 9 | Nut gb6187.2-m18*1.5flznyc-12-480 | 4013010636 | 3 |
