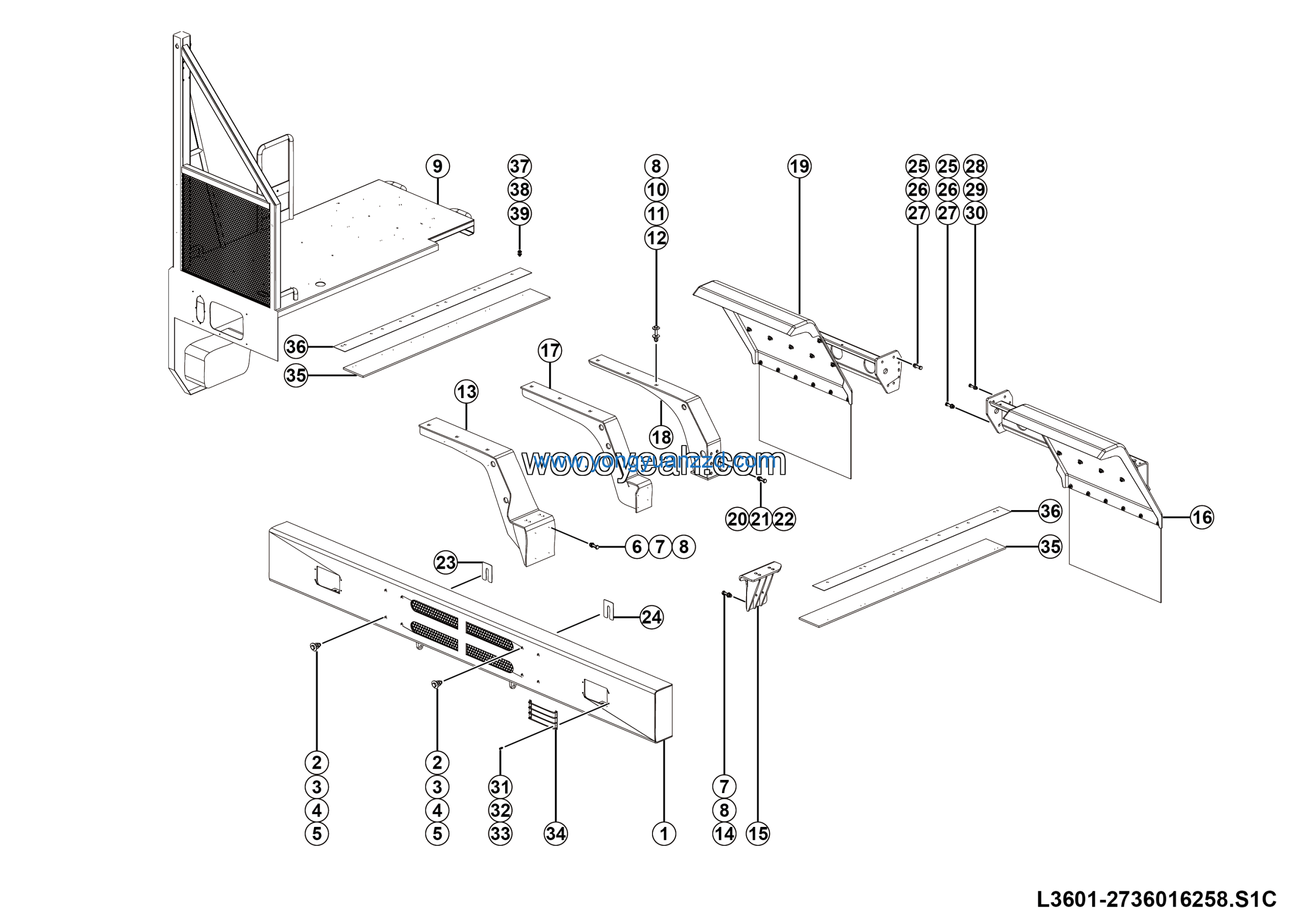

LGMG Mine Truck 2026 – Cover assembly – L3601-2736016258.S1C
Category: 2026 > Mine Truck > MT86H > M086HWG94
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5782-M14*90EpZn-8.8 | 4011000420 | 9 |
| 2 | Washer GB96.1-14EpZn-300HV | 4015000188 | 18 |
| 3 | Nut GB6170-M14EpZn-8 | 4013000013 | 9 |
| 4 | Walkway fr bracket wldmt | 27360200031 | 1 |
| 5 | Bolt GB5783-M14*60EpZn-8.8 | 4011000266 | 4 |
| 6 | Front support base | 27130102495 | 1 |
| 7 | Left fender assy | 27360111443 | 1 |
| 8 | Walkway mid bracket wldmt | 27360200021 | 1 |
| 9 | Walkway rr bracket wldmt | 27360200041 | 1 |
| 10 | Right fender assy | 27360111433 | 1 |
| 11 | Bumper assembly | 27130114152 | 1 |
| 12 | Bolt GB5783-M16*55EpZn-10.9 | 4011000562 | 6 |
| 13 | Washer GB97.1-16EpZn-300HV | 4015000181 | 6 |
| 14 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 6 |
| 15 | Trimmed gasket | 27130107681 | 4 |
| 16 | Trimmed gasket | 27130107671 | 4 |
| 17 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 8 |
| 18 | Washer GB97.1-12EpZn-300HV | 4015000168 | 8 |
| 19 | Bolt GB5783-M12*50EpZn-8.8 | 4011000092 | 8 |
| 20 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 21 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
| 22 | Bolt GB5783-M16*55EpZn-8.8 | 4011000612 | 8 |
| 23 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 2 |
| 24 | Nut GB6170-M5EpZn-8 | 4013010029 | 8 |
| 25 | Washer GB97.1-5EpZn-300HV | 4015000110 | 8 |
| 26 | Bolt GB16674.1-M5*20EpZn-8.8 | 4011010518 | 8 |
| 27 | Fog light protecting cap | 27130102161 | 2 |
| 28 | Rubber | 27360112601 | 2 |
| 29 | Mudflap supporting plate | 27360112581 | 2 |
| 30 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 12 |
| 31 | Washer GB96.1-8EpZn-300HV | 4015000256 | 24 |
| 32 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 12 |
| 33 | Washer GB96.1-16EpZn-300HV | 4015000279 | 8 |
| 34 | Washer GB1230-16EpZn-45 | 4015000001 | 8 |
| 35 | Nut GB6170-M16EpZn-8 | 4013000016 | 8 |
| 36 | Bolt GB5783-M14*55EpZn-8.8 | 4011010254 | 6 |
| 37 | Washer GB97.1-14EpZn-300HV | 4015000177 | 10 |
| 38 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 19 |
| 39 | Fixed right side platform | 4190709040 | 1 |
