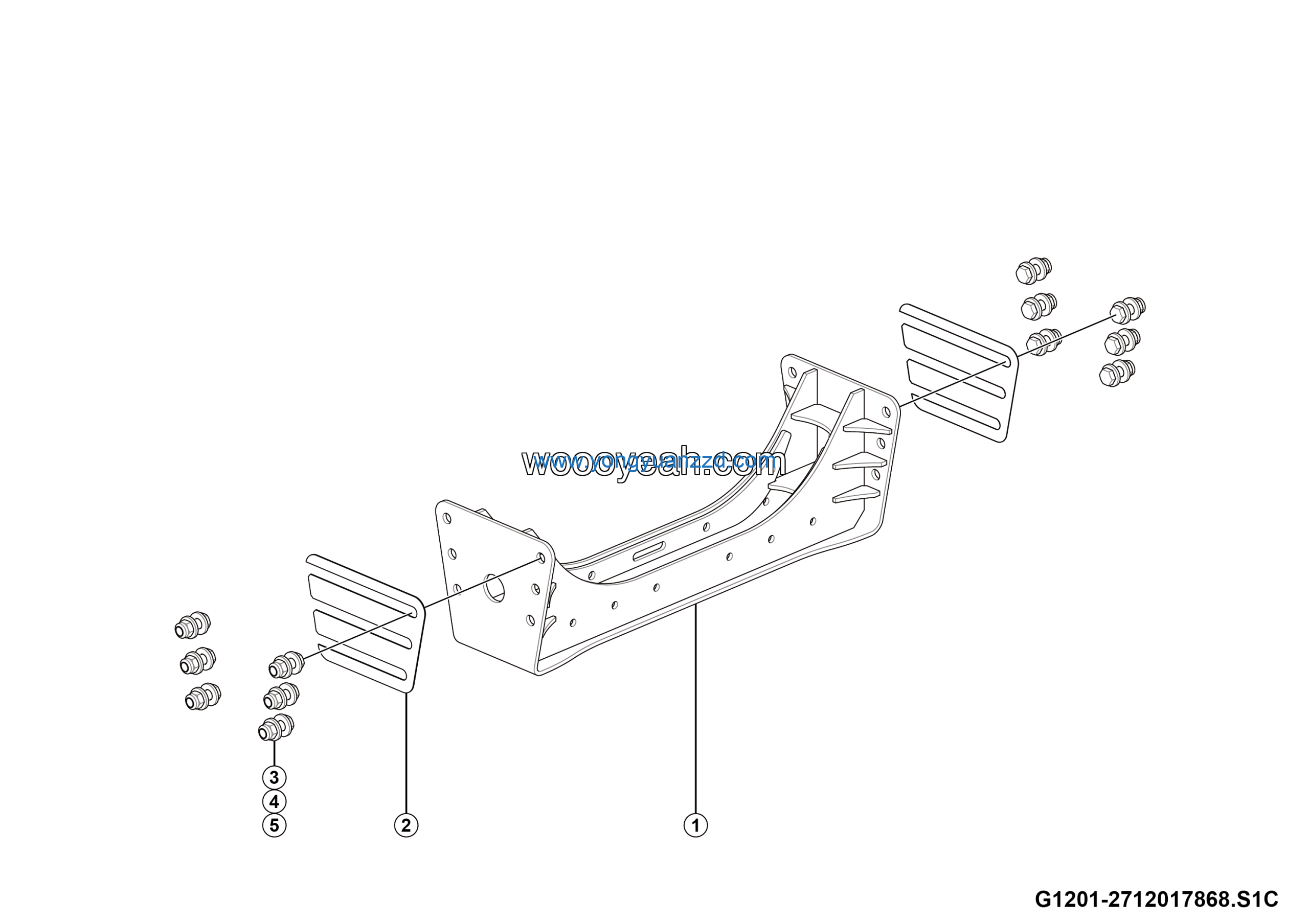

LGMG Mine Truck 2026 – Crossbeam 2 assy – G1201-2712017868.S1C
Category: 2026 > Mine Truck > MT50 > M0500Y3E0M402
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Crossbeam ii wldmt | 27120183871 | 1 |
| 2 | Shim 0.5mm | 27120179361 | 6 |
| 3 | Bolt GB5786-M14*1.5*40flZnyc-12.9-480 | 4011010551 | 12 |
| 4 | Nut GB6185.2-M14*1.5flZnyc-12-480 | 4013010568 | 12 |
| 5 | Washer gb1230-14flznyc-45-480 | 4015010627 | 24 |
