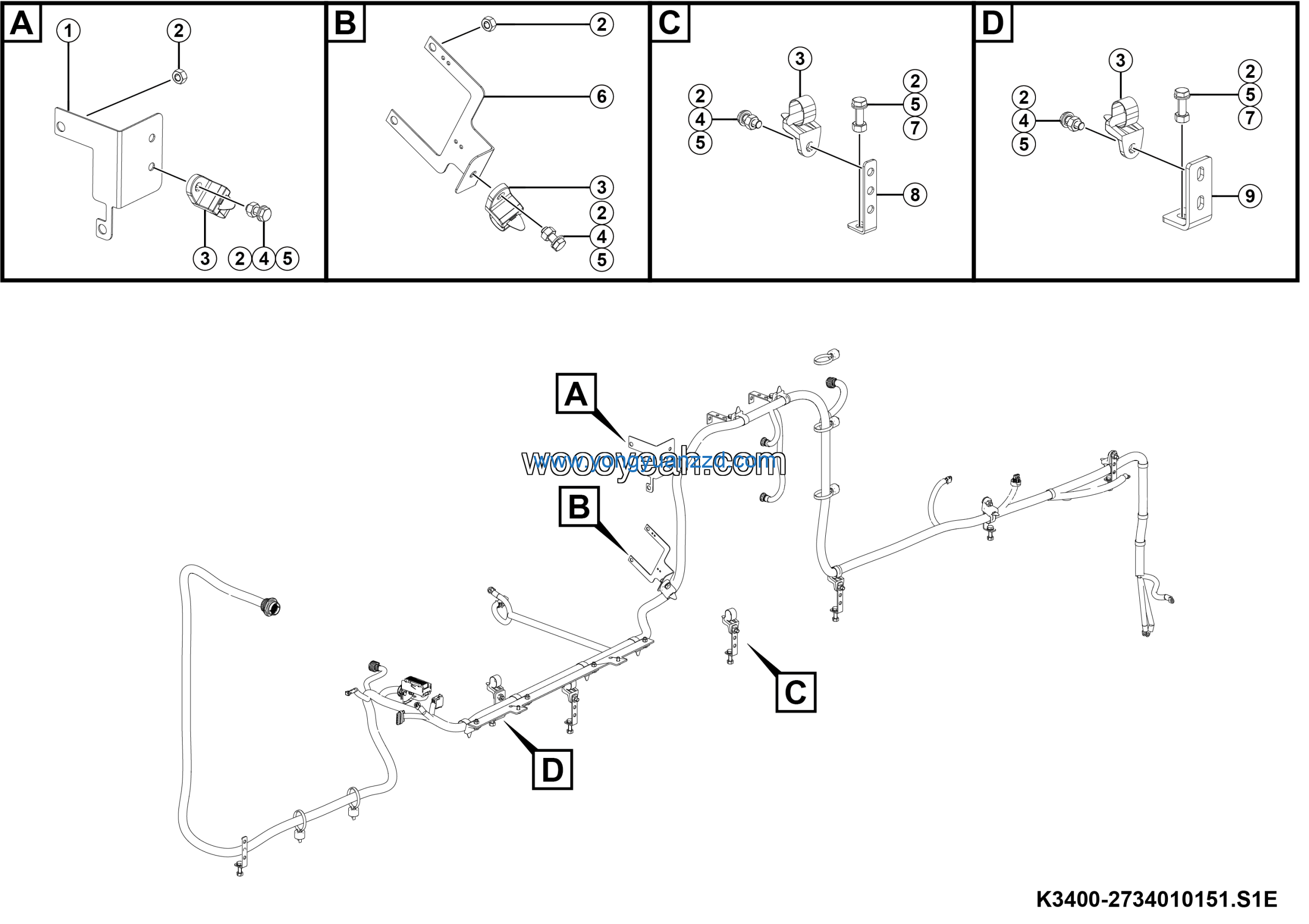

LGMG Mine Truck 2026 – Engine wiring harness fixed system – K3400-2734010151.S1E
Category: 2026 > Mine Truck > MT86H > M086HWG90
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27340101592 | 1 |
| 2 | Nut GB6170-M10EpZn-8 | 4013000007 | 19 |
| 3 | Cable tie HS-J117 | 4130704969 | 8 |
| 4 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 8 |
| 5 | Washer GB97.1-10EpZn-300HV | 4015000162 | 15 |
| 6 | Plate | 27340101581 | 1 |
| 7 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 7 |
| 8 | Holder | 27200147051 | 6 |
| 9 | Bracket | 27100105951 | 1 |
