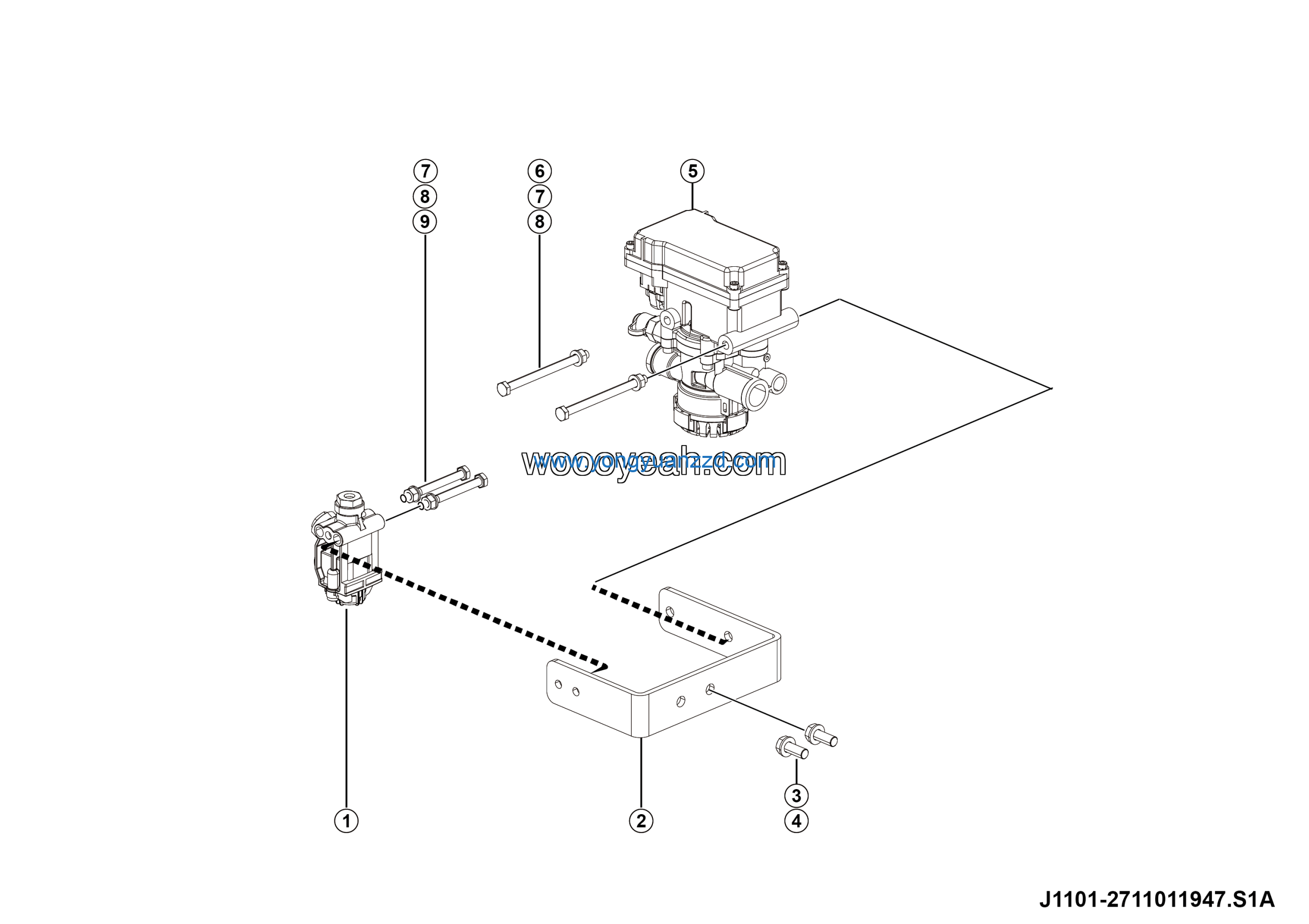

LGMG Mine Truck 2026 – Epb module assy – J1101-2711011947.S1A
Category: 2026 > Mine Truck > RTE136 > R1361E0A0A403
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | 2-position 2-way solenoid valve lg10-dcf-01 | 4120719466 | 1 |
| 2 | Epb bracket | 27100146801 | 1 |
| 3 | Bolt GB5783-M10*25flznyc-8.8-480 | 4011010722 | 2 |
| 4 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 2 |
| 5 | EPB module 35083981860 | 4120712795 | 1 |
| 6 | Bolt GB5782-M8*110flZnyc-8.8-480 | 4011011168 | 2 |
| 7 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 4 |
| 8 | Nut GB6170-M8flznyc-8-480 | 4013010291 | 4 |
| 9 | Bolt GB5782-M8*80flZnyc-8.8-480 | 4011011039 | 2 |
