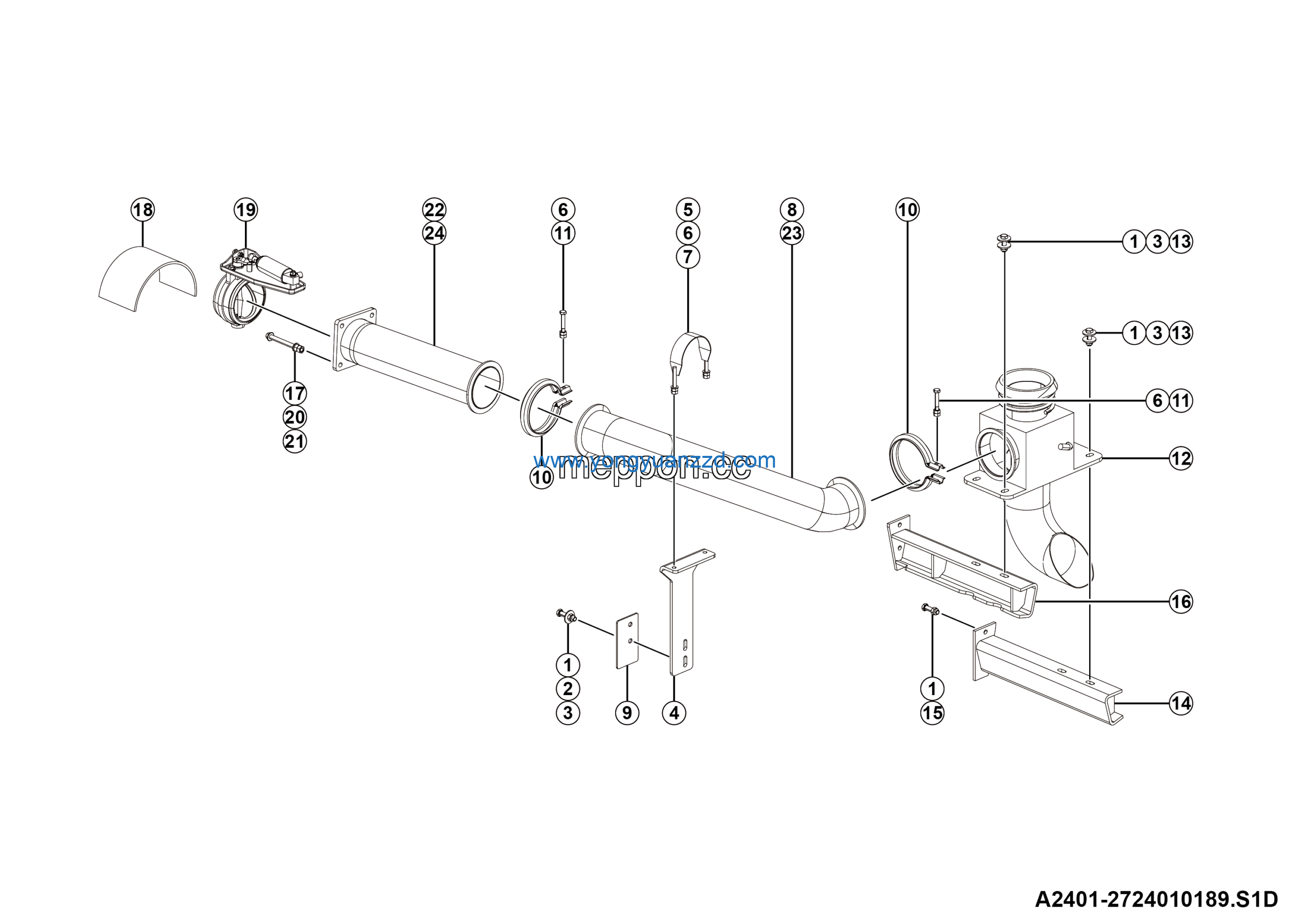

LGMG Mine Truck 2026 – Exhaust system assy – A2401-2724010189.S1D
Category: 2026 > Mine Truck > MT86H > M086HWG90
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Clamp | 4110000768 | 2 |
| 2 | Bolt GB5782-M10*70EpZn-8.8 | 4011000051 | 2 |
| 3 | Buffer box | 4110001410 | 1 |
| 4 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 4 |
| 5 | Right plate | 27240102131 | 1 |
| 6 | Bolt GB5783-M12*45EpZn-8.8 | 4011000207 | 4 |
| 7 | Left plate | 27240102111 | 1 |
| 8 | Bolt GB16674-M12*120EpZn-8.8 | 4011011420 | 4 |
| 9 | Turbocharger insulation cotton LG24-GR-002 | 4110705911 | 1 |
| 10 | Exhaust brake butterfly valve | 4110000157 | 1 |
| 11 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 10 |
| 12 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 13 | Nut GB6170-M12EpZn-8 | 4013000011 | 8 |
| 14 | Air pipe | 27240106361 | 1 |
| 15 | Exhaust pipe insulation cotton LG24-GR-003 | 4110705912 | 1 |
| 16 | Upr exhaust pipe insulation cotton FDHT-D185XA11-1 | 4110706347 | 1 |
| 17 | Bolt GB5783-M12*55EpZn-8.8 | 4011000254 | 2 |
| 18 | Washer GB96.1-12EpZn-300HV | 4015000186 | 10 |
| 19 | Frame | 27240104871 | 1 |
| 20 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
| 21 | Nut GB6170-M10EpZn-8 | 4013000007 | 8 |
| 22 | PLATE | 27240102051 | 1 |
| 23 | Lower exhaust pipe | 4110703095 | 1 |
| 24 | Adjust plate | 27240104901 | 1 |
