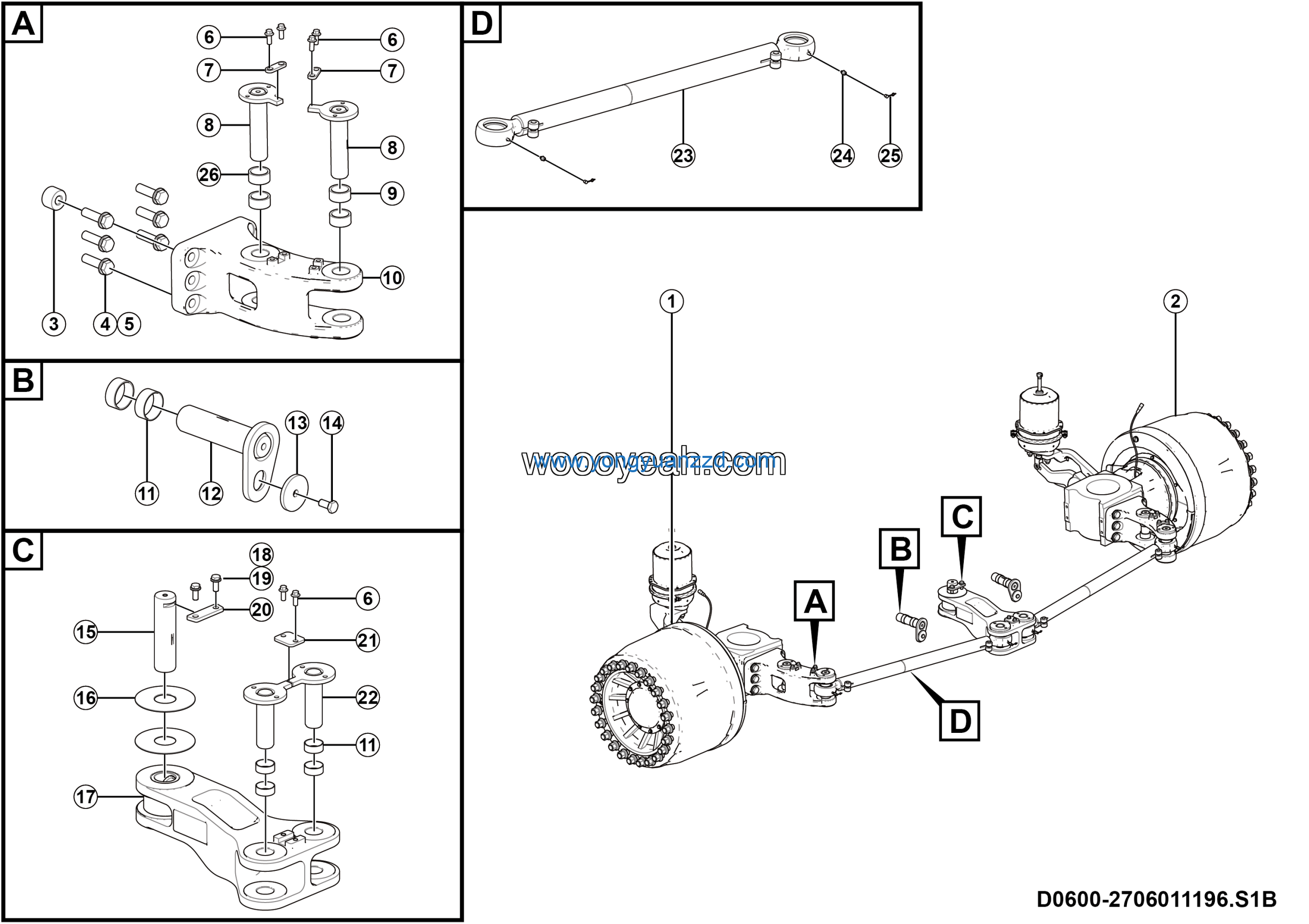

LGMG Mine Truck 2026 – Front axle installation px35t (w/ wheel rpm sensor) – D0600-2706011196.S1B
Category: 2026 > Mine Truck > RTH100 > R1000Y3A0A244
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Steering arm | 27060106931 | 2 |
| 2 | Sleeve | 27060106361 | 8 |
| 3 | Center pin wldmt | 27060109101 | 2 |
| 4 | Pin hold-down plate 55*10 | 27120178351 | 2 |
| 5 | Bolt GB5783-M10*20flZnyc-10.9-480 | 4011010880 | 2 |
| 6 | Pin shaft 50*188 | 27140227141 | 1 |
| 7 | Shim 140*50*2 | 27140220201 | 2 |
| 8 | Center arm assy | 27140220051 | 1 |
| 9 | Bolt GB5783-M12*30flZnyc-12.9-480 | 4011010610 | 2 |
| 10 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 2 |
| 11 | Lh front axle assy px35t abs | 4110708674 | 1 |
| 12 | Stop plate 100*30*8 | 27140227151 | 1 |
| 13 | Plate | 27060107081 | 1 |
| 14 | Pin | 27060106991 | 2 |
| 15 | Steering tie rod assy1101.5*φ60 | 4110708066 | 2 |
| 16 | Grease nipple JB7940.1-M10*1 | 4030000065 | 4 |
| 17 | Butter nozzle cap JXHF-00006 | 4120000015 | 4 |
| 18 | Spacer sleeve 50*5*12 | 27060112271 | 4 |
| 19 | Rh front axle assy px35t abs | 4110708675 | 1 |
| 20 | Pin | 27120116241 | 2 |
| 21 | Bolt 5783-M20*1.5*70flZnyc-12.9-480 | 4011011450 | 12 |
| 22 | Washer GB1230-20flzncy-45-480 | 4015010546 | 12 |
| 23 | Bolt GB16674.1-M10*25flZnyc-10.9-480 | 4011011623 | 10 |
| 24 | Plate | 27060107071 | 4 |
| 25 | Pin | 27060106971 | 4 |
| 26 | Sleeve | 27060106351 | 4 |
