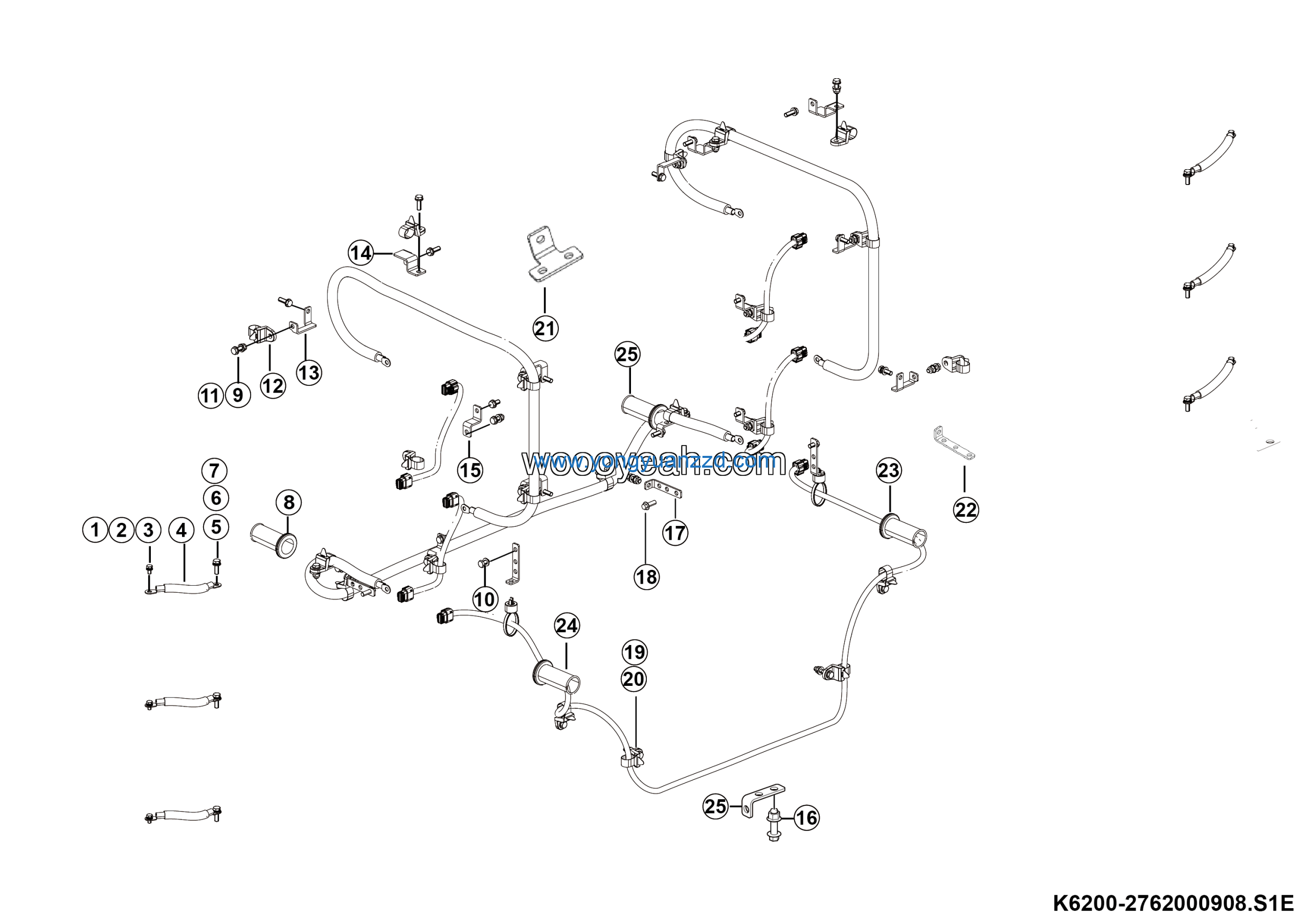

LGMG Mine Truck 2026 – Harness assy between battery boxes – K6200-2762000908.S1E
Category: 2026 > Mine Truck > MTH126M > C1260Y3A0A206
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB16674.1-M10*40flZnyc-8.8-480 | 4011011086 | 1 |
| 2 | Nut gb6187.1-m10flznyc-8-480 | 4013010628 | 19 |
| 3 | Cable tie HS-J117 | 4130704969 | 21 |
| 4 | Bracket 70*48*24 | 27620008931 | 6 |
| 5 | Bracket 82.5*42*40 | 27620009191 | 3 |
| 6 | Z-bracket 70*40*25 | 27620008551 | 4 |
| 7 | L-bracket 70*30*20 | 27620004771 | 1 |
| 8 | Bracket | 27620002681 | 6 |
| 9 | Bolt GB16674.1-M10*20flZnyc-8.8-480 | 4011010993 | 1 |
| 10 | Bolt gb16674.1-m10*45flznyc-8.8-480 | 4011011465 | 2 |
| 11 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 6 |
| 12 | Washer GB862.2-10-65Mn | 4015010586 | 6 |
| 13 | L-bracket 70*45*40 | 27620009201 | 1 |
| 14 | L-bracket 110*30*20 | 27620009631 | 1 |
| 15 | Grommet strip 62*38*18 | 27620009221 | 1 |
| 16 | Grommet strip 128*94*16 | 27620009571 | 1 |
| 17 | Grommet strip 139*113*16 | 27620009591 | 1 |
| 18 | Double sack wedge lock washer HF8 | 4190708408 | 6 |
| 19 | Washer GB97.1-8EpZn-300HV | 4015000072 | 6 |
| 20 | Grounding wire bzw-50*250 | 27620005671 | 1 |
| 21 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 6 |
| 22 | Double sack wedge lock washer HF10 | 4190708409 | 6 |
| 23 | Washer GB97.1-10EpZn-300HV | 4015000162 | 6 |
| 24 | Grommet 83*59*16 | 27620009171 | 1 |
| 25 | Bolt GB16674.1-M10*30flZnyc-8.8-480 | 4011010712 | 28 |
