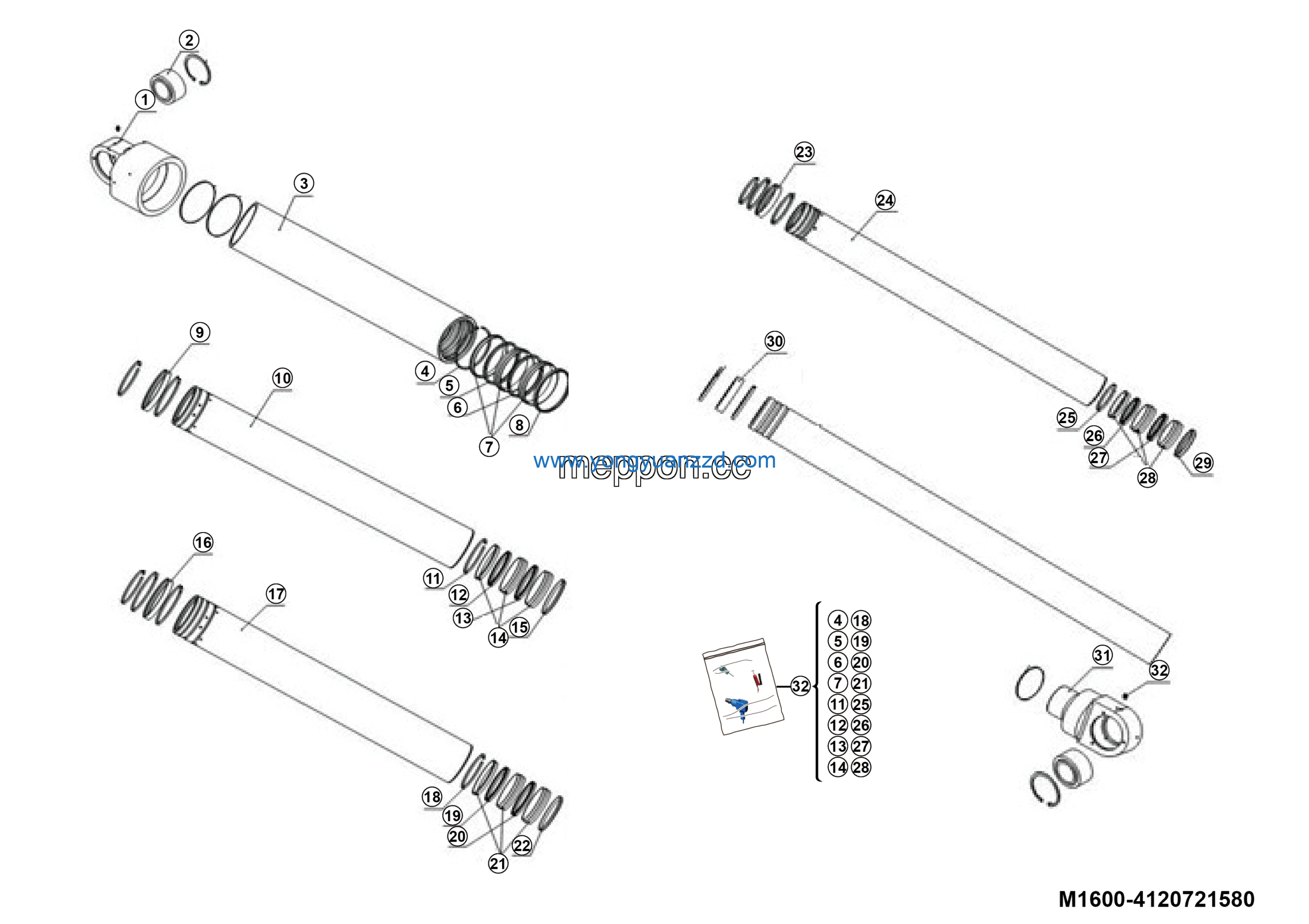

LGMG Mine Truck 2026 – Hoist cylinder 4tg-f196 x3200ee-00-1410（10574） – M1600-4120721580
Category: 2026 > Mine Truck > RTE136 > R1361E0A0A403
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | 172 BLOCKING KEY | 4120001054015 | 2 |
| 2 | SEAL | 4120001054016 | 1 |
| 3 | 172 PRIMARY SEAL | 4120001054017 | 1 |
| 4 | 172 RING-BACKUP | 4120001054018 | 5 |
| 5 | 172 DUST SEAL | 4120001054019 | 1 |
| 6 | 172 GUIDING RING | 4120001054020 | 1 |
| 7 | 172 STOP KEY | 4120001054021 | 2 |
| 8 | 150 BLOCKING KEY | 4120001054024 | 2 |
| 9 | 150 SECONDARY SEAL | 4120001054025 | 1 |
| 10 | 150 PRIMARY SEAL | 4120001054026 | 1 |
| 11 | Bearing gef80es | 4120716419009 | 1 |
| 12 | 150 RING-BACKUP | 4120001054027 | 5 |
| 13 | 150 DUST SEAL | 4120001054028 | 1 |
| 14 | RING | 4120001054029 | 1 |
| 15 | 150 STOP KEY | 4120001054030 | 2 |
| 16 | 129 BLOCKING KEY | 4120001054033 | 2 |
| 17 | 129 SECONDARY SEAL | 4120001054034 | 1 |
| 18 | SEAL | 4120001054035 | 1 |
| 19 | 129 RING-BACKUP | 4120001054036 | 5 |
| 20 | 129 DUST SEAL | 4120001054037 | 1 |
| 21 | 129 GUIDING RING | 4120001054038 | 1 |
| 22 | Snap ring | 4120712609053 | 1 |
| 23 | 129 STOP KEY | 4120001054039 | 2 |
| 24 | Grease nipple JB7940.1-M10*1 | 4030000065 | 2 |
| 25 | Seal kit | 4120712609001 | 1 |
| 26 | Stop key 320500196-K1（196） | 4120001054006 | 1 |
| 27 | Assistant seal 320500196（F1/196） | 4120001054007 | 1 |
| 28 | Main seal 320500196（Y1/196） | 4120001054008 | 1 |
| 29 | Support ring 320500196-R1（196） | 4120001054009 | 5 |
| 30 | Dust ring 320500196-Q1（196） | 4120001054010 | 1 |
| 31 | Guiding ring 320500196-X1（196） | 4120001054011 | 1 |
| 32 | Limit key 320500196-T1（196） | 4120001054012 | 1 |
