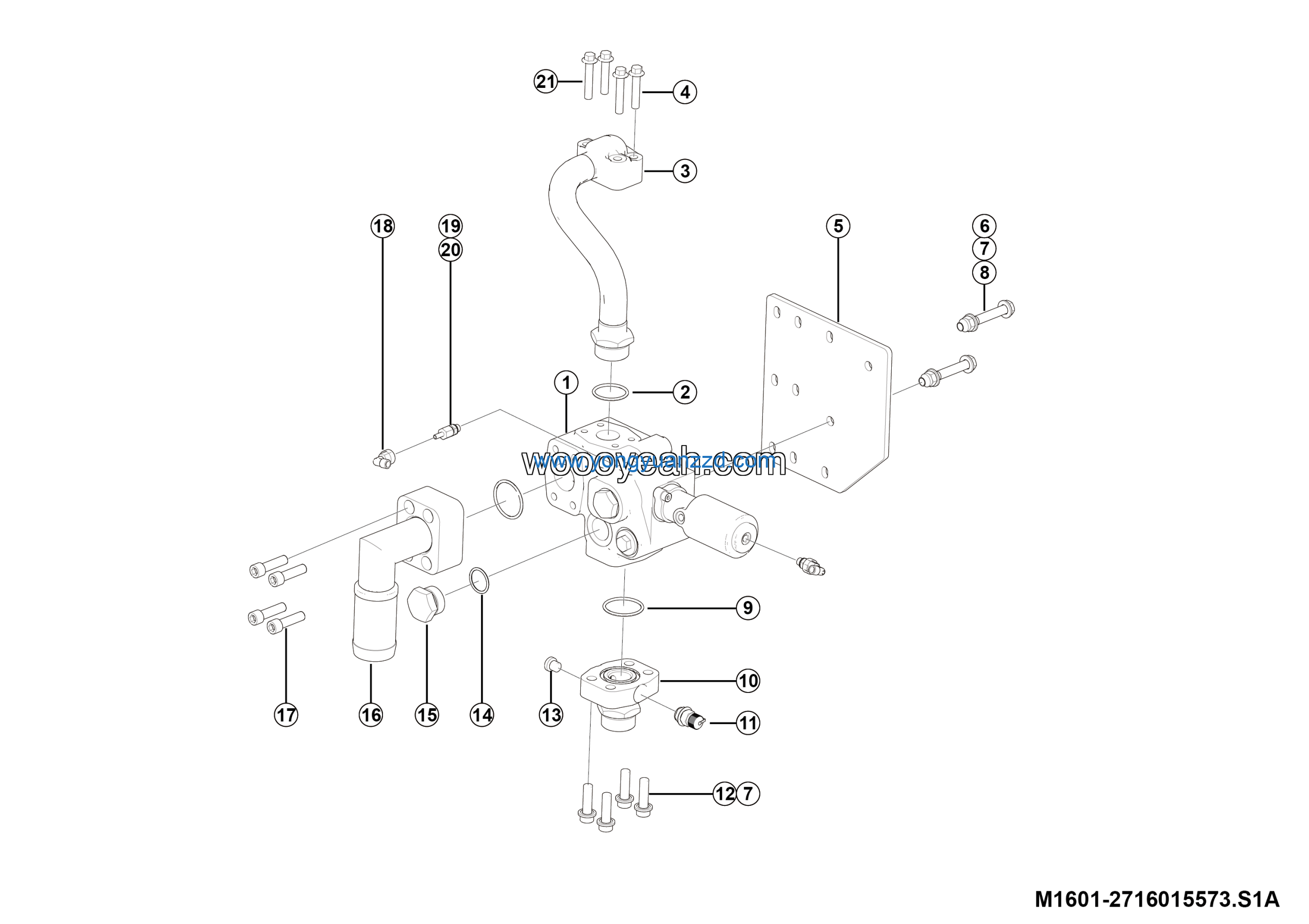

LGMG Mine Truck 2026 – Hoist valve assy – M1601-2716015573.S1A
Category: 2026 > Mine Truck > RTH100 > R1000Y3A0A240
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Oil inlet flange wldmt | 27160155421 | 1 |
| 2 | Pressure measuring joint EMA3/1/4ED | 4120001227 | 1 |
| 3 | Screw GB70.1-M12*40flZnyc-10.9-480 | 4014010281 | 4 |
| 4 | Plug VSTI 1/4EDCF | 4120707000 | 1 |
| 5 | O-ring LGB168-12931 | 4041000765 | 1 |
| 6 | Plug LGB135-03341 | 4041000192 | 1 |
| 7 | Oil return flange wldmt | 27160155431 | 1 |
| 8 | Screw GB70.1-M12*45flZnyc-8.8-480 | 4014000081 | 4 |
| 9 | Combination joint LGB143-01205 | 4041010126 | 2 |
| 10 | Vertical nipple | 27130111131 | 2 |
| 11 | Lifting valve QKV32-00（E） | 4120711091 | 1 |
| 12 | Copper washer 10 | 27100101091 | 2 |
| 13 | Bolt GB16674.1-M10*55flZnyc-8.8-480 | 4011011009 | 2 |
| 14 | O-ring GB3452.1-41.2*3.55G | 4030000244 | 1 |
| 15 | Oil outlet flange wldmt | 27160155751 | 1 |
| 16 | Bolt GB16674.1-M10*50flZnyc-8.8-480 | 4011011219 | 2 |
| 17 | Hoist valve bracket 240*230*8 | 27160155741 | 1 |
| 18 | Bolt GB5782-M12*85flZnyc-10.9-480 | 4011011083 | 2 |
| 19 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 8 |
| 20 | Nut GB6185.1-M12flZnyc-10-480 | 4013010379 | 2 |
| 21 | O-ring GB3452.1-47.5*3.55G | 4030000130 | 2 |
