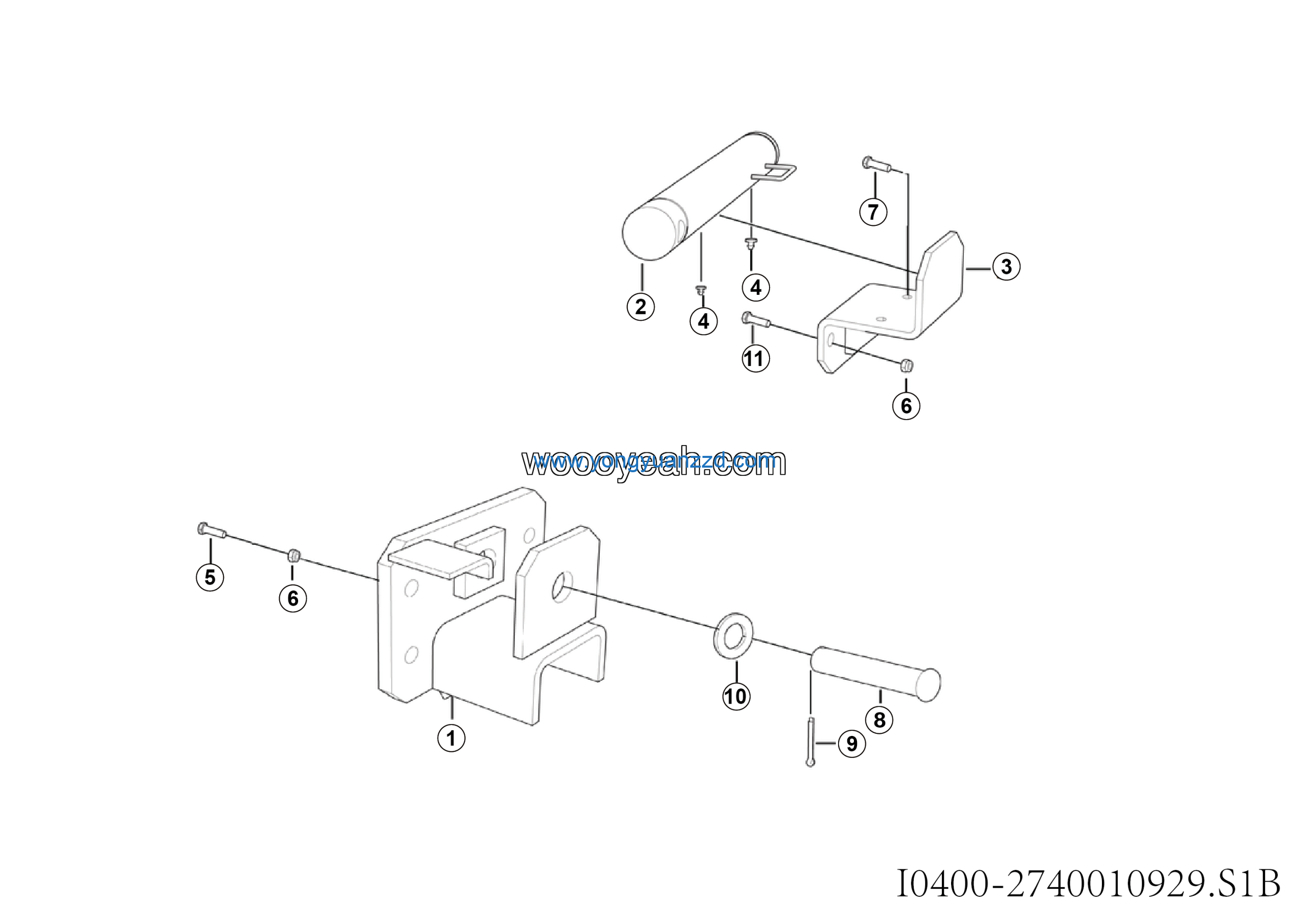

LGMG Mine Truck 2026 – Installation of safety support on the rh side of the cargo box – I0400-2740010929.S1B
Category: 2026 > Mine Truck > CMT106 > C1060Y3E0A105
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | WASHER GB97.1-34EpZn-300HV | 4015010301 | 1 |
| 2 | Bolt GB5785-M18*1.5*60flZnyc-12.9-480 | 4011010572 | 1 |
| 3 | Board | 27400109001 | 1 |
| 4 | Plate | 27170263411 | 1 |
| 5 | Plate | 27400109301 | 1 |
| 6 | Fastening bolt damping block | 27170140901 | 2 |
| 7 | Bolt QC340-M18*1.5*50flZnyc-12.9 | 4011011708 | 2 |
| 8 | Nut GB6177.2-RLM18*1.5flZnyc-12 | 4013010562 | 6 |
| 9 | Bolt qc340-m18*1.5*70flznyc-12.9-480 | 4011011843 | 3 |
| 10 | Hose assembly | 27400103401 | 1 |
| 11 | Pin GB91-6.3*50EpZn-Q235A | 4016000040 | 1 |
