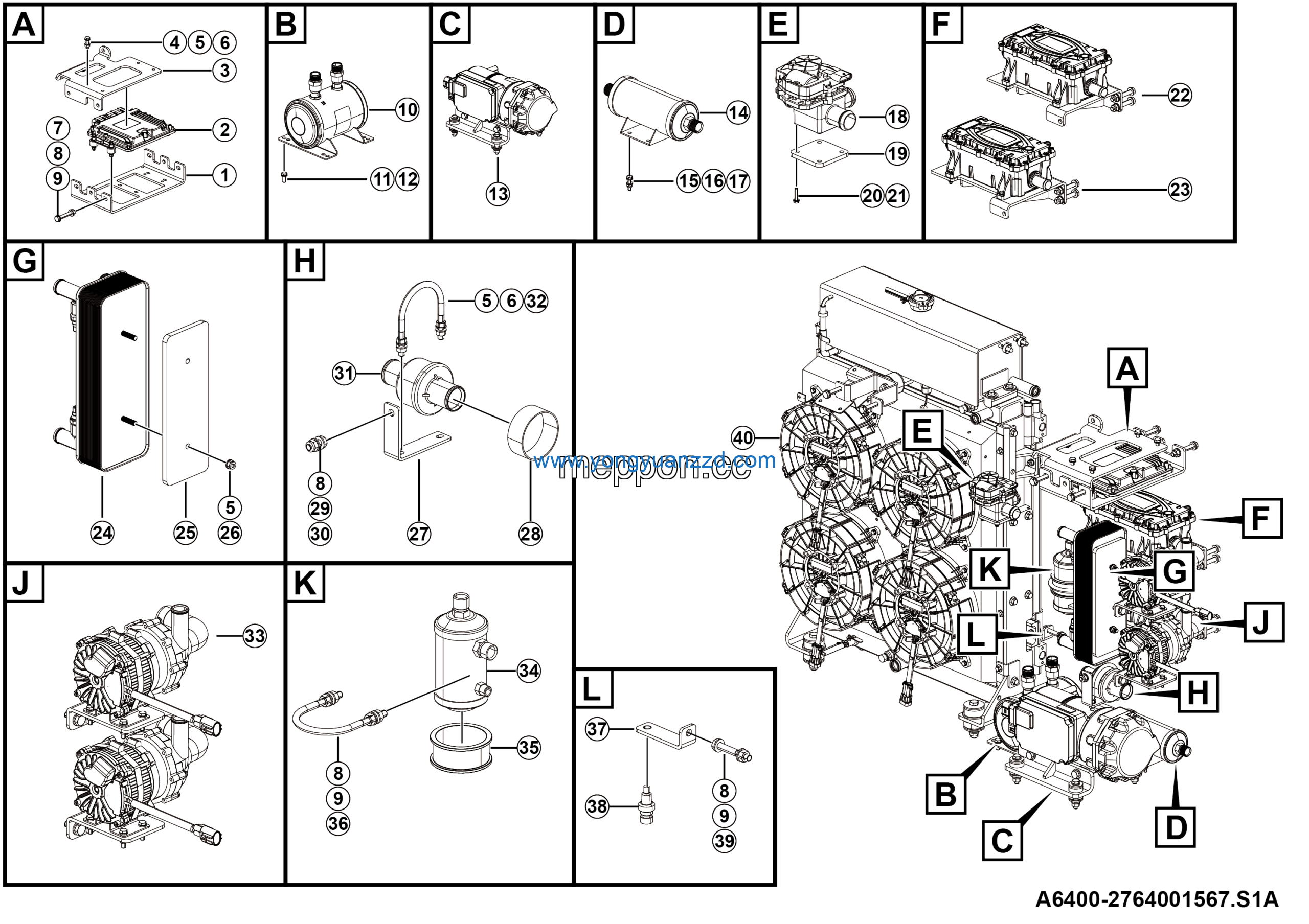

LGMG Mine Truck 2026 – Integrated thermal mgnt component assy – A6400-2764001567.S1A
Category: 2026 > Mine Truck > MTH126M > C1260Y3A0A205
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | 2.2l gas/liquid separator pskt105d-qyflq | 4190713992 | 1 |
| 2 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 4 |
| 3 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 4 | 0 | 27640000621 | 1 |
| 5 | Reservoir m24*251 | 4190714897 | 1 |
| 6 | Bolt GB5783-M6*25flZnyc-8.8-480 | 4011010731 | 4 |
| 7 | Washer GB97.1-6flZnyc-300HV-480 | 4015010284 | 8 |
| 8 | Nut GB6185.1-M6flZnyc-8-480 | 4013010414 | 4 |
| 9 | Battery three-way valve 1032000106-lc | 4110707962 | 1 |
| 10 | Rubber | 27030153321 | 1 |
| 11 | Bracket 316*168.5*60*6 | 27030159161 | 1 |
| 12 | Bolt GB5783-M4*20EpZn-8.8 | 4011000615 | 4 |
| 13 | Washer GB97.1-4EpZn-300HV | 4015000135 | 4 |
| 14 | Battery ptc2 heater assy | 27640008701 | 1 |
| 15 | Battery ptc1 heater assy | 27640008691 | 1 |
| 16 | Plate heat exchanger assy pskt105d-bh | 4190713398 | 1 |
| 17 | Rubber | 27030153261 | 1 |
| 18 | Nut GB6185.1-M8flZnyc-8-480 | 4013010314 | 2 |
| 19 | Bracket 113*89*30 | 27640003702 | 1 |
| 20 | Water filter 1021000403 | 4110707072 | 1 |
| 21 | Bolt GB5783-M10*25flznyc-8.8-480 | 4011010722 | 1 |
| 22 | Thermal mgnt sys controller pskt150b-rgl | 4130715783 | 1 |
| 23 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 1 |
| 24 | Grommet 25*2*120 | 27640003291 | 1 |
| 25 | U-bolt 9*106*92 | 27640000722 | 1 |
| 26 | Water pump assy | 27640010091 | 1 |
| 27 | Oil separator eaaf80003 | 4190713991 | 1 |
| 28 | Grommet 84*76*4 | 27640007081 | 1 |
| 29 | U-shaped bolt 10*94*122 | 27640007091 | 1 |
| 30 | Bracket 100*35*30 | 27640011101 | 1 |
| 31 | Ambient temp sensor (Pin) | 4190709588 | 1 |
| 32 | Bolt GB5782-M10*65flZnyc-8.8-480 | 4011010729 | 1 |
| 33 | Special-shaped bracket | 27640005021 | 1 |
| 34 | Low temperature environment radiator assy | 27640006981 | 1 |
| 35 | Decal-filling amount lgbs-czl | 4190717786 | 1 |
| 36 | Thermal management unit nameplate | 27640010971 | 1 |
| 37 | Bolt GB5783-M8*30flznyc-8.8-480 | 4011010708 | 4 |
| 38 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 14 |
| 39 | Nut GB6170-M8flznyc-8-480 | 4013010291 | 8 |
| 40 | Bolt GB5783-M10*70flZnyc-8.8-480 | 4011011342 | 4 |
| 41 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 16 |
| 42 | Nut GB6170-M10flZnyc-8-480 | 4013010289 | 9 |
