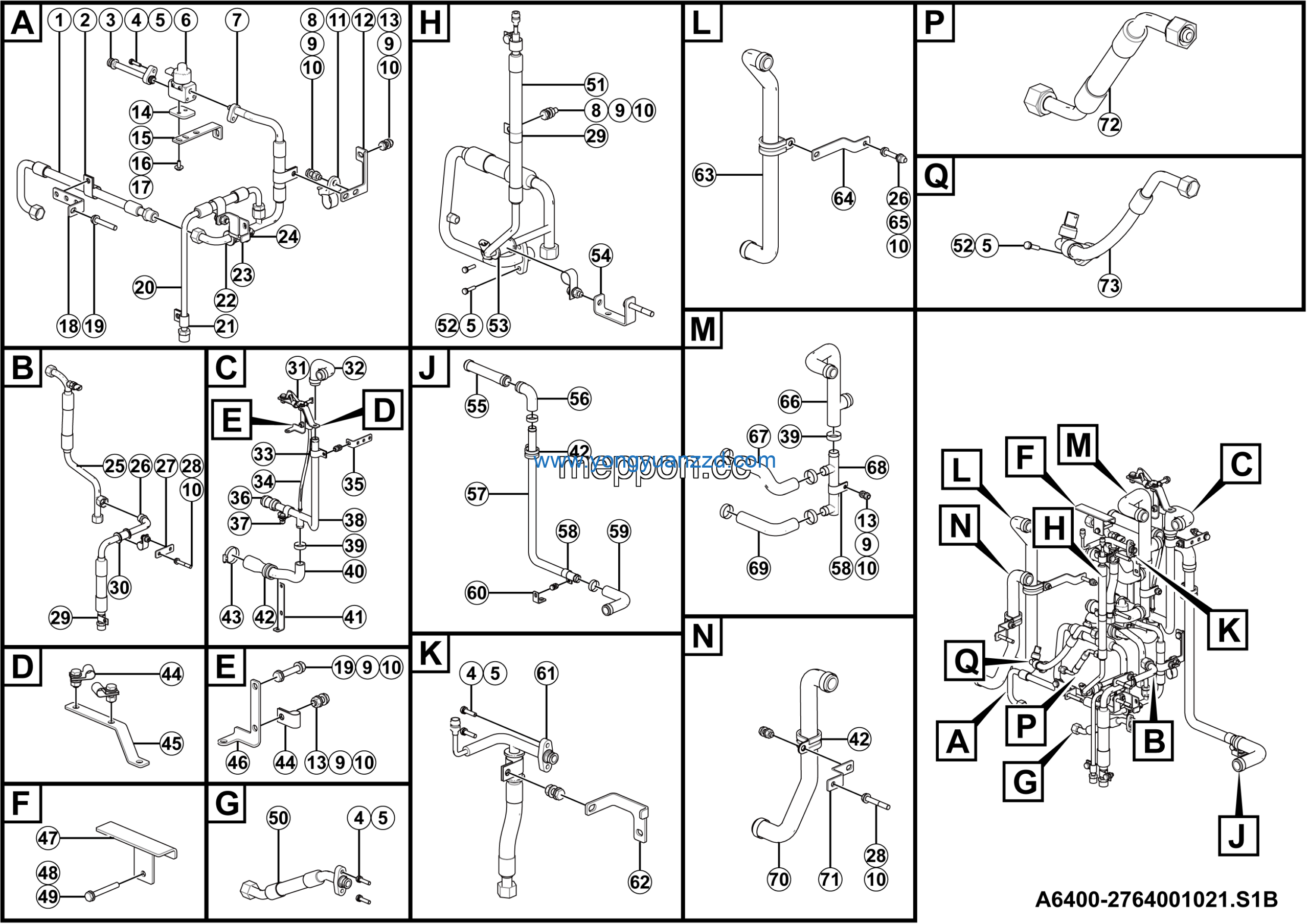

LGMG Mine Truck 2026 – Integrated thermal mgnt lines assy – A6400-2764001021.S1B
Category: 2026 > Mine Truck > MTH116 > C1160Y3A0A006
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 63 |
| 2 | Cable tie HS-J117 | 4130704969 | 1 |
| 3 | Bracket 95*82*4 | 27640011391 | 1 |
| 4 | Bolt GB5783-M10*25flznyc-8.8-480 | 4011010722 | 24 |
| 5 | Rubber 50*40*5 | 27640000061 | 1 |
| 6 | Bracket 130*35*25 | 27640007131 | 1 |
| 7 | Bolt GB5783-M6*16flZnyc-8.8-480 | 4011010747 | 1 |
| 8 | Washer GB96.1-6flZnyc-300HV-480 | 4015010296 | 1 |
| 9 | Bracket 95*35*25 | 27640008621 | 1 |
| 10 | Bolt GB5783-M10*60flZnyc-8.8-480 | 4011010977 | 4 |
| 11 | Hose (reservoir-expansion valve) pskt105g-063 | 4190714902 | 1 |
| 12 | Hose (reservoir-cab expansion valve) pskt105g-064 | 4190714904 | 1 |
| 13 | Clamp R-D18-M10 | 4190707968 | 1 |
| 14 | Grommet 25*17*4 | 27640007182 | 2 |
| 15 | Bracket wldmt | 27640008671 | 1 |
| 16 | Washer GB96.1-10flZnyc-300HV-480 | 4015010278 | 1 |
| 17 | Hose (plate type heat exchanger-gas/liquid separator) pskt105g-067 | 4190714908 | 1 |
| 18 | Hose (cab-gas/liquid separator) pskt105g-066 | 4190714905 | 1 |
| 19 | Bracket 83*25*4 | 27640009021 | 1 |
| 20 | Bolt GB5782-M10*65flZnyc-8.8-480 | 4011010729 | 5 |
| 21 | Pipe clamp R-D24-M10 | 4190707970 | 4 |
| 22 | Clamp R-D26-M10 | 4190707971 | 6 |
| 23 | Grommet 29*21*4 | 27640009042 | 1 |
| 24 | Hose clamp JB8870-D12 | 4017000040 | 2 |
| 25 | Hose 25*5*290 | 27640002632 | 1 |
| 26 | Clamp R-D32-M10 | 4190707972 | 2 |
| 27 | Exhaust hose (with water valve) 5*1.5*810 | 4190710866 | 1 |
| 28 | Bracket 95*35*25 | 27630000611 | 1 |
| 29 | Pipe | 27030153352 | 1 |
| 30 | Circular plate | 27030145101 | 1 |
| 31 | Pipe 25*1.5*685 | 27640002302 | 1 |
| 32 | Clamp φ20-φ40 | 4190708281 | 22 |
| 33 | Hose (expansion valve-plate heat exchanger) pskt150b-gj01 | 4190713996 | 1 |
| 34 | Hose 28-25*5 | 27640003712 | 1 |
| 35 | Bracket 180*34*25 | 27640005291 | 1 |
| 36 | Pipe clamp R-D40-M10 | 4190707973 | 4 |
| 37 | Hose clamp JB8870-D60 | 4017000007 | 1 |
| 38 | Clamp R-D16-M10 | 4190707967 | 3 |
| 39 | Bracket 195*59*25 | 27640005081 | 1 |
| 40 | Special-shaped bracket | 27640002851 | 1 |
| 41 | Bracket 80*40*140 | 27640003681 | 1 |
| 42 | Bolt GB5783-M8*60flZnyc-8.8-480 | 4011010975 | 1 |
| 43 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 1 |
| 44 | Bolt GB5783-M6*25flZnyc-8.8-480 | 4011010731 | 6 |
| 45 | Hose (condenser-reservoir) pskt105g-062 | 4190714901 | 1 |
| 46 | Hose (gas/liquid separator-compressor) pskt105g-068 | 4190714907 | 1 |
| 47 | Bolt GB5783-M6*25EpZn-8.8 | 4011000276 | 3 |
| 48 | Grommet 23*15*4 | 27640007172 | 1 |
| 49 | Bracket 90*25*4 | 27640008981 | 1 |
| 50 | Hose 28-25*5 | 27640002412 | 1 |
| 51 | Hose 28*5*127 | 27640002602 | 1 |
| 52 | Pipe 28*1.5*767 | 27640002612 | 1 |
| 53 | Reinforced clamp R1-D30-M10 | 4190707981 | 2 |
| 54 | Hose 28*5 | 27030160141 | 1 |
| 55 | Double sack wedge lock washer HF6 | 4190708407 | 9 |
| 56 | Bracket 44*44*25 | 27640000681 | 1 |
| 57 | Hose (oil separator-condenser) pskt150b-065 | 4190713994 | 1 |
| 58 | Special-shaped bracket | 27640007161 | 1 |
| 59 | Hose 25*5*690 | 27640010231 | 1 |
| 60 | Bracket 146*25*4 | 27640011691 | 1 |
| 61 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 1 |
| 62 | Hose 28-25*5 | 27640002832 | 1 |
| 63 | Hose 25*5*232 | 27640007111 | 1 |
| 64 | Pipe 28*1.5*200 | 27640007101 | 1 |
| 65 | Hose 25*5*210 | 27640007121 | 1 |
| 66 | ELEK expansion valve（Bipolar 12V） | 4130705916 | 1 |
| 67 | Hose 25*5*505 | 27640010221 | 1 |
| 68 | Bracket 110*35*25 | 27640010201 | 1 |
| 69 | Hose (oil separator-compressor) pskt105g-061 | 4190714909 | 1 |
| 70 | Hose (compressor-oil separator) pskt105g-060 | 4190714906 | 1 |
| 71 | Hose (reservoir-battery expansion valve) pskt105g-065 | 4190714903 | 1 |
| 72 | Bolt GB5783-M10*30flznyc-8.8-480 | 4011010707 | 3 |
| 73 | Nut GB6170-M10flZnyc-8-480 | 4013010289 | 29 |
