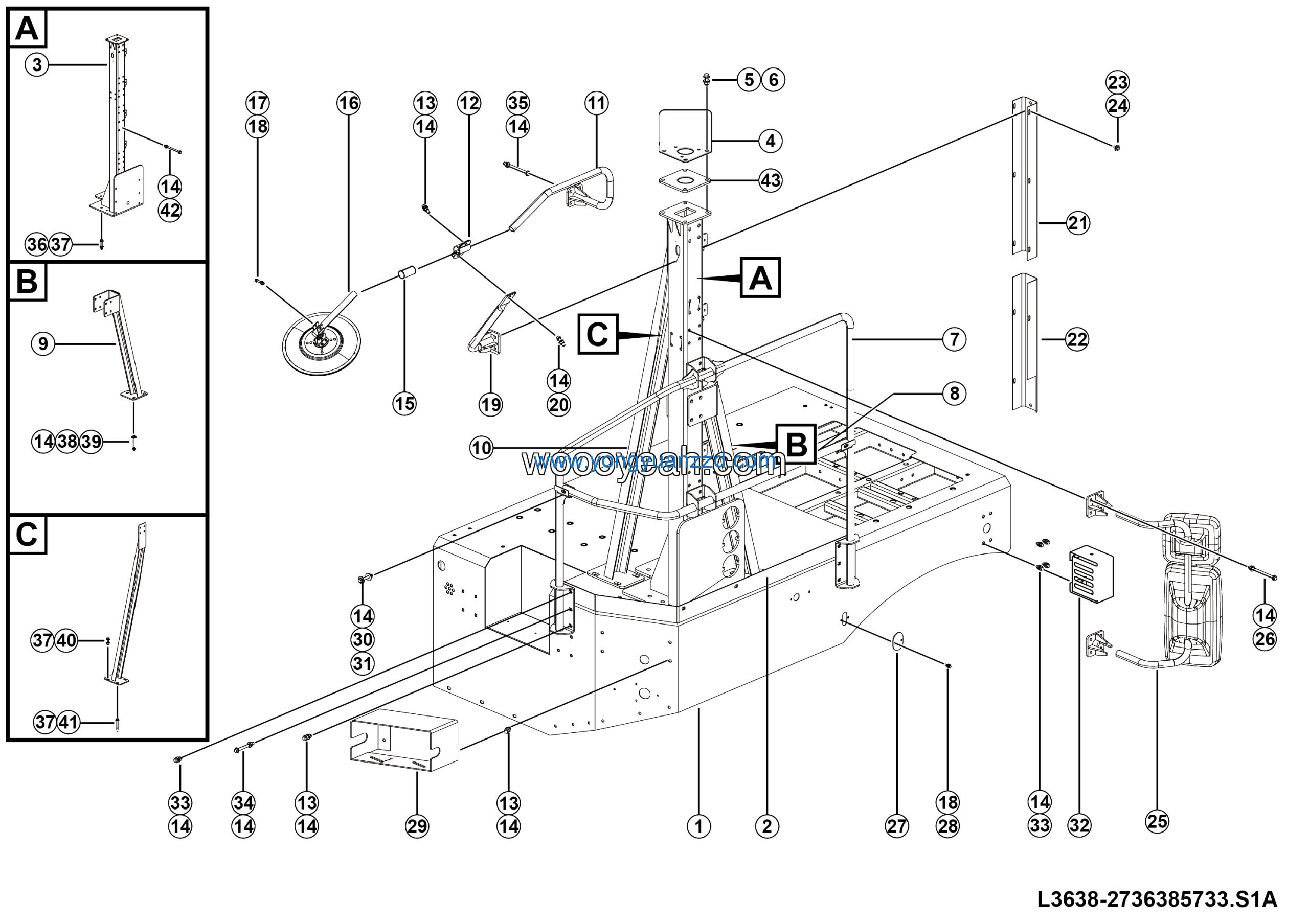

LGMG Mine Truck 2026 – Lh walkway assy – L3638-2736385733.S1A
Category: 2026 > Mine Truck > MTH126M > C1260Y3A0A206
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Column stiffener wldmt | 27360228371 | 1 |
| 2 | Bracket wldmt | 27360244871 | 1 |
| 3 | Pipe clamp | 27360198831 | 2 |
| 4 | Bolt GB16674.1-M10*30flZnyc-8.8-480 | 4011010712 | 9 |
| 5 | Nut gb6187.1-m10flznyc-8-480 | 4013010628 | 61 |
| 6 | Rubber strip | 27360197631 | 3 |
| 7 | Rearview mirror sl-723b | 4190711961 | 1 |
| 8 | Bolt GB16674.1-M6*40flZnyc-8.8-480 | 4011011524 | 1 |
| 9 | Nut GB6187.1-M6flZnyc-8-480 | 4013010542 | 3 |
| 10 | Lh bracket wldmt | 27360244891 | 1 |
| 11 | Lh walkway wldmt | 27363857341 | 1 |
| 12 | Bolt GB16674.1-M10*35flZnyc-8.8-480 | 4011011104 | 4 |
| 13 | Guard 1350*84*62 | 27360200661 | 1 |
| 14 | Guard | 27360225171 | 1 |
| 15 | Bolt GB16674.1-M8*16flZnyc-8.8-480 | 4011010964 | 9 |
| 16 | Washer GB96.1-8flZnyc-300HV-480 | 4015010289 | 9 |
| 17 | Lh rearview mirror installation | 27360228651 | 1 |
| 18 | Bolt gb16674.1-m10*130flznyc-8.8-480 | 4011011907 | 20 |
| 19 | Cover plate | 27363836041 | 1 |
| 20 | Bolt GB16674-M6*20flznyc-8.8 | 4011010757 | 2 |
| 21 | Plate | 27360126373 | 1 |
| 22 | Lh guard 1117.5*522.5*70 | 27360215831 | 1 |
| 23 | Bolt GB16674.1-M10*60flZnyc-8.8-480 | 4011011093 | 2 |
| 24 | Washer GB96.1-10flZnyc-300HV-480 | 4015010278 | 16 |
| 25 | Support | 27360121251 | 1 |
| 26 | Bolt GB16674.1-M10*25flZnyc-8.8-480 | 4011011015 | 8 |
| 27 | Bolt gb16674.1-m10*90flznyc-8.8-480 | 4011011905 | 4 |
| 28 | Bolt gb16674.1-m10*120flznyc-8.8-480 | 4011011906 | 8 |
| 29 | Bolt gb5789-m14*80flznyc-8.8-480 | 4011011926 | 4 |
| 30 | Nut gb6187.1-m14flznyc-8-480 | 4013010631 | 8 |
| 31 | Bolt gb16674.1-m10*110flznyc-8.8-480 | 4011012005 | 2 |
| 32 | Washer GB96.1-12flZnyc-300HV-480 | 4015010286 | 3 |
| 33 | Lh column wldmt | 27363846471 | 1 |
| 34 | Bolt gb5789-m14*50flznyc-8.8-480 | 4011011924 | 2 |
| 35 | Bolt gb5789-m14*110flznyc-8.8-480 | 4011011983 | 2 |
| 36 | Bolt gb16674.1-m10*140flznyc-8.8-480 | 4011012016 | 4 |
| 37 | Plate 150*150*12 | 27363846731 | 1 |
| 38 | Mounting plate 208*150*5 | 27363846601 | 1 |
| 39 | BOLT | 4011011207 | 3 |
| 40 | Nut gb6187.1-m12flznyc-8-480 | 4013010629 | 3 |
| 41 | Lh guardrail wldmt | 27360215531 | 1 |
| 42 | Crossbeam wldmt | 27360215131 | 1 |
| 43 | Lh column wldmt | 27360228491 | 1 |
