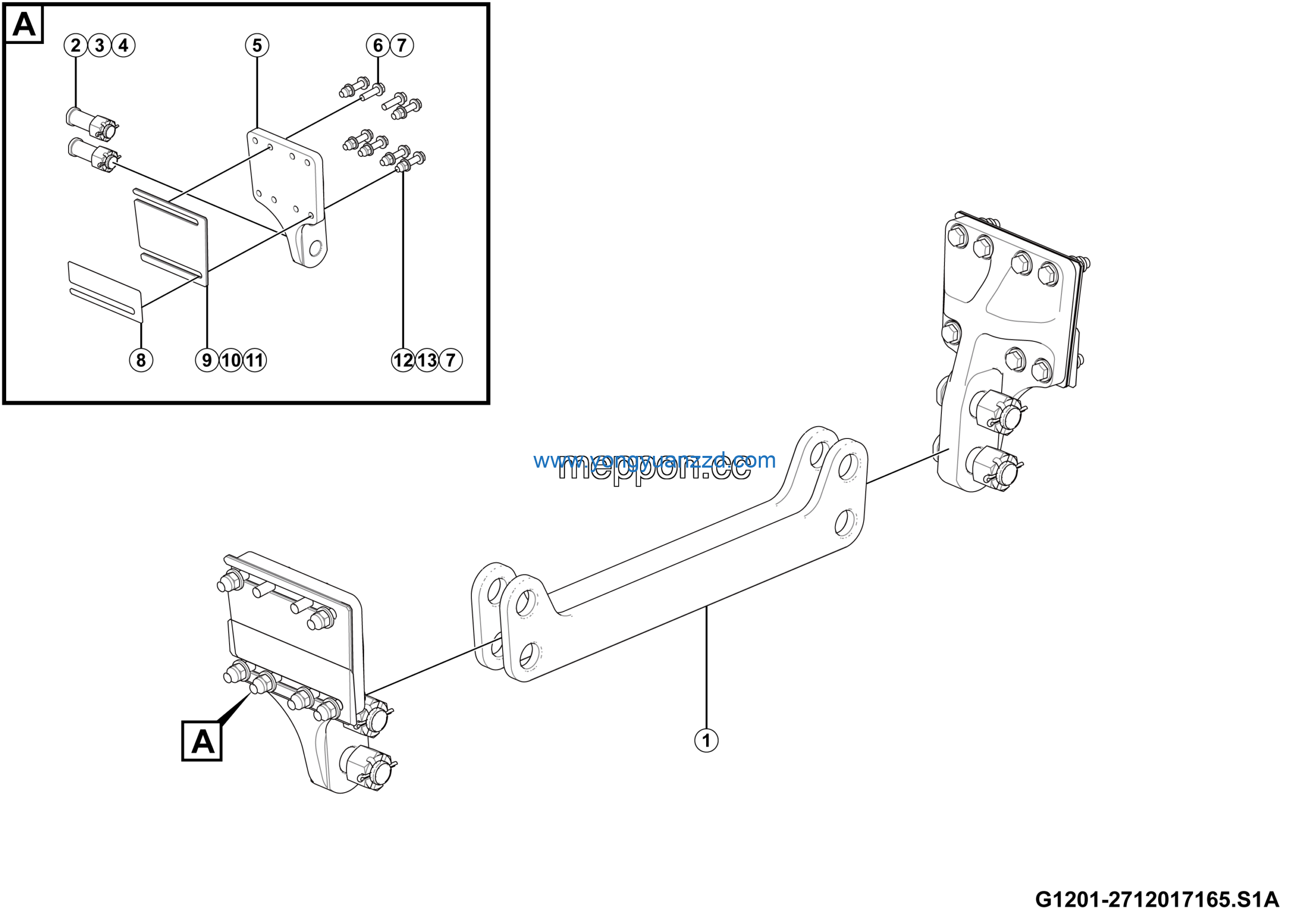

LGMG Mine Truck 2026 – Palte – G1201-2712017165.S1A
Category: 2026 > Mine Truck > MT106 > M1060W3E0M048
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Adjusting shim | 27120114781 | 2 |
| 2 | Adjusting shim | 27120123461 | 2 |
| 3 | Bolt GB5782-M16*80flZnyc-12.9-480 | 4011010614 | 12 |
| 4 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 12 |
| 5 | Second beam pole | 27120122481 | 2 |
| 6 | Pin40*80 | 27120123391 | 4 |
| 7 | Nut GB6178-M36EpZn-10 | 4013010114 | 4 |
| 8 | Pin GB91-6.3*63EpZn-Q235A | 4016000113 | 4 |
| 9 | Second beam seat | 27120122491 | 2 |
| 10 | Bolt GB5786-M16*1.5*60flZnyc-12.9-480 | 4011010585 | 4 |
| 11 | Washer GB1230-16-45 | 4015010101 | 28 |
| 12 | Adjustment gasket | 27120117822 | 2 |
| 13 | Adjusting shim | 27120114771 | 2 |
