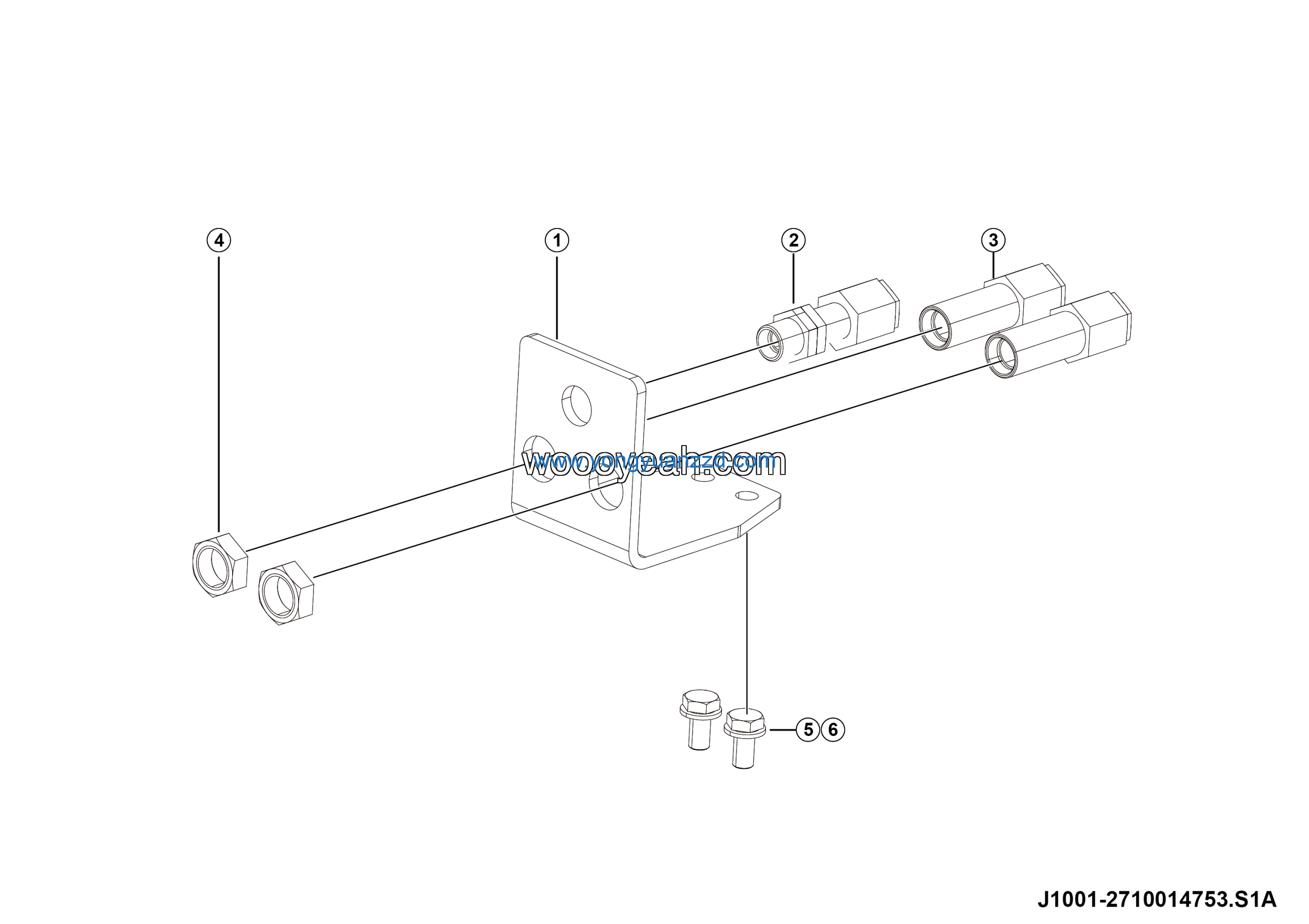

LGMG Mine Truck 2026 – Rear axle bulkhead fitting bracket assy – J1001-2710014753.S1A
Category: 2026 > Mine Truck > RTH100 > R1000Y3A0A239
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Rear axle bulkhead fitting bracket 121*100*80 | 27100147541 | 1 |
| 2 | Nipple | 27100118011 | 1 |
| 3 | Bulkhead joint L15 NG12 | 4120713609 | 2 |
| 4 | NUT | 27150102951 | 2 |
| 5 | Bolt GB5783-M10*20flZnyc-8.8-480 | 4011010748 | 2 |
| 6 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 2 |
