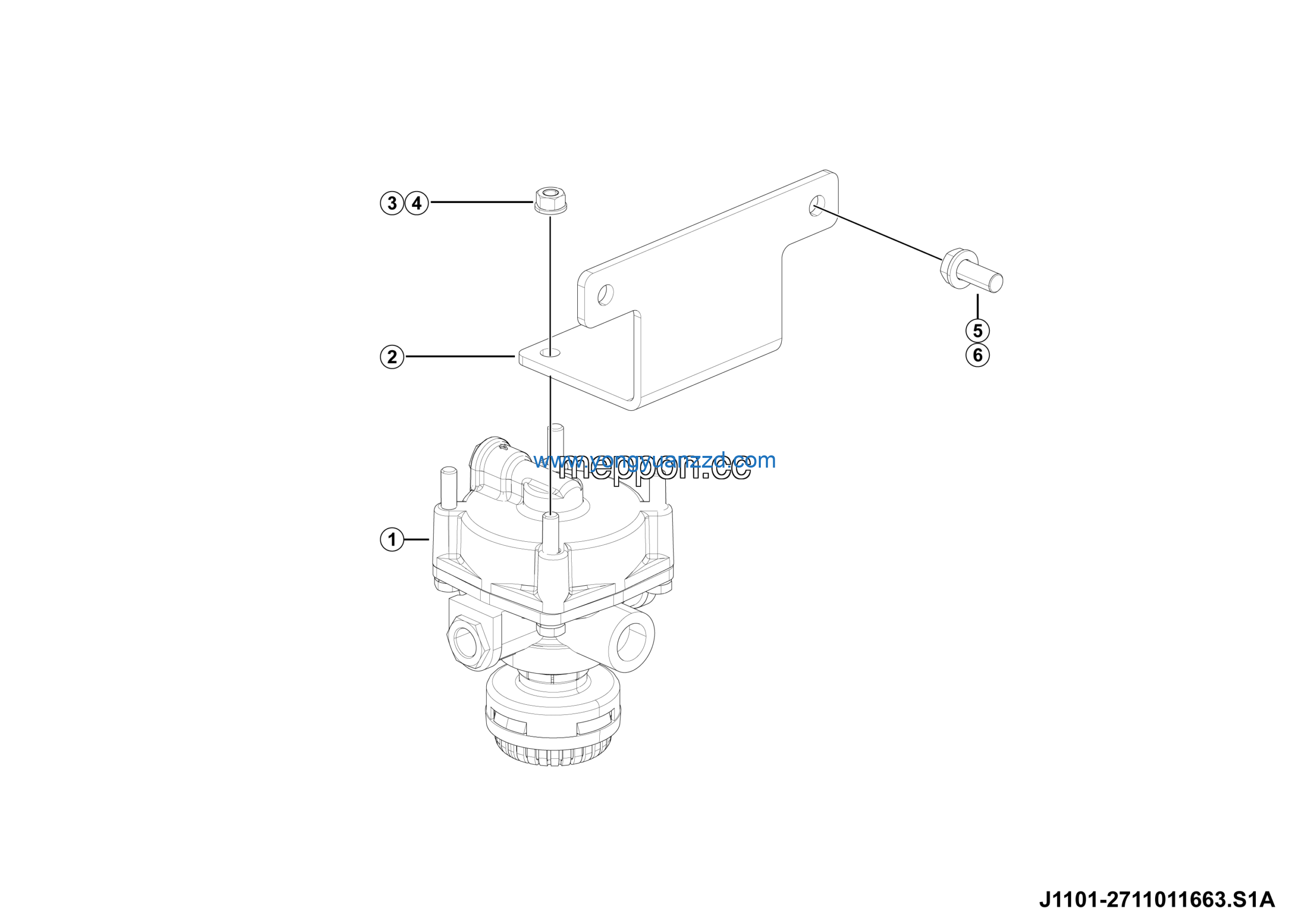

LGMG Mine Truck 2026 – Relay valve assy – J1101-2711011663.S1A
Category: 2026 > Mine Truck > RTH100 > R1000Y3A0A243
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Relay valve | 4120001087 | 1 |
| 2 | Relay valve retaining plate 180*90*90 | 27100129461 | 1 |
| 3 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 2 |
| 4 | Nut GB6170-M8flznyc-8-480 | 4013010291 | 2 |
| 5 | Bolt GB5783-M10*25flznyc-8.8-480 | 4011010722 | 2 |
| 6 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 2 |
