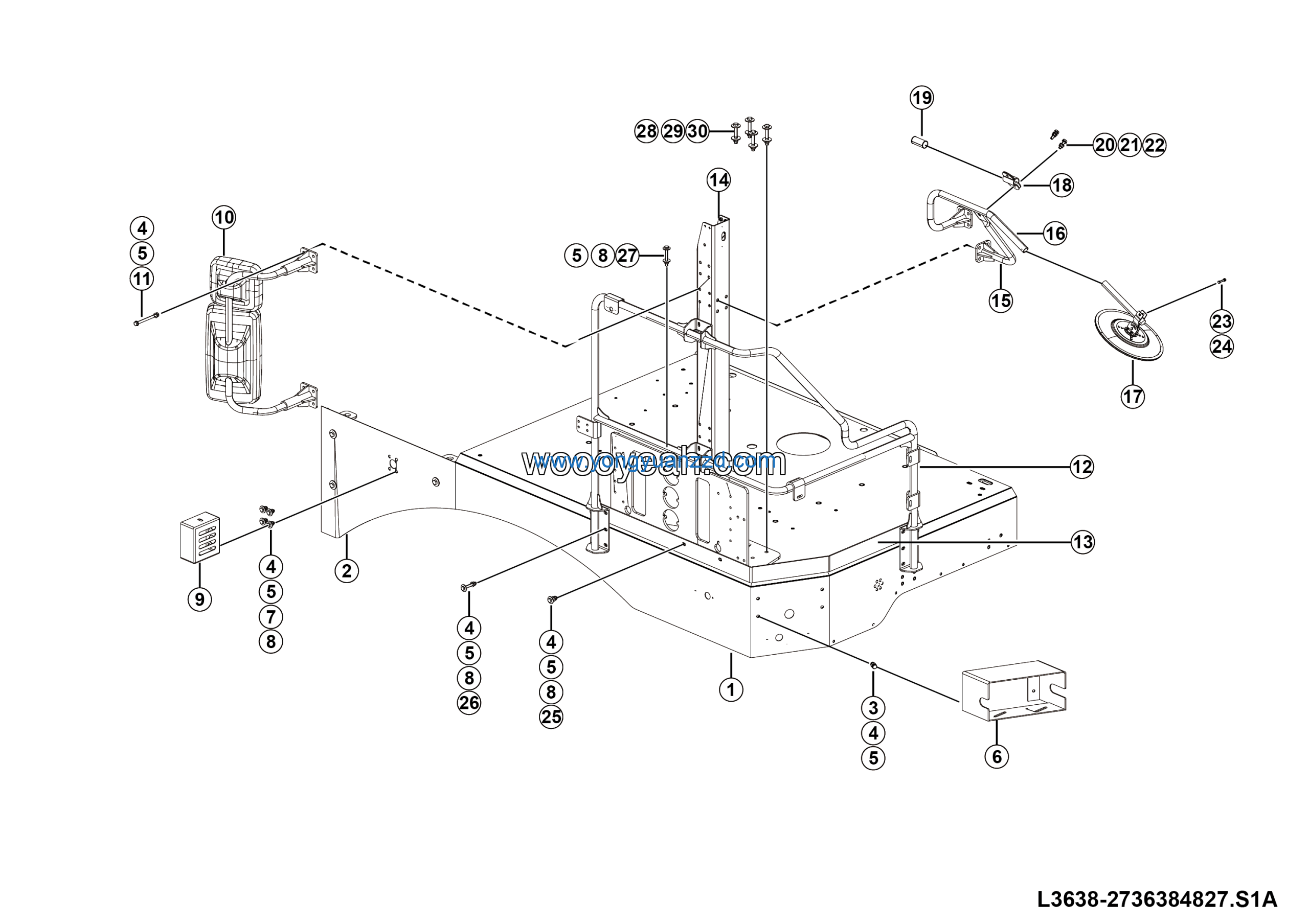

LGMG Mine Truck 2026 – Rh walkway assy – L3638-2736384827.S1A
Category: 2026 > Mine Truck > RTH100 > R1000Y3A0A242
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Rh rearview mirror installation | 27360219281 | 1 |
| 2 | Bolt GB5782-M10*125flZnyc-8.8-480 | 4011011182 | 24 |
| 3 | Rh handrail wldmt | 27360242551 | 1 |
| 4 | Rh guard 1131*823.5*70*5 | 27360210321 | 1 |
| 5 | Rh rearview mirror column wldmt | 27363848301 | 1 |
| 6 | Rh rearview mirror bracket wldmt | 27360241281 | 1 |
| 7 | Rh rearview mirror bracket wldmt | 27360241291 | 1 |
| 8 | Rearview mirror sl-723b | 4190711961 | 1 |
| 9 | Pipe clamp | 27360241311 | 2 |
| 10 | Rubber strip | 27360241841 | 1 |
| 11 | Rh walkway wldmt | 27363848281 | 1 |
| 12 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 2 |
| 13 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 14 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 2 |
| 15 | Bolt GB5783-M6*35flZnyc-8.8-480 | 4011010998 | 1 |
| 16 | Nut GB6185.1-M6flZnyc-8-480 | 4013010414 | 1 |
| 17 | Bolt GB5783-M10*35flZnyc-8.8-480 | 4011010727 | 6 |
| 18 | Bolt GB5783-M10*70flZnyc-8.8-480 | 4011011342 | 4 |
| 19 | Bolt gb5783-m10*80flznyc-8.8-480 | 4011011658 | 1 |
| 20 | Bolt GB5782-M12*80flZnyc-10.9-480 | 4011011763 | 4 |
| 21 | Nut GB6185.1-M12flZnyc-10-480 | 4013010379 | 4 |
| 22 | Rh walkway extension installation | 27363848311 | 1 |
| 23 | Washer GB96.1-12flZnyc-300HV-480 | 4015010286 | 8 |
| 24 | Bolt GB5783-M10*30flznyc-8.8-480 | 4011010707 | 7 |
| 25 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 66 |
| 26 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 47 |
| 27 | Plate | 27360126393 | 1 |
| 28 | Bolt GB5783-M10*25flznyc-8.8-480 | 4011010722 | 5 |
| 29 | Washer GB96.1-10flZnyc-300HV-480 | 4015010278 | 28 |
| 30 | Rearward illumination light shield | 27360167361 | 1 |
