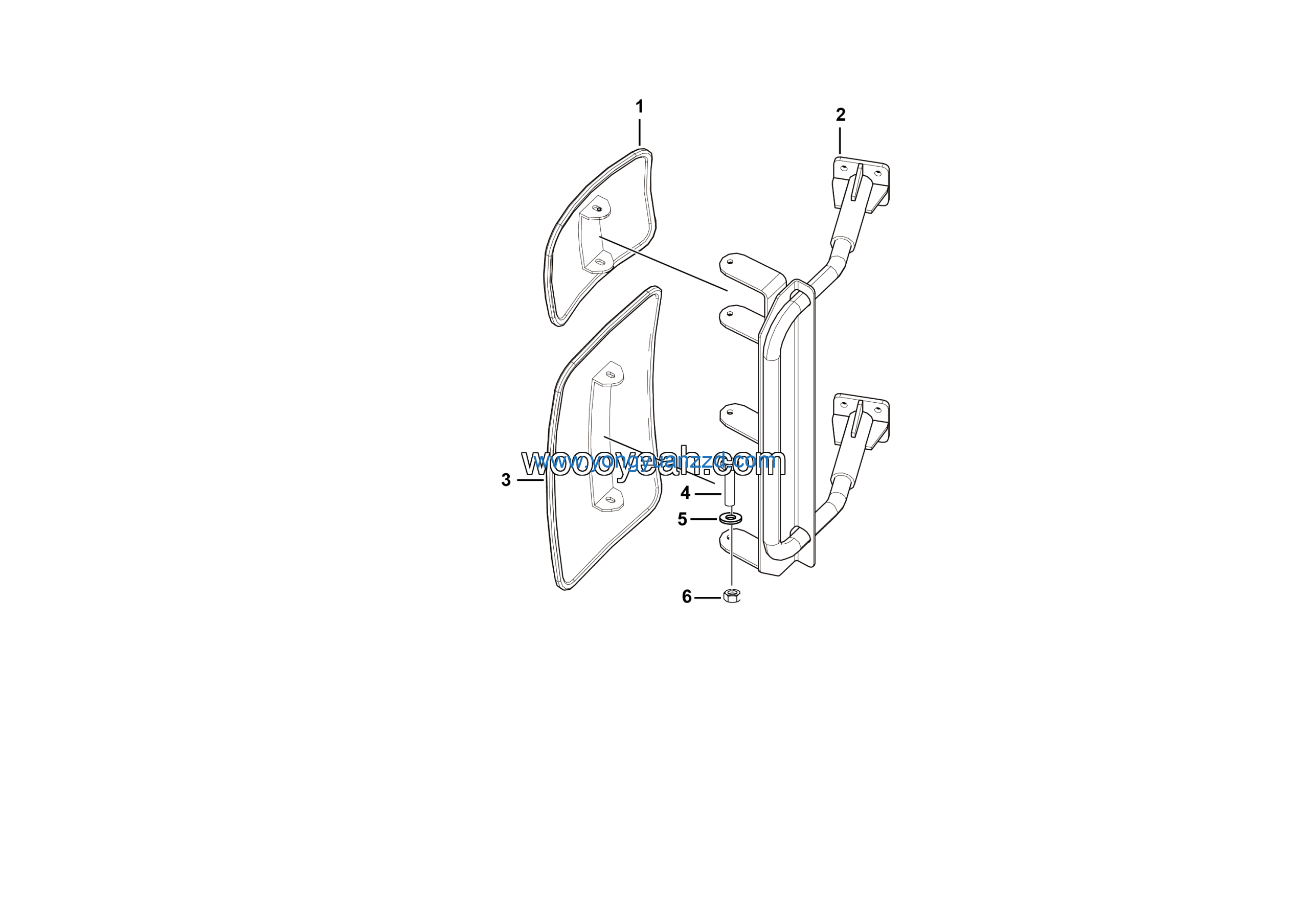

LGMG Mine Truck 2026 – Right rear mirror installation assy – L3600-2736012190
Category: 2026 > Mine Truck > CMT106 > C1060Y3E0A105
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Wide angle rearview mirror | 4190001366 | 1 |
| 2 | Right mirror support | 27360121911 | 1 |
| 3 | Main external rearview mirror | 4190001365 | 1 |
| 4 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 4 |
| 5 | Washer GB96.1-8EpZn-300HV | 4015000256 | 4 |
| 6 | Nut GB6170-M8EpZn-8 | 4013000033 | 4 |
