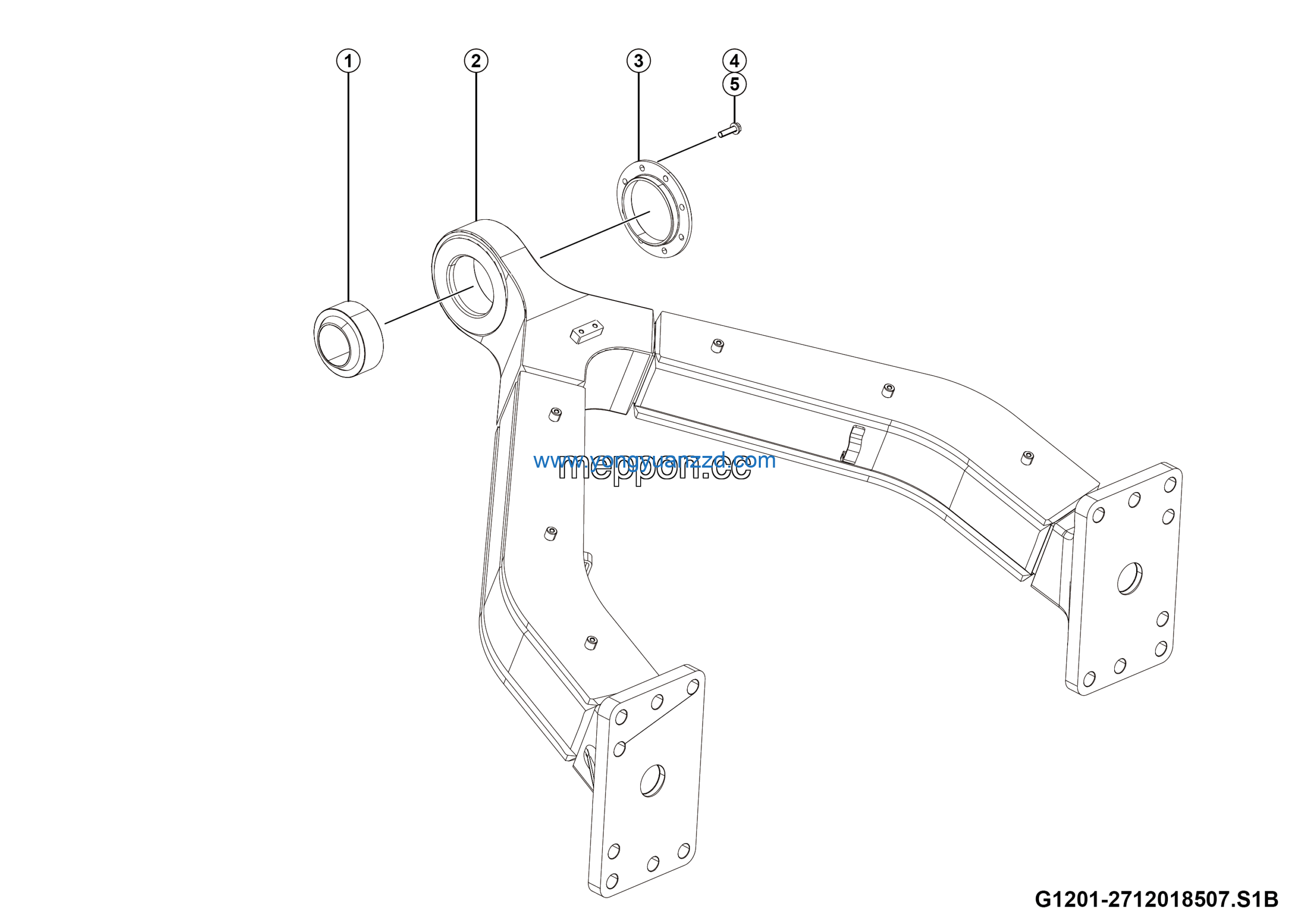

LGMG Mine Truck 2026 – Rr axle a-frame assy – G1201-2712018507.S1B
Category: 2026 > Mine Truck > RTH100 > R1000Y3A0A239
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | bear GB9163-GEG90ES-2RS | 4021010005 | 1 |
| 2 | Rr axle a-frame wldmt | 27120185091 | 1 |
| 3 | A grame flange | 27120169431 | 1 |
| 4 | Bolt GB5783-M12*45flZnyc-12.9-480 | 4011010923 | 8 |
| 5 | Washer GB1230-12flZnyc-45-480 | 4015010377 | 8 |
