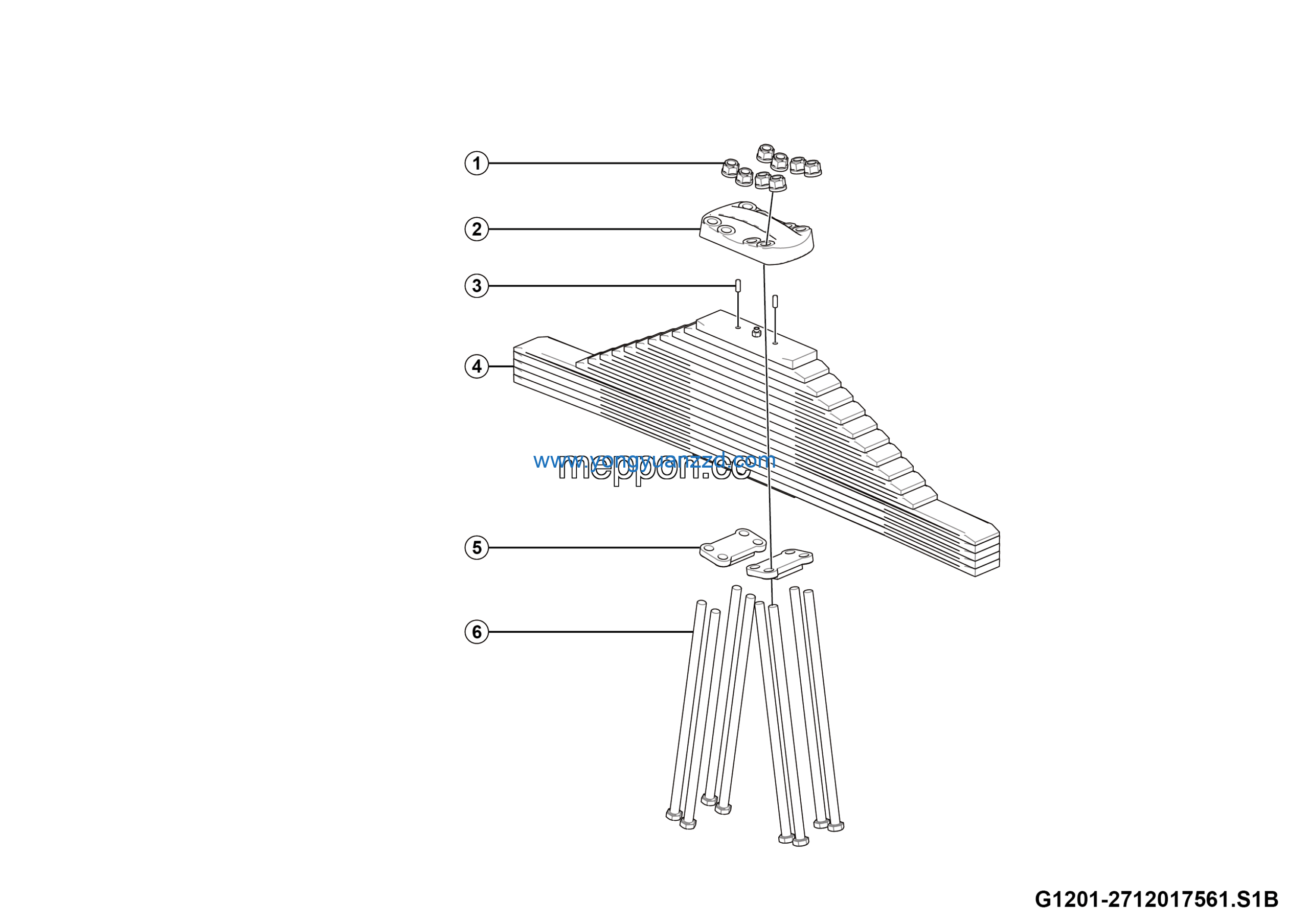

LGMG Mine Truck 2026 – Rr leaf spring installation – G1201-2712017561.S1B
Category: 2026 > Mine Truck > MTH126M > C1260Y3A0A207
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Six angle with the shoulder self-locking nut | 27120173141 | 8 |
| 2 | 1 | 27120173302 | 1 |
| 3 | Locating pin | 27120175621 | 2 |
| 4 | RR leaf spring assy LG12-16*5*140*30 | 4110706487 | 1 |
| 5 | 1 | 27120173313 | 2 |
| 6 | 1 | 27120173322 | 8 |
