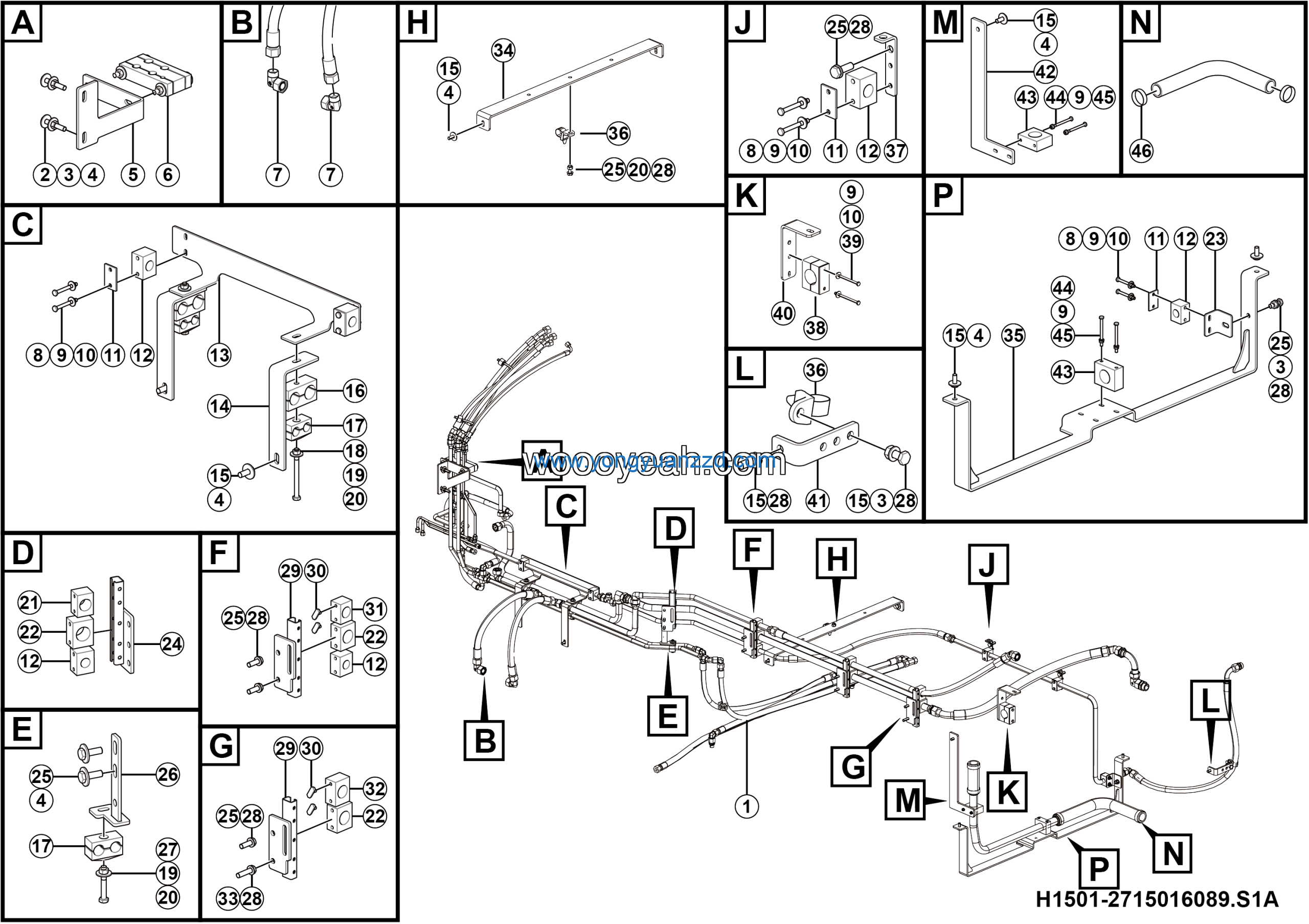

LGMG Mine Truck 2026 – Steering accessory assy – H1501-2715016089.S1A
Category: 2026 > Mine Truck > RTH100 > R1000Y3A0A239
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB96.1-6flZnyc-300HV-480 | 4015010296 | 12 |
| 2 | Cover plate TL-G3 | 4120713171 | 5 |
| 3 | Pipe clamp TLPG-320 | 4120704816 | 7 |
| 4 | Fixing plate 520*95*80 | 27150160951 | 1 |
| 5 | Bracket 207*95*40 | 27150153101 | 2 |
| 6 | Bolt GB5783-M10*25flznyc-8.8-480 | 4011010722 | 9 |
| 7 | Double-pipe clamp 28-25 | 27150133761 | 2 |
| 8 | Clamp TTPG4-218 | 4120708222 | 3 |
| 9 | Bolt GB5782-M8*100flZnyc-8.8-480 | 4011011002 | 2 |
| 10 | Nut GB6170-M8flznyc-8-480 | 4013010291 | 3 |
| 11 | Steering line assy | 27150160901 | 1 |
| 12 | Washer GB96.1-8flZnyc-300HV-480 | 4015010289 | 3 |
| 13 | Tube clamp TLPG12-325 | 4120712119 | 1 |
| 14 | Tube clamp TLPG12-430 | 4120709341 | 4 |
| 15 | Plate 60*53.5*45 | 27150156771 | 1 |
| 16 | Rail wldmt | 27150143591 | 1 |
| 17 | Bolt GB5783-M10*30flznyc-8.8-480 | 4011010707 | 11 |
| 18 | Bracket wldmt | 27150156741 | 1 |
| 19 | Bolt GB5782-M8*55flZnyc-8.8-480 | 4011010919 | 1 |
| 20 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 12 |
| 21 | Rail wldmt | 27150145931 | 3 |
| 22 | Bolt GB5783-M10*60flZnyc-8.8-480 | 4011010977 | 2 |
| 23 | Rail nut tl-f | 4120720142 | 6 |
| 24 | Pipe clamp TLPG-325 | 4120712636 | 1 |
| 25 | Single-hole pipe clamp tlpg-428 | 4120719722 | 2 |
| 26 | Bolt GB5783-M10*40flZnyc-8.8-480 | 4011010706 | 1 |
| 27 | Bracket 844*60*56 | 27150157631 | 1 |
| 28 | Bracket wldmt | 27150156721 | 1 |
| 29 | Cable tie HS-J117 | 4130704969 | 2 |
| 30 | L-bracket 100*30*20 | 27150156791 | 2 |
| 31 | Single-port pipe clamp-43 | 27150155301 | 1 |
| 32 | Bolt GB5782-M6*85flZnyc-8.8-480 | 4011011732 | 2 |
| 33 | Nut GB6170-M10flZnyc-8-480 | 4013010289 | 5 |
| 34 | Bracket 180*120*50 | 27150157681 | 1 |
| 35 | L-bracket | 27100122922 | 1 |
| 36 | Plate 380*155*8 | 27150157641 | 1 |
| 37 | Tube clamp TLPG12-535 | 4120709342 | 2 |
| 38 | Bolt GB5782-M6*75flZnyc-8.8-480 | 4011011080 | 4 |
| 39 | Washer GB97.1-6flZnyc-300HV-480 | 4015010284 | 4 |
| 40 | Butterfly spring clamp φ45-φ67 | 4190708161 | 2 |
| 41 | Washer GB96.1-10flZnyc-300HV-480 | 4015010278 | 13 |
| 42 | Bracket | 27150143691 | 1 |
| 43 | Pipe clamp assy | 27150146451 | 1 |
| 44 | Combination joint LGB143-03019 | 4041001262 | 2 |
| 45 | Bolt GB5782-M6*55flZnyc-8.8-480 | 4011010920 | 10 |
| 46 | Nut GB6170-M6flZnyc-8-480 | 4013010293 | 16 |
