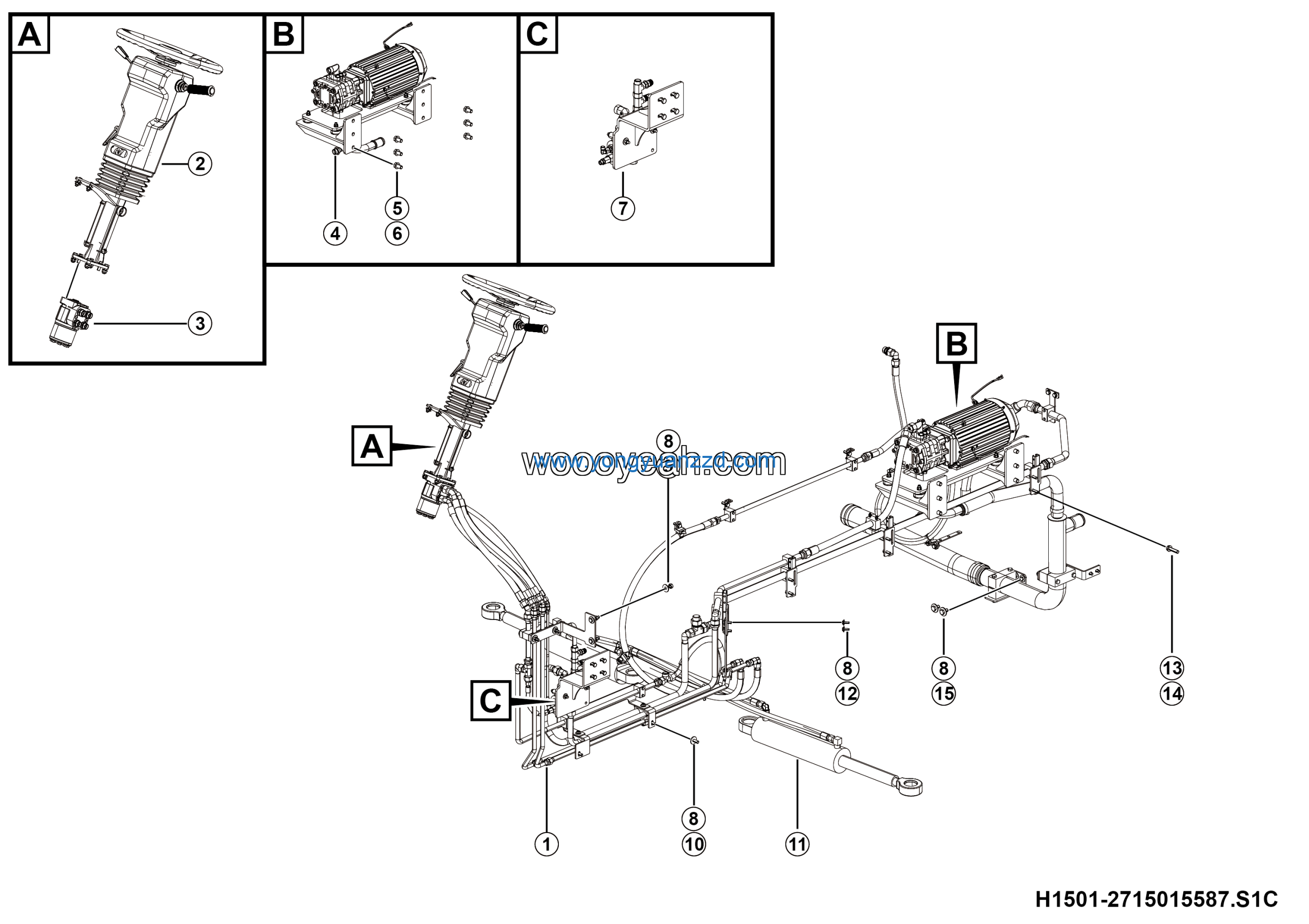

LGMG Mine Truck 2026 – Steering assy – H1501-2715015587.S1C
Category: 2026 > Mine Truck > RTH100 > R1000Y3A0A244
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M10*25flznyc-8.8-480 | 4011010722 | 2 |
| 2 | Steering cylinder hsgl-90*50*355-720 | 4120719870 | 2 |
| 3 | Bolt GB5783-M10*30flznyc-8.8-480 | 4011010707 | 5 |
| 4 | Bolt GB5783-M10*40flZnyc-8.8-480 | 4011010706 | 1 |
| 5 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 4 |
| 6 | Bolt GB5783-M10*20flZnyc-8.8-480 | 4011010748 | 2 |
| 7 | Steering accessory assy | 27150156071 | 1 |
| 8 | Steering wheel assy | 27150146891 | 1 |
| 9 | Steering gear assembly | 27150126351 | 1 |
| 10 | Pump & motor assy | 27150156161 | 1 |
| 11 | Bolt GB5783-M16*30flZnyc-10.9-480 | 4011011433 | 6 |
| 12 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 6 |
| 13 | Priority valve assy | 27150156051 | 1 |
| 14 | Washer GB96.1-10flZnyc-300HV-480 | 4015010278 | 8 |
| 15 | Nut GB6170-M10flZnyc-8-480 | 4013010289 | 2 |
