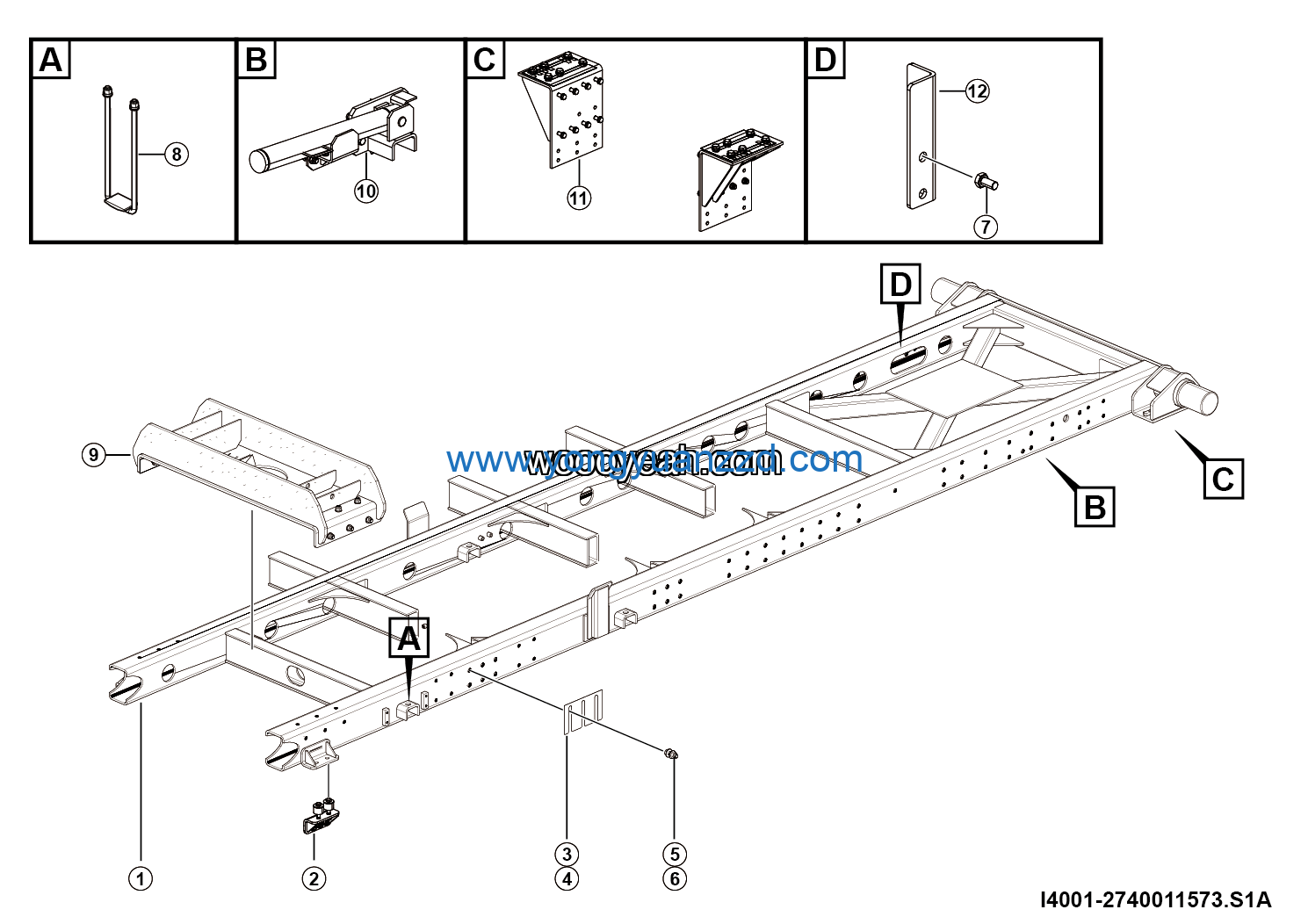

LGMG Mine Truck 2026 – Subframe installation – I4001-2740011573.S1A
Category: 2026 > Mine Truck > CMT96H > C096HW3E0A005
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Assembly | 27400108971 | 1 |
| 2 | Seat assembly | 27400113821 | 1 |
| 3 | PLATE | 27170128381 | 1 |
| 4 | Subframe weldment | 27400115741 | 1 |
| 5 | Plate | 27400108401 | 2 |
| 6 | Auxiliary frame | 27400110961 | 4 |
| 7 | Auxiliary frame | 27400110971 | 4 |
| 8 | Bolt QC340.2-M18*1.5*50EpZn-10.9 | 4011011598 | 82 |
| 9 | Nut GB6177.2-RLM18*1.5EpZn-10 | 4013010546 | 82 |
| 10 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 2 |
| 11 | Auxiliary frame | 27400110871 | 4 |
| 12 | Frame assembly | 27400110241 | 1 |
