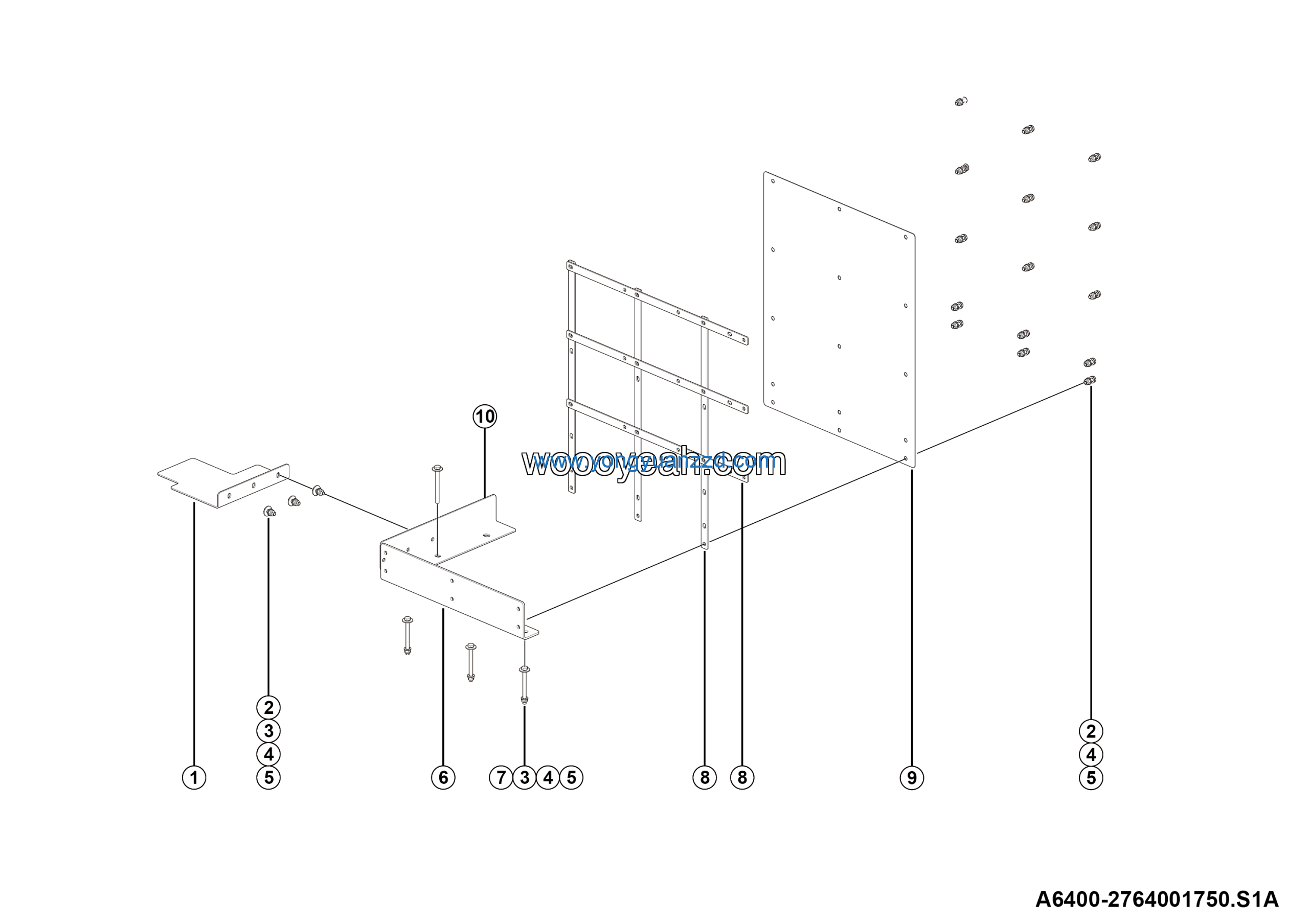

LGMG Mine Truck 2026 – Thermal management guard assy – A6400-2764001750.S1A
Category: 2026 > Mine Truck > MTH126M > C1260Y3A0A205
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bracket 472*90*4 | 27640017491 | 1 |
| 2 | Guard 400*290*50 | 27640006893 | 1 |
| 3 | Bolt GB5783-M10*30flznyc-8.8-480 | 4011010707 | 18 |
| 4 | Washer GB96.1-10flZnyc-300HV-480 | 4015010278 | 7 |
| 5 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 37 |
| 6 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 22 |
| 7 | Guard 585*90*70 | 27640006881 | 1 |
| 8 | Bolt GB5782-M10*110flZnyc-8.8-480 | 4011011204 | 4 |
| 9 | Plate strip 741*25*4 | 27640006912 | 6 |
| 10 | Guard 749*620*2 | 27640006901 | 1 |
